5315-00-288-2550
Headless Grooved Pin
5315002882550 002882550 7-64X1-2TYPE C 2503040-7
A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE. View more Headless Grooved Pin
May 2023
5
Marketplace 5315-00-288-2550
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-288-2550 3+ Documents (More...)
(Identification) 1/2 NSN 5315-00-288-2550 (Identification) 3/2 - - 1.
PIN,GROOVED,HEADLESS 12 EA NS Request Quotation Updated Every Day 5315-00-288-2550 RQST NE Updated
Headless Grooved Pin 5315002882550 002882550 Upgrade your Account Upgrade 5315-00-288-2550Headless
Grooved Pin5315002882550 002882550 7-64X1-2TYPE C 2503040 Request a Quotation from participating marketplace
Headless Grooved Pin 5315002882550 002882550 Upgrade your Account Upgrade 5315-00-288-2550Headless
Grooved Pin5315002882550 002882550 7-64X1-2TYPE C 2503040 Request a Quotation from participating marketplace
Restrictions 5315-00-288-2550
5315-00-288-2550 is a Headless Grooved Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5315-00-288-2550
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5315-00-288-2550
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5315-00-288-2550
- Part Number
- Manufacturer
- Status
- 7-64X1-2TYPE C
- Manufacturer
- 83584 - Driv-Lok Inc (Active)
- Primary Buy
- Primary Buy
- 2503040-7
- 98769 - Senior Operations Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5315-00-288-2550
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- First End Location [CRDY]
- Small End
- First End Style [AAGZ]
- Square
- Material [MATT]
- Steel Corrosion Resisting Overall
- Second End Relationship With First End [CQBB]
- Not Identical
- Second End Style [AAHP]
- Square
- Overall Length [ABHP]
- 0.502 Inches Nominal
- Pin Large End Diameter [CSCG]
- 0.109 Inches Nominal
- Pin Small End Diameter [CQFX]
- 0.107 Inches Nominal

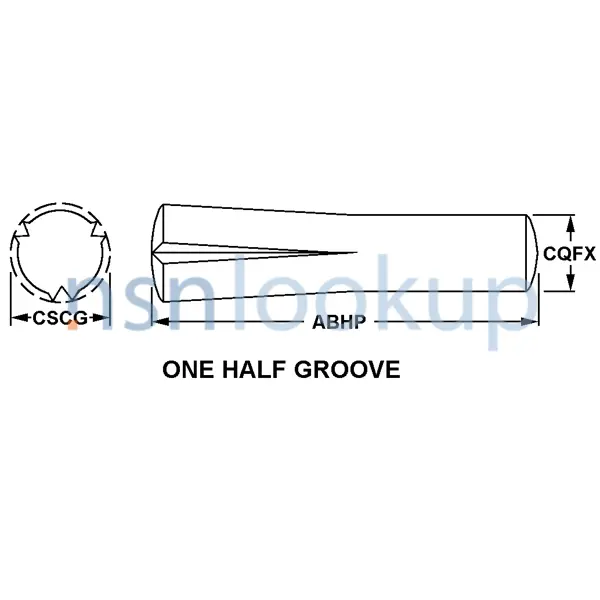

- Style Designator [STYL]
- One Half Groove
