5315-00-282-0341

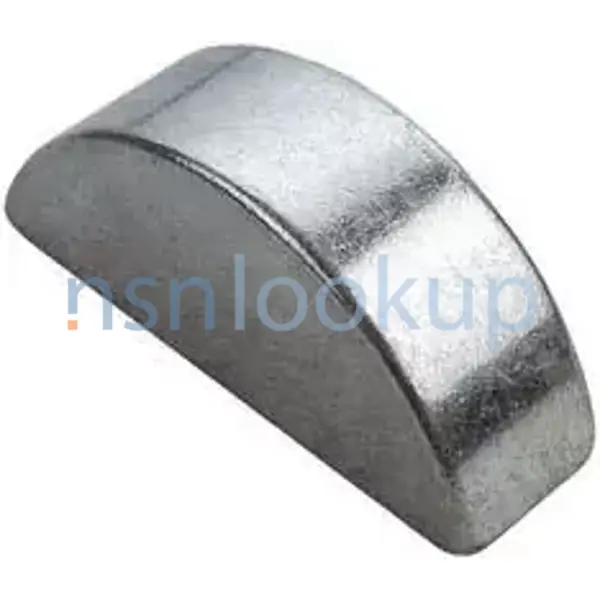

Woodruff Key
5315002820341 002820341 8761412 NKE6-3X
An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley. View more Woodruff Key
June 2025
18
Marketplace 5315-00-282-0341
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-282-0341 5+ Documents (More...)
Photo 1/2 NSN 5315-00-282-0341 (Identification) 2/2 - - 1.
Updated Every Day 5315-00-282-0341 RQST NE Updated Every Day 5315-00-282-0341 RQST Updated Every Day
Restrictions 5315-00-282-0341
5315-00-282-0341 is a Woodruff Key that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5315-00-282-0341
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5315-00-282-0341
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCL
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Feb 2012
- Greece (ZU01)
- Effective Date:
- 1 Sep 1994
- Turkey (ZW01)
- Effective Date:
- 1 Jan 2003
Approved Sources 5315-00-282-0341
- Part Number
- Manufacturer
- Status
- 8761412
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- NKE6-3X
- 01843 - Ambac International Corporation (Active)
- Primary Buy
- Primary Buy
- 5315002820341
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5315002820341
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5315-00-282-0341
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Circle Diameter [ABNL]
- 1.885 Inches Minimum And 1.900 Inches Maximum
- Hardness Rating [CQFM]
- 28.0 Rockwell C Minimum Overall And 36.0 Rockwell C Maximum Overall
- Material Document And Classification [MDCL]
- Sae Assn Std Single Material Response Overall
- Material [MATT]
- Steel Comp 1035 Overall
- Key Height [AXFE]
- 0.730 Inches Minimum And 0.750 Inches Maximum
- Key Size Designation [ACJJ]
- Nonstandard Size
- Starting Edge Shape [CSPJ]
- Round
- Starting Edge Radius [ACJH]
- 0.005 Inches Nominal
- Style Designator [STYL]
- Round Bottom
- Thickness [ABNM]
- 0.1958 Inches Minimum And 0.1968 Inches Maximum
