5315-00-227-5599
Nail
5315002275599 002275599 ASTM 1667 F1667NLSQ-3B F166703
A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails." View more Nail
August 2023
9
Marketplace 5315-00-227-5599
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-227-5599 4+ Documents (More...)
/fsg-53/fsc-5315/us
(Identification) 1/3 NSN 5315-00-227-5599 (Identification) 2/3 NSN 5315-00-227-5599 (Identification
BUY NE FedMall Updated Every Day 5315-00-227-5599 RQST NE Updated Every Day 5315-00-227-5599 RQST
Nail 5315002275599 002275599,ASTM 1667 Documents 5315-00-227-5599 1+ Documents ( More... ) https
More... ) https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-00-267-2723 Nail 5315002672723002672723,ASTM 1667
-03 ASTM 1667-03MS90710-8FFN105 A headed and pointed fastening device designed for impact insertion
Nail 5315002275599 002275599,ASTM 1667 Management https//www.nsnlookup.com /fsg-53/fsc-5315/us
5315-00-161-8843 Nail 5315001618843 001618843,ASTM F 1667 00-267-2723Nail5315002672723 002672723 ASTM 1667
Restrictions 5315-00-227-5599
5315-00-227-5599 is a Nail that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5315-00-227-5599
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Supplementary Collaborators:
- GTJN
Approved Sources 5315-00-227-5599
- Part Number
- Manufacturer
- Status
- F1667NLSQ-3B
- Manufacturer
- 81346 - American Society For Testing And (Active)
- Primary Buy
- Primary Buy
- ASTM 1667
- 81346 - American Society For Testing And (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- F166703
- 81346 - American Society For Testing And (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5315-00-227-5599
- Characteristic
- Specifications
- FIIG
- Specifications
- A04300
- Decorative Head [ACVY]
- No
- Fabrication Method [AARN]
- Cold Formed
- Fastener Length [AASB]
- 2.000 Inches Nominal

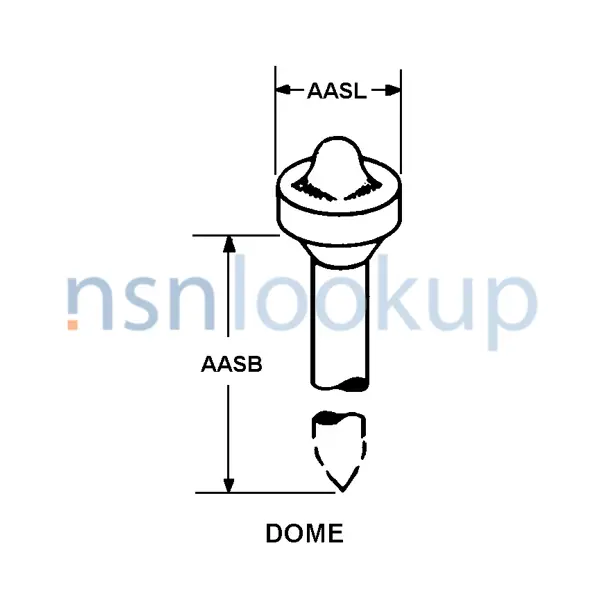

- Head Style [AASK]
- Dome
- Material [MATT]
- Steel
- Point Style [ABQJ]
- Diamond
- Shank Diameter [AAZE]
- 0.135 Inches Nominal
- Shank Style [AAZF]
- Barbed
- Sterilized [ACVQ]
- No
- Surface Treatment Location [AASD]
- Head And Shank
- Surface Treatment [SFTT]
- Lead And Zinc
DLA Procurement Analysis 5315-00-227-5599
Management Data 5315-00-227-5599
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5315-00-227-5599
Freight Information 5315-00-227-5599
5315-00-227-5599 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105840. A Sub NMFC of X. It has a NMFC Description of NAILS/SPIKES I/S NOI PLAIN ETC. 5315-00-227-5599 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54430 which rates the freight between FCL and LCL. 5315-00-227-5599 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 575 for ocean manifesting and military sealift. 5315-00-227-5599 is not classified as a special type of cargo when transported by water. 5315-00-227-5599 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-00-227-5599
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5315-00-227-5599 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
