5315-00-164-5656

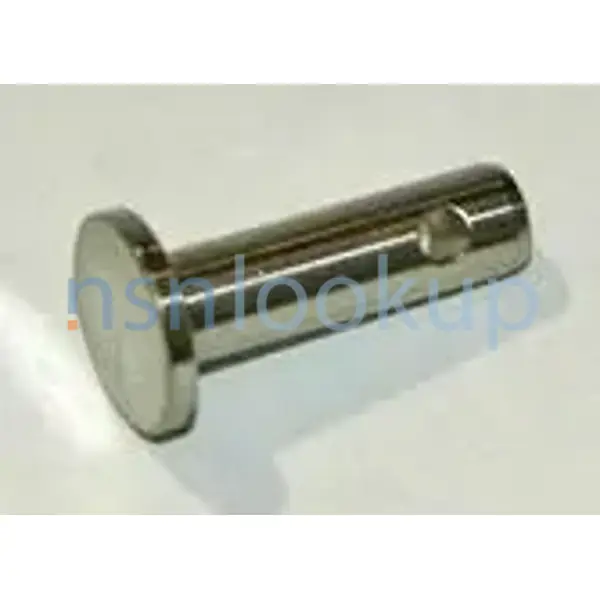

Headed Straight Pin
5315001645656 001645656 3020T97P13
A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC. View more Headed Straight Pin
May 2023
3
Marketplace 5315-00-164-5656
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-164-5656 5+ Documents (More...)
5315-00-164-5656 (Identification) 4/4 - - - - 1.
Every Day 5315-00-164-5656 RQST NE Updated Every Day 5315-00-164-5656 RQST Updated Every Day 5315-00
Headed Straight Pin Similar Supply Items to 9999-99-142-9616 5315-00-781-7112 5315-01-525-4402 5315-00-164-5656
Straight Pin 9999991429616 991429616 586-6476 5315-01-525-4402 5315-00-283-7798 5315-00-136-6128 5315-00-164-5656
Straight Pin 9999994027491 994027491 586-6476 5315-01-525-4402 5315-00-283-7798 5315-00-136-6128 5315-00-164-5656
Restrictions 5315-00-164-5656
5315-00-164-5656 is a Headed Straight Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5315-00-164-5656
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5315-00-164-5656
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Supplementary Collaborators:
- GTKE
Approved Sources 5315-00-164-5656
- Part Number
- Manufacturer
- Status
- 3020T97P13
- Manufacturer
- 99207 - General Electric Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5315-00-164-5656
- Characteristic
- Specifications
- FIIG
- Specifications
- A212A0
- Distance From Centerline Of Hole To End Of Pin [ABRE]
- 0.150 Inches Minimum And 0.190 Inches Maximum
- Chamfer Length [AAZP]
- 0.020 Inches Minimum And 0.040 Inches Maximum
- Diameter [ABMZ]
- 0.199 Inches Minimum And 0.200 Inches Maximum
- First Hole Diameter [ABRC]
- 0.091 Inches Minimum And 0.096 Inches Maximum
- Head Style [AASK]
- Flat
- Height [HGTH]
- 0.050 Inches Minimum And 0.060 Inches Maximum
- Hole Arrangement Style [ABRB]
- One End Drilled
- Material [MATT]
- Iron Alloy 660 Overall
- Material Document And Classification [MDCL]
- Ams 5737 Assn Std Single Material Response Overall
- Pin Chamfer Angle [CQPJ]
- 14.0 Degrees Minimum And 16.0 Degrees Maximum
- Pin Head Diameter [CRRG]
- 0.380 Inches Minimum And 0.400 Inches Maximum
- Under Head Length [ABPB]
- 0.680 Inches Minimum And 0.720 Inches Maximum
- Style Designator [STYL]
- Straight
- Surface Finish [CSYM]
- 125.0 Microinches Head Outside Diameter
- Surface Finish [CSYM]
- 63.0 Microinches Shank End
DLA Procurement Analysis 5315-00-164-5656
Management Data 5315-00-164-5656
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5315-00-164-5656
Freight Information 5315-00-164-5656
5315-00-164-5656 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5315-00-164-5656 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5315-00-164-5656 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5315-00-164-5656 is not classified as a special type of cargo when transported by water. 5315-00-164-5656 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5315-00-164-5656
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5315-00-164-5656 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
