5315-00-051-1855
Nail
5315000511855 000511855 ASTM-F1667 NL UL-03 FF-N-105 FF-N-105 TY2ST25 SZ1-1/4L X.099D
A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails." View more Nail
January 2023
7
Marketplace 5315-00-051-1855
Request a Quotation from participating marketplace vendors
Related Documents 5315-00-051-1855 5+ Documents (More...)
FF-N-105 NAIL 120 BX NS Request Quotation Subscribe to View Vendor Details... 5315-00-051-1855 NAIL RQST
Day 5315-00-051-1855 RQST NE Updated Every Day 5315-00-051-1855 RQST Updated Every Day 5315-00-051-1855
TY1 COM30050 FF-N-105 MS90713-13 A headed and pointed fastening device designed for impact FF-N-105 https
Nail 5315000511855 000511855 TY2ST25SZ1-1/4L X.099D FF-N-105 A headed and pointed fastening device
https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-00-051-1855 Nail 5315000511855 000511855 TY2ST25SZ1
-1/4L X.099D FF-N-105 A headed and pointed fastening device designed for FF-N-105 NAIL FF-N-105 TY1 COM30050
FF-N-105 TY1 COM30050 FF-N-105 MS90713-13 A headed and pointed fastening device designed for impact https
FF-N-105 TY1 COM30050 FF-N-105 MS90713-13 A headed and pointed fastening device designed for impact https
TY2ST25SZ1-1/4L X.099D FF-N-105 A headed and pointed fastening device designed for FF-N-105 TY1 COM30050
FF-N-105 TY2ST19 FF-N-105 A headed and pointed fastening device designed for impact insertion.
Restrictions 5315-00-051-1855
5315-00-051-1855 is a Nail that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5315-00-051-1855
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- US Air Force (FXGS)
- Effective Date:
- 1 Jan 2001
- Former MOE Rule:
- FEGS
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
Approved Sources 5315-00-051-1855
- Part Number
- Manufacturer
- Status
- ASTM-F1667 NL UL-03
- Manufacturer
- 81346 - American Society For Testing And (Active)
- Incomplete Reference
- Incomplete Reference
- FF-N-105
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FF-N-105 TY2ST25 SZ1-1/4L X.099D
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5315-00-051-1855
- Characteristic
- Specifications
- FIIG
- Specifications
- A04300
- Decorative Head [ACVY]
- No
- Fabrication Method [AARN]
- Cold Formed
- Fastener Length [AASB]
- 1.250 Inches Nominal
- Head Diameter [AASL]
- 0.250 Inches Nominal
- Head Style [AASK]
- Flat
- Material [MATT]
- Steel
- Supplementary Features [SUPP]
- Underlayment
- Point Style [ABQJ]
- Diamond
- Shank Diameter [AAZE]
- 0.099 Inches Nominal

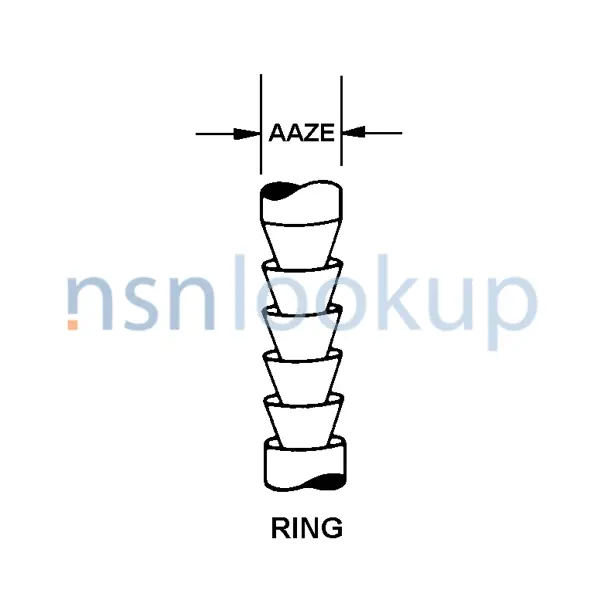

- Shank Style [AAZF]
- Ring
- Sterilized [ACVQ]
- No
Management Data 5315-00-051-1855
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- BX
- Subscribe
- 1
- BX
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 50 Lb
- 00000000050LB
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 50 Lb
- 00000000050LB
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 50 Lb
- 00000000050LB
- K
- General Services Administration (TG)
- I
- K
- U/I Contains 50 Lb
- 00000000050LB
- K
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5315-00-051-1855
Freight Information 5315-00-051-1855
5315-00-051-1855 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105840. A Sub NMFC of X. It has a NMFC Description of NAILS/SPIKES I/S NOI PLAIN ETC. 5315-00-051-1855 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 54430 which rates the freight between FCL and LCL. 5315-00-051-1855 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 575 for ocean manifesting and military sealift. 5315-00-051-1855 is not classified as a special type of cargo when transported by water. 5315-00-051-1855 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
