5310-01-652-0142
Clinch Plain Nut
5310016520142 016520142 62132 AVK#AKS4-420-165
A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. View more Clinch Plain Nut
May 2023
1
Marketplace 5310-01-652-0142
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-652-0142 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5310-01-652-0142 RQST NE Updated Every Day 5310-01-652-0142 RQST
Updated Every Day 5310-01-652-0142 RQST NE Related Documents 5310-01-652-0142 5+ Documents ( More...
/fsg-53/fsc-5330/uk 5330-99-955-9189 Seal Retainer 5330999559189 999559189 S6120-62132-20 An item of
-19 Managed by United Kingdom NSN Created on -6 CONNECTING -25 S6120-62132-41 A flat metal or plastic
S6120-62132-20 An item of various shapes and cross sections, usually flanged and designed to fit over
/fsg-53/fsc-5340/fr 5340-14-032-0652 Spacing Threaded Standoff 5340140320652 S6120-62132-19 Managed
-1 734-62132 Excludes BOOT, DUST AND MOISTURE SEAL; COVER, SWITCH TERMINAL; GUARD, SWITCH; and PLATE,
-1734-62132 Excludes BOOT, DUST AND MOISTURE SEAL; COVER, SWITCH TERMINAL; GUARD, SWITCH; 5930-01-626
-25 S6120-62132-41 A flat metal or plastic item of various peripheral shapes having a solid (not
-25S6120-62132-41 A flat metal or plastic item of various https//www.nsnlookup.com /fsg-53/fsc-5310/
Restrictions 5310-01-652-0142
5310-01-652-0142 is a Clinch Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-652-0142
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-652-0142
- US Marine Corps (MC47)
- Effective Date:
- 1 Feb 2016
Approved Sources 5310-01-652-0142
- Part Number
- Manufacturer
- Status
- 62132
- Manufacturer
- 0SUA9 - Generac Mobile Products, Llc (Active)
- Primary Buy
- Primary Buy
- AVK#AKS4-420-165
- 0KMA3 - Adams Nut And Bolt Co Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5310-01-652-0142
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches

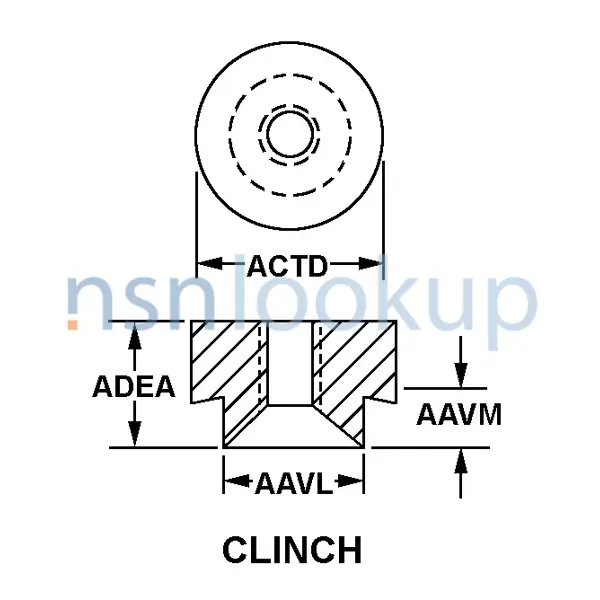

- Nut Diameter [ACTD]
- 0.460 Inches Nominal
- Nut Style [ACTA]
- Clinch
- Part Name Assigned By Controlling Agency [CXCY]
- Nut,Plain,Clinch
- Pilot Diameter [AAVL]
- 0.390 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Series [BZRR]
- Unc
DLA Procurement Analysis 5310-01-652-0142
Management Data 5310-01-652-0142
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-01-652-0142
Freight Information 5310-01-652-0142
5310-01-652-0142 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093490. A Sub NMFC of X. It has a NMFC Description of BOLT/NUT/SCREW/CLIPS/FASTENER/ETC. 5310-01-652-0142 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50270 which rates the freight between FCL and LCL. 5310-01-652-0142 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-652-0142 is not classified as a special type of cargo when transported by water. 5310-01-652-0142 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5310-01-652-0142 1 Records
Contracting Technical Data File (CTDF) 5310-01-652-0142 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
