5310-01-628-4949

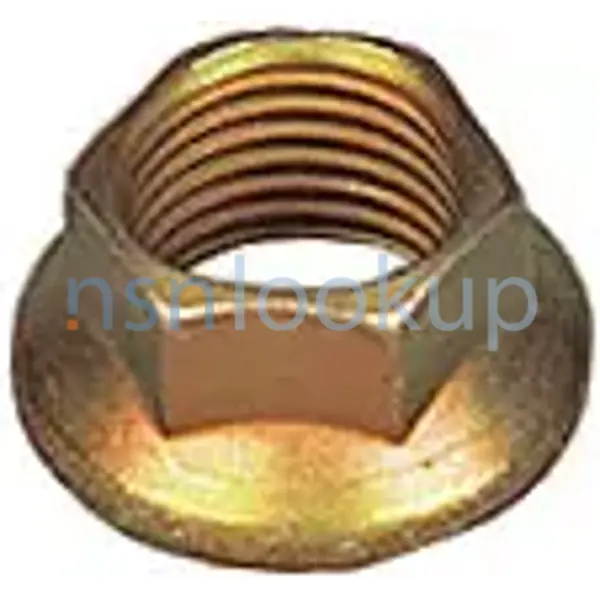

Hexagon Extended Washer Self-Locking Nut
5310016284949 016284949 NASM21042 MS21042-4
A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut
May 2023
9
Marketplace 5310-01-628-4949
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-628-4949 5+ Documents (More...)
RQST NE Updated Every Day 5310-01-628-4949 RQST Updated Every Day 5310-01-628-4949 RQST NE Related Documents
5310-01-628-4949 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-628-4949
/fsg-53/fsc-5310/us
https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-584-5260 Hexagon Self-Locking Nut 5310015845260 NASM21042
vendors Request Updated Every Day 5310-01-584-5260 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-628-4949
MS21042-4 NUT,SELF-LOCKING,EXTENDED WASHER 2 EA NS Request Quotation Subscribe to View Vendor Details
MS21042-4 NUT,SELF-LOCKING,EXTENDED WASHER 6 EA NS Request Quotation Subscribe to View Vendor Details
Every Day 5310-01-692-5988 RQST NE Restrictions https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-628-4949
Hexagon Extended Washer Self-Locking Nut Self-Locking Nut5310015845260 015845260 NASM21042 https
Every Day 5310-01-622-9666 RQST NE Restrictions https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-628-4949
Hexagon Extended Washer Self-Locking Nut Self-Locking Nut5310015845260 015845260 NASM21042 https
Restrictions 5310-01-628-4949
5310-01-628-4949 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-628-4949
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-628-4949
- US Army (A919)
- Effective Date:
- 28 May 2014
- Supplementary Receivers:
- BF
- Spain (YB01)
- Effective Date:
- 1 Nov 2014
- United Kingdom (ZK01)
- Effective Date:
- 1 Aug 2014
Approved Sources 5310-01-628-4949
- Part Number
- Manufacturer
- Status
- NASM21042
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS21042-4
- 5B5M3 - Devcom Chemical Biological Center (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5310-01-628-4949
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- End Item Identification [AGAV]
- 4910-01-539-6129
- Material [MATT]
- Steel Corrosion Resisting Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Nut Style [ACTA]
- Hexagon
- Part Name Assigned By Controlling Agency [CXCY]
- Nut, Self Locking
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design
- Overall Height [ABKW]
- 0.204 Inches Minimum And 0.219 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series [BZRR]
- Unjf
- Washer Outside Diameter [AAVX]
- 0.420 Inches Maximum
- Washer Thickness [ADEM]
- 0.019 Inches Minimum
- Width Across Flats [ASDB]
- 0.304 Inches Minimum And 0.316 Inches Maximum
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-01-628-4949
DLA Procurement Analysis 5310-01-628-4949
Management Data 5310-01-628-4949
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Feb 2023
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Feb 2016
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5310-00-807-1468
- Z
NATO Stock Numbers Related to 5310-01-628-4949
Freight Information 5310-01-628-4949
5310-01-628-4949 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-628-4949 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-628-4949 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-628-4949 is not classified as a special type of cargo when transported by water. 5310-01-628-4949 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5310-01-628-4949 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
