5310-01-626-2196
Gang Angle Self-Locking Nut Assembly
5310016262196 016262196 3M463N10A3-1
An item composed of a specially designed angle and a series of nuts having integral self-locking features assembled in a predetermined spacing. View more Gang Angle Self-Locking Nut Assembly
May 2023
1
Marketplace 5310-01-626-2196
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-626-2196 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5310-01-626-2196 RQST NE Updated Every Day 5310-01-626-2196 RQST
Updated Every Day 5310-01-626-2196 RQST NE Related Documents 5310-01-626-2196 1+ Documents ( More...
Restrictions 5310-01-626-2196
5310-01-626-2196 is a Gang Angle Self-Locking Nut Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5310-01-626-2196
- US Air Force (FMSG)
- Effective Date:
- 1 Mar 2014
Approved Sources 5310-01-626-2196
- Part Number
- Manufacturer
- Status
- 3M463N10A3-1
- Manufacturer
- 76301 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-626-2196
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- End Item Identification [AGAV]
- F-15Sa
- Base Thickness [ACYB]
- 0.040 Inches Nominal
- Base Width [ACUU]
- 0.452 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-250/12 Fed Std Single Material Response Or Qq-A-250/13 Fed Std Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 7075 Overall
- Mounting Style [ADER]
- Special
- Nominal Thread Size [CQJX]
- 0.1900 Inches
- Nut Counterbore Depth [ADFK]
- 0.062 Inches Nominal Nut
- Nut Length [ACVN]
- 0.255 Inches Nominal
- Nut Height [ADEA]
- 0.160 Inches Nominal
- Nut Quantity [AZXC]
- 10
- Nut Style [ACTA]
- Gang Channel, Self Locking
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design
- Overall Height [ABKW]
- 0.230 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]

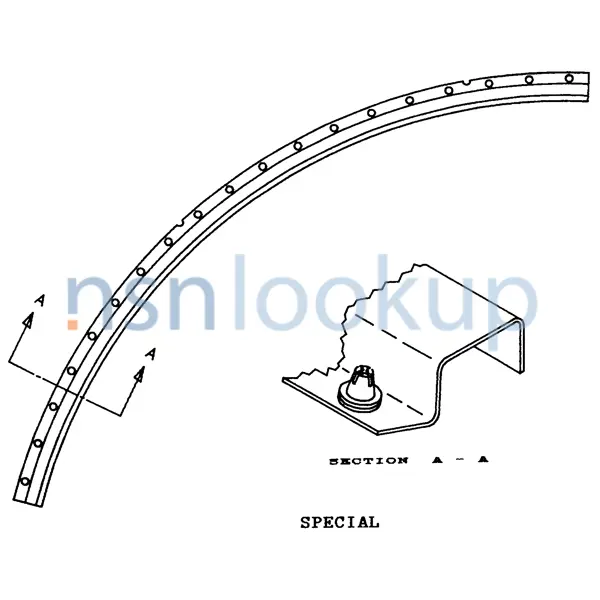

- Nut Assembly, Self-Locking, Gang Channel
- Special Features [FEAT]
- Nut Spacing 1.250 Inches
- Thread Quantity Per Inch [CMLP]
- A32
- Thread Series [BZRR]
- Unjf
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625, Type Ii, Class 1 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
