5310-01-620-5763

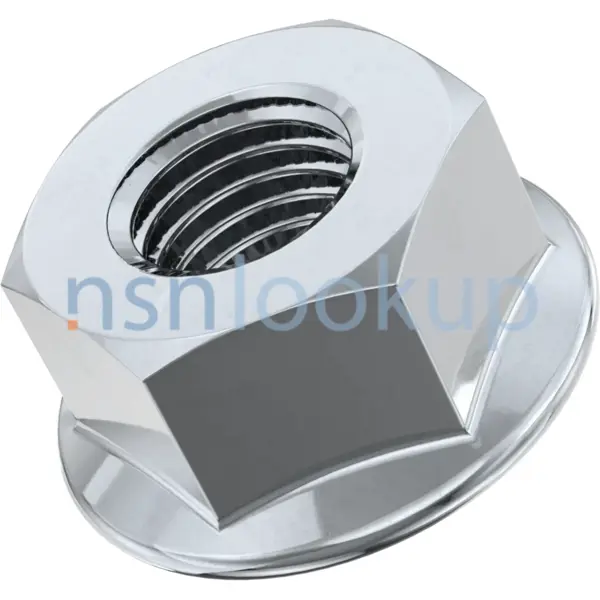

Hexagon Extended Washer Plain Nut
5310016205763 016205763 11512269
A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. View more Hexagon Extended Washer Plain Nut
October 2023
1
Marketplace 5310-01-620-5763
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-620-5763 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5310-01-620-5763 RQST NE Updated Every Day 5310-01-620-5763 RQST
Updated Every Day 5310-01-620-5763 RQST NE Related Documents 5310-01-620-5763 2+ Documents ( More...
1.101-GS A nut having 6 flat sides and an integral https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-620-5763
Hexagon Extended Washer Plain Nut 016205763 Upgrade your Account Upgrade 5310-01-620-5763Hexagon
Restrictions 5310-01-620-5763
5310-01-620-5763 is a Hexagon Extended Washer Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-620-5763
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-620-5763
- US Army (A919)
- Effective Date:
- 1 Jul 2013
- Supplementary Receivers:
- CL
Approved Sources 5310-01-620-5763
- Part Number
- Manufacturer
- Status
- 11512269
- Manufacturer
- 43UT5 - Fastenal Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-620-5763
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Thread Series [BZRR]
- M
- Nominal Thread Size [CQJX]
- 6.0 Millimeters
- Thread Pitch In Millimeters [CQQR]
- 1.0
- Thread Class [AAJD]
- 6H
- Thread Direction [AAJF]
- Right-Hand
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Zinc Overall
- Nut Style [ACTA]
- Hexagon
- Washer Outside Diameter [AAVX]
- 14.2 Millimeters Maximum
- Overall Height [ABKW]
- 6.0 Millimeters Maximum
- Washer Thickness [ADEM]
- 1.1 Millimeters Minimum
- Width Across Flats [ASDB]
- 10.0 Millimeters Minimum
- End Item Identification [AGAV]
- 6115-01-611-8093
- Part Name Assigned By Controlling Agency [CXCY]
- Flange Nut
DLA Procurement Analysis 5310-01-620-5763
Management Data 5310-01-620-5763
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5310-01-620-5763
Freight Information 5310-01-620-5763
5310-01-620-5763 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-620-5763 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-620-5763 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-620-5763 is not classified as a special type of cargo when transported by water. 5310-01-620-5763 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5310-01-620-5763 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
