5310-01-614-1522

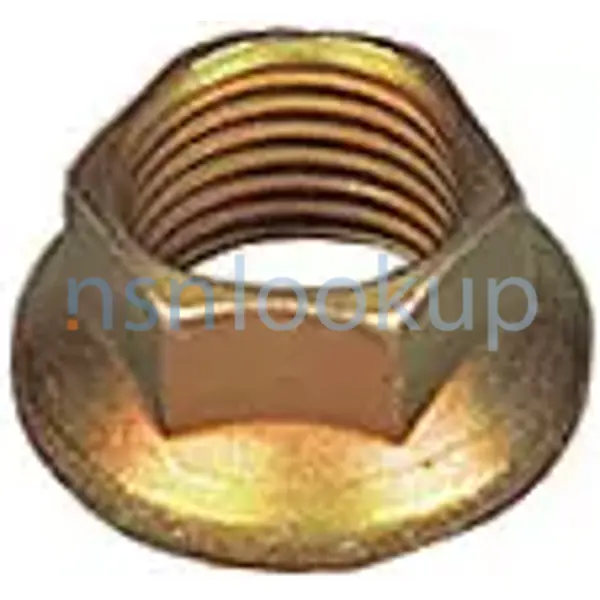

Hexagon Extended Washer Self-Locking Nut
5310016141522 016141522 MS21042L10
A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut
September 2025
3
Marketplace 5310-01-614-1522
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-614-1522 1+ Documents (More...)
5310-01-614-1522 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-614-1522
Day 5310-01-614-1522 RQST NE Related Documents 5310-01-614-1522 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 5310-01-614-1522
5310-01-614-1522 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-614-1522
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-614-1522
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2012
Approved Sources 5310-01-614-1522
- Part Number
- Manufacturer
- Status
- MS21042L10
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
Datasheet 5310-01-614-1522
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Material [MATT]
- Steel Overall
- Nut Style [ACTA]
- Hexagon
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design
- Lubrication [ABAJ]
- Dry Film Lubricant
- Part Name Assigned By Controlling Agency [CXCY]
- Nut, Self-Locking, Extended Washer, Hexagon
- Thread Series [BZRR]
- Unjc
- Surface Treatment [SFTT]
- Cadmium And Chromate Overall
- Temp Rating [AZKQ]
- 450.0 Deg Fahrenheit Nominal
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
Similar Supply Items to 5310-01-614-1522
Freight Information 5310-01-614-1522
5310-01-614-1522 has freight characteristics.. 5310-01-614-1522 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
