5310-01-607-6974
Blind Rivet Plain Nut
5310016076974 016076974 NAS1330S4B151
A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE. View more Blind Rivet Plain Nut
November 2023
3
Marketplace 5310-01-607-6974
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-607-6974 2+ Documents (More...)
(Identification) 1/2 NSN 5310-01-607-6974 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5310-01-607-6974 RQST NE Updated Every Day 5310-01-607-6974 RQST
NAS1330S4B151 NUT,PLAIN,BLIND RIVET 85 EA NS Request Quotation Updated Every Day 5310-01-180-4775 RQST
States (US) 4. 5310-01-180-4775 Marketplace Restrictions Approved Sources Datasheet Management NAS1330S4B151
Restrictions 5310-01-607-6974
5310-01-607-6974 is a Blind Rivet Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-607-6974
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-607-6974
- US Army (A919)
- Effective Date:
- 1 Jun 2012
- Supplementary Receivers:
- BD
Approved Sources 5310-01-607-6974
- Part Number
- Manufacturer
- Status
- NAS1330S4B151
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-607-6974
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Nut Grip Range [ADEY]
- -0.089 To 0.151 Inches
- Hardness Rating [CQFM]
- 45.0 Rockwell C Minimum
- Head Countersink Angle [CTPW]
- 100.0 Degrees Nominal
- Head Height [AASU]
- 0.089 Inches Nominal
- Head Diameter [AASL]
- 0.529 Inches Nominal

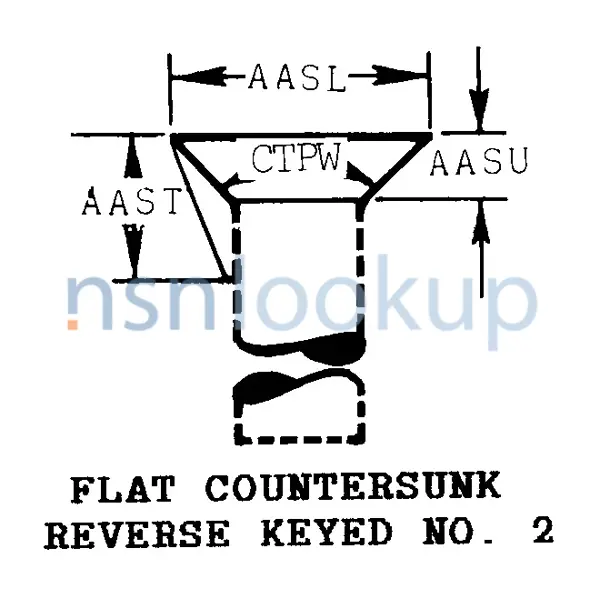

- Head Style [AASK]
- Flat Countersunk Reverse Keyed No.2
- Material [MATT]
- Steel Comp 1008 Or Steel Comp 1010 Or Steel Comp 1108 Or Steel Comp 1110 Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Nut Diameter [ACTD]
- 0.328 Inches Minimum And 0.332 Inches Maximum
- Nut Length [ACVN]
- 0.985 Inches Minimum And 1.015 Inches Maximum
- Nut Style [ACTA]
- Blind Rivet W/Smooth Round Shank
- Key Length [AAST]
- 0.089 Inches Nominal
- Material Document And Classification [MDCL]
- Astm A576 Assn Std Single Material Response Overall
- Shank End Type [ADFN]
- Closed
- Part Name Assigned By Controlling Agency [CXCY]
- Nut,Blind Rivet - C'sunk Head,Internal Thd,Non-Locking
- Thread Series [BZRR]
- Unf
- Thread Quantity Per Inch [CMLP]
- 28
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty Ii Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Temp Rating [AZKQ]
- 250.0 Deg Fahrenheit Nominal
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-01-607-6974
DLA Procurement Analysis 5310-01-607-6974
- Last Stock Position:
- 124 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-607-6974
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5310-01-607-6974
Freight Information 5310-01-607-6974
5310-01-607-6974 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-607-6974 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-607-6974 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-607-6974 is not classified as a special type of cargo when transported by water. 5310-01-607-6974 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-607-6974
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5310-01-607-6974 1 Records
Contracting Technical Data File (CTDF) 5310-01-607-6974 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
