5310-01-555-4988

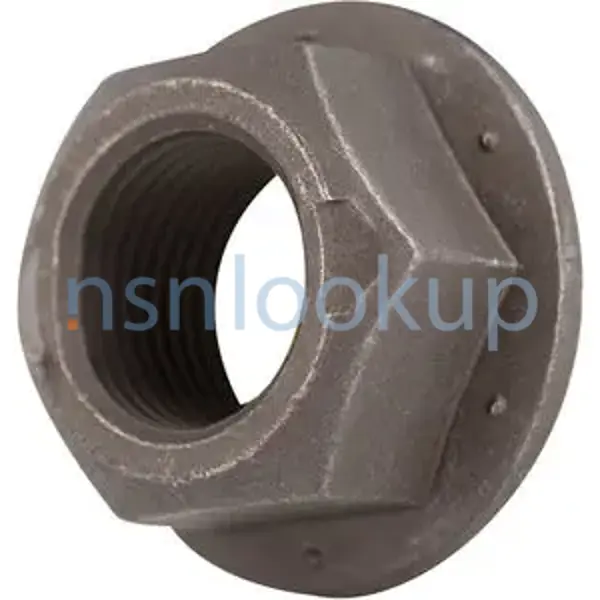

Hexagon Plain Nut
5310015554988 015554988 12759-00460 3821117C2 3821117C1 37340 2037534C1
A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.) View more Hexagon Plain Nut
November 2023
23
Marketplace 5310-01-555-4988
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-555-4988 5+ Documents (More...)
NS Request Quotation Updated Every Day 3821117C2 RQST NE Updated Every Day 3821117C1 RQST NE Updated
Every Day 2037534C1 RQST NE Updated Every Day 5310-01-555-4988 RQST NE Updated Every Day 5310-01-555-
-39A (Active) Primary Buy RNCC 3 RNVC 2 MEDALS DAC 4 37340-39A 09344 -39 37340-39A (Active) Primary
-39A (Active) Primary Buy RNCC 3 RNVC 2 MEDALS DAC 4 37340-39A 09344 -39 37340-39A (Active) Primary
Restrictions 5310-01-555-4988
5310-01-555-4988 is a Hexagon Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-555-4988
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-555-4988
- US Army (A919)
- Effective Date:
- 1 Oct 2007
- Supplementary Receivers:
- AZ
- US Air Force (FGGI)
- Effective Date:
- 1 May 2008
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2007
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2012
- Supplementary Collaborators:
- HD
Approved Sources 5310-01-555-4988
- Part Number
- Manufacturer
- Status
- 12759-00460
- Manufacturer
- 0Y3H3 - Fastenal Company (Active)
- Primary Buy
- Primary Buy
- 3821117C2
- 338X5 - Nd Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 3821117C2
- 5F5P2 - Asf Logistics, Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 3821117C1
- 338X5 - Nd Defense Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 37340
- 0Y3H3 - Fastenal Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2037534C1
- 338X5 - Nd Defense Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5310-01-555-4988
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Nominal Thread Size [CQJX]
- 0.312 Inches
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Material [MATT]
- Steel Overall
- Special Features [FEAT]
- Nut Hex Lock Flg 5/16-18
- End Item Identification [AGAV]
- Maxxpro Mrap Vehicle; Mrap - Maxxpro Recovery Vehicle
- Part Name Assigned By Controlling Agency [CXCY]
- Nut, Hex Lock Flanged 5/16-18
Weapon Systems (WSDC) 5310-01-555-4988
DLA Procurement Analysis 5310-01-555-4988
- Last Stock Position:
- 11206 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-555-4988
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Jul 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2020
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5310-01-566-9235
- 4
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5310-01-566-3257
- 4
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-01-555-4988
Freight Information 5310-01-555-4988
5310-01-555-4988 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-555-4988 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-555-4988 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5310-01-555-4988 is not classified as a special type of cargo when transported by water. 5310-01-555-4988 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-555-4988
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 5310-01-555-4988 1 Records
Contracting Technical Data File (CTDF) 5310-01-555-4988 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
