5310-01-524-7998
Retainer Ring Nut Assembly
5310015247998 015247998 257A494-1
An item consisting of a flat metal ring designed to be fastened in place, upon which replaceable nuts are assembled in predetermined spacing. View more Retainer Ring Nut Assembly
May 2023
2
Marketplace 5310-01-524-7998
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-524-7998 5+ Documents (More...)
5310-01-524-7998 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-524-7998
Retainer Ring Nut Assembly 5310015247998 (Identification) 1/2 NSN 5310-01-524-7998 (Identification)
382-2655 Assembly 4920997717817 477- 2045 5310-01-644-2235 5310-01-644-4741 5310-01-555-4397 5310-01-524-7998
Retainer Ring Nut Assembly 5310015247998 Retainer Ring Nut Assembly 5310016444741 Retainer Ring
Retainer Ring Nut Assembly 5310015247998 -382-2655 Retainer Ring Nut Assembly 5310013822655 Assembly
605-8167 Retainer Ring Nut Assembly 5365996058167 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-524-7998
5310-01-382-2655 Ring https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-524-7998 Retainer Ring
Nut Assembly 5310015247998 01-644-4741 Retainer Ring Nut Assembly 5310016444741 Retainer Ring Nut Assembly
www.nsnlookup.com /fsg-53/fsc-5365/uk 5365-99-096-4226 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-524-7998
Retainer Ring Nut Assembly 5310015247998 5310-01-644-4741 5310-01-555-4397 5310-01-524-7998 https
Restrictions 5310-01-524-7998
5310-01-524-7998 is a Retainer Ring Nut Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-524-7998
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-524-7998
- US Air Force (FGGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FGKZ
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
Approved Sources 5310-01-524-7998
- Part Number
- Manufacturer
- Status
- 257A494-1
- Manufacturer
- 03640 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-524-7998
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- End Item Identification [AGAV]
- Laircm Group

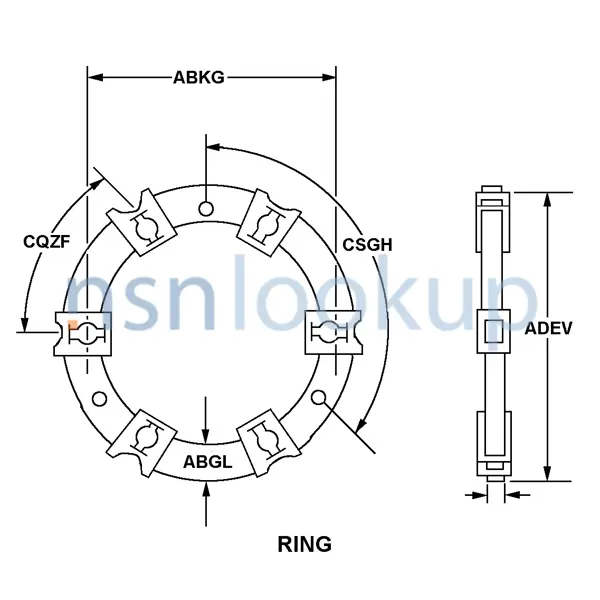

- Bolt Circle Diameter [ABKG]
- 15.990 Inches Minimum And 16.010 Inches Maximum
- Mounting Style [ADER]
- Ring
- Nut Length [ACVN]
- 1.292 Inches Maximum
- Nut Height [ADEA]
- 0.281 Inches Maximum
- Nut Quantity [AZXC]
- 8
- Nut Style [ACTA]
- Plate
- Plate Width [ADEC]
- 0.350 Inches Minimum And 0.516 Inches Maximum
- Plate Thickness [ADEB]
- 0.032 Inches Maximum
- Ring Outside Diameter [ADEV]
- 16.990 Inches Minimum And 17.010 Inches Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Nut Assembly, Self-Locking
- Width [ABGL]
- 2.490 Inches Minimum And 2.510 Inches Maximum
- Thickness [ABNM]
- 0.058 Inches Minimum And 0.068 Inches Maximum
DLA Procurement Analysis 5310-01-524-7998
Management Data 5310-01-524-7998
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5310-01-524-7998
Freight Information 5310-01-524-7998
5310-01-524-7998 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-524-7998 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-524-7998 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-524-7998 is not classified as a special type of cargo when transported by water. 5310-01-524-7998 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-524-7998
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-01-524-7998 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
