5310-01-503-2710
Positive L Fastener
5310015032710 015032710 ASPF-S-V08 5PTV1501-8S
An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY. View more Sleeve Nut
November 2023
4
Marketplace 5310-01-503-2710
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-503-2710 1+ Documents (More...)
ASPF-S-V08 FASTENER,POSITIVE L 1 EA NS Request Quotation Updated Every Day 5310-01-503-2710 RQST NE Updated
Every Day 5310-01-503-2710 RQST Updated Every Day 5310-01-503-2710 RQST NE Related Documents 5310-01
Restrictions 5310-01-503-2710
5310-01-503-2710 is a Positive L Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-503-2710
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-503-2710
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2012
- Former MOE Rule:
- FLL5
- Supplementary Collaborators:
- TL
Approved Sources 5310-01-503-2710
- Part Number
- Manufacturer
- Status
- ASPF-S-V08
- Manufacturer
- 17446 - Huck International, Inc (Active)
- Primary Buy
- Primary Buy
- 5PTV1501-8S
- 98897 - Lockheed Martin Corp (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5310-01-503-2710
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0

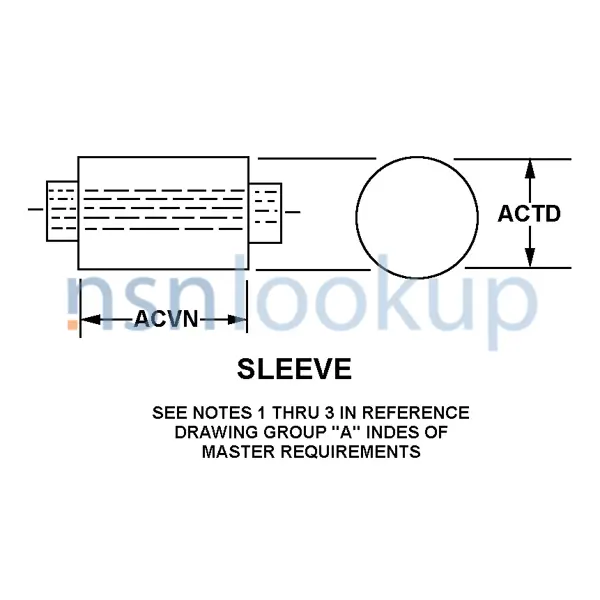

- Boss Diameter [ADBN]
- 0.224 Inches Minimum Overall And 0.234 Inches Maximum Overall
- Countersink Angle [CRSQ]
- 100.0 Degrees Nominal Nut
- Cross-Sectional Shape [ANLR]
- Round Nut
- Flange Diameter [ABKK]
- 0.507 Inches Maximum
- Material [MATT]
- Titanium Alloy Uns R56400 Overall
- Nominal Thread Size [CQJX]
- 0.216 Inches
- Nut Diameter [ACTD]
- 0.263 Inches Minimum And 0.265 Inches Maximum
- Nut Length [ACVN]
- 0.224 Inches Minimum And 0.234 Inches Maximum
- Nut Style [ACTA]
- Sleeve
- Lubrication [ABAJ]
- Soluble Lubricant
- Material Document And Classification [MDCL]
- Ams4967 Assn Std Single Material Response Overall
- Part Name Assigned By Controlling Agency [CXCY]
- Sleeve
- Thread Quantity Per Inch [CMLP]
- 48
- Thread Series [BZRR]
- Uns
- Thread Class [AAJD]
- 3
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-01-503-2710
DLA Procurement Analysis 5310-01-503-2710
- Last Stock Position:
- 1404 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-503-2710
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- E
- The current standard price is an estimated price.
Estimated Price challenges are allowed but follow procedures in para 60.b. (3) of section L of this manual.
This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
