5310-01-501-1289
Key Washer
5310015011289 015011289 0140001
A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer. View more Key Washer
August 2023
1
Marketplace 5310-01-501-1289
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-501-1289 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5310-01-501-1289 RQST NE Updated Every Day 5310-01-501-1289 RQST
Updated Every Day 5310-01-501-1289 RQST NE Related Documents 5310-01-501-1289 4+ Documents ( More...
https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-501-1289 Key Washer 5310015011289 015011289,0140001
Upgrade for $1 a day Upgrade your Account Upgrade 5310-01-501-1289Key Washer5310015011289 015011289
Key Washer 5310015011289 015011289,0140001 0140001 how to enable JavaScript in your web browser
. 6515-33-005-1011Oronasal Mask6515330051011 330051011 0140001 enable JavaScript in your web browser
how to enable JavaScript in your web browser . 6515-33-005-1011Oronasal Mask6515330051011 330051011 0140001
0140001 https//www.nsnlookup.com /fsg-34/fsc-3445/us 3445-01-669-17353445016691735 016691735,0140001
Restrictions 5310-01-501-1289
5310-01-501-1289 is a Key Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-501-1289
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-501-1289
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2006
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2014
- Supplementary Collaborators:
- GG
Approved Sources 5310-01-501-1289
- Part Number
- Manufacturer
- Status
- 0140001
- Manufacturer
- 1Y437 - Henschen Industrial (Active)
- Primary Buy
- Primary Buy

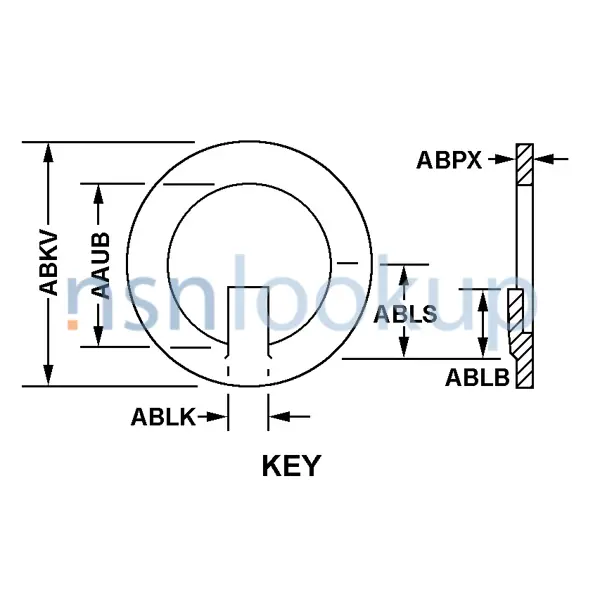

Datasheet 5310-01-501-1289
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- End Item Identification [AGAV]
- 5985-01-422-4682
- Hardness Rating [CQFM]
- 79.0 Rockwell Superficial 15-N Minimum And 82.0 Rockwell Superficial 15-N Maximum
- Hole Diameter [AAUB]
- 1.027 Inches Minimum And 1.037 Inches Maximum
- Material Thickness [ABPX]
- 0.125 Inches Nominal
- Outside Diameter [ABKV]
- 1.745 Inches Minimum And 1.755 Inches Maximum
- Material [MATT]
- Steel Comp 1020 Overall
- Internal Prebent Key Length [ABLB]
- 0.156 Inches Nominal
- Internal Prebent Key Width [ABLK]
- 0.156 Inches Nominal
- Style Designator [STYL]
- Key
DLA Procurement Analysis 5310-01-501-1289
Management Data 5310-01-501-1289
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 5310-01-501-1289
Freight Information 5310-01-501-1289
5310-01-501-1289 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-01-501-1289 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-01-501-1289 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-01-501-1289 is not classified as a special type of cargo when transported by water. 5310-01-501-1289 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-501-1289
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5310-01-501-1289 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
