5310-01-473-1437

Saddle Washer

5310014731437 014731437 783745-001

A washer with one surface shaped to fit a similarly curved surface, the other surface of the washer being either parallel with the shaped surface or in the form of raised boss having either a flat bearing surface or a recess designed for holding a nut. Excludes WASHER (1), CONCAVE and WASHER (1), CONVEX. View more Saddle Washer

5310-01-473-1437 WASHER,SADDLE 5310014731437 014731437

Managed by United States
NSN Created on 28 Mar 2000
Data Last Changed
January 2023
NATO Update Count
2
NATO Data Quality
STYL Style 33C for 5310-01-473-1437 1/1
NSN 5310-01-473-1437 (Identification) 1/1

5310-01-473-1437 Stock and Availability Marketplace 5310-01-473-1437

Need Help?
Request a Quotation from participating marketplace vendors
eBay Updated Every Day
5310-01-473-1437 RQST NE eBay
eBay Updated Every Day
5310-01-473-1437 RQST eBay
Amazon Updated Every Day
5310-01-473-1437 RQST NE Amazon

5310-01-473-1437 Related Documents Related Documents 5310-01-473-1437 1+ Documents (More...)

https//www.nsnlookup.com
/fsg-53/fsc-5310/us
5310-01-473-1437 Saddle Washer 5310014731437 014731437
783745-001 A washer with one surface shaped to fit a similarly curved surface, the other surface of
RQST NE Updated Every Day 5310-01-473-1437 RQST Updated Every Day 5310-01-473-1437 RQST NE Related Documents
5310-01-473-1437 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-473-1437

5310-01-473-1437 Demil Restrictions 5310-01-473-1437

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: A | ADPEC: 0

5310-01-473-1437 is a Saddle Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5310-01-473-1437 HTS and ScheduleB Import and Export 5310-01-473-1437

Schedule B
Subscribe to View Schedule B
HTS Code
Subscribe to View HTS Code

5310-01-473-1437 End Users End Users 5310-01-473-1437

United Kingdom (ZK01)
Effective Date:
1 Mar 2000

5310-01-473-1437 Manufacturers Approved Sources 5310-01-473-1437

Part Number
Manufacturer
Status
783745-001
75906 - Pacific Consolidated Industries Llc (Active)
Primary Buy
RNCC 3 RNVC 2 DAC 4

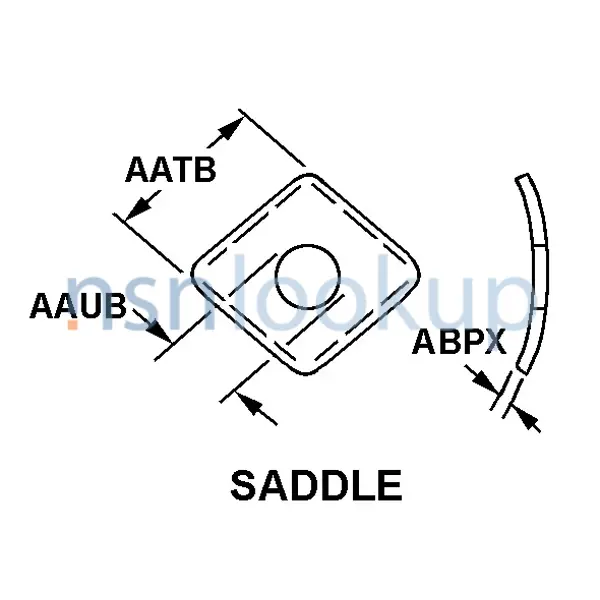

5310-01-473-1437 Technical Data Datasheet 5310-01-473-1437

Characteristic
Specifications
FIIG
A022B0
Hole Diameter [AAUB]
0.198 Inches Minimum And 0.208 Inches Maximum
Material Thickness [ABPX]
0.030 Inches Nominal
Material [MATT]
Steel Comp 304 Overall
Width Between Flats [AATB]
0.430 Inches Nominal
Style Designator [STYL]
Saddle

5310-01-473-1437 Related Items NATO Stock Numbers Related to 5310-01-473-1437

5310-99-647-0521 5310-12-040-9043 5310-21-893-8685 5310-99-535-6574 5310-99-424-1230 5310-27-001-7334 5310-99-051-9143 5310-12-348-7272 5310-31-014-0415 5310-99-301-1233 5310-99-629-2428 5310-33-210-3783 5310-12-171-7896 5310-99-454-0068 5310-99-829-1882 5310-19-002-8214 5310-99-894-8465 5310-12-040-9047

5310-01-473-1437 Freight Data Freight Information 5310-01-473-1437

5310-01-473-1437 has freight characteristics.. 5310-01-473-1437 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
