5310-01-455-8291
Double Hexagon Extended Washer Self-Locking Nut
5310014558291 014558291 9235390-13 42FLW720
A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Double Hexagon Extended Washer Self-Locking Nut
Managed by United States
NSN Created on 18 May 1998
Data Last Changed
November 2023
November 2023
NATO Update Count
16
16
NATO Data Quality
Marketplace 5310-01-455-8291
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
42FLW524 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 596 EA NS
42FLW720 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 266 EA NS
Updated Every Day 5310-01-455-8291 RQST NE
Updated Every Day 5310-01-455-8291 RQST
Updated Every Day 5310-01-455-8291 RQST NE
Related Documents 5310-01-455-8291 5+ Documents (More...)
9235390-13 42FLW720 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond

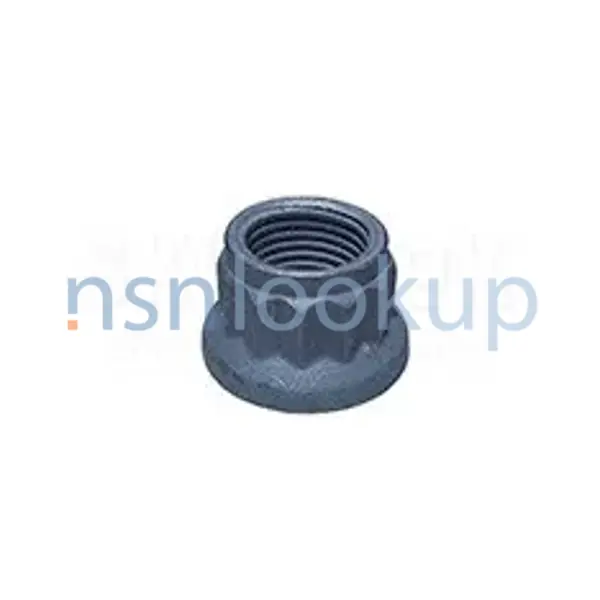

Photo 1/2 NSN 5310-01-455-8291 (Identification) 2/2 - - 1.
United States (US) 4. 5310-01-455-8291 Marketplace Restrictions Approved Sources Datasheet Management
Photo 1/2 NSN 5310-01-455-8291 (Identification) 2/2 - - 1.
United States (US) 4. 5310-01-455-8291 Marketplace Restrictions Approved Sources Datasheet Management
) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-459-11985310014591198 014591198,42FLW720 42FLW720
9235390-13 42FLW720 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-455-8291 5310014558291 014558291,9235390
-13 5310-01-455-8291Double Hexagon Extended Washer Self-Locking Nut5310014558291 014558291 9235390-13
9235390-13 42FLW720 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-455-8291 5310014558291 014558291,9235390
-13 5310-01-455-8291Double Hexagon Extended Washer Self-Locking Nut5310014558291 014558291 9235390-13
) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-459-11985310014591198 014591198,42FLW720 42FLW720
SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-455-8291
5310014558291 014558291,9235390-13 5310-01-455-8291Double Hexagon Extended Washer Self-Locking
SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-455-8291
5310014558291 014558291,9235390-13 5310-01-455-8291Double Hexagon Extended Washer Self-Locking
857-4987 5310-00-655-9863 5310-00-567-5341 5310-00-133-3671 5310-00-882-0903 5310-01-357-7666 5310-01-455-8291
857-4987 5310-00-655-9863 5310-00-567-5341 5310-00-133-3671 5310-00-882-0903 5310-01-357-7666 5310-01-455-8291
Restrictions 5310-01-455-8291
5310-01-455-8291 is a Double Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-455-8291
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-455-8291
- US Air Force (FUGI)
- Effective Date:
- 1 Feb 2015
- US Air Force (FUU5)
- Effective Date:
- 5 Jul 2012
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2015
- Supplementary Collaborators:
- KE
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Belgium (ZB01)
- Effective Date:
- 1 May 1998
- Republic of Korea (ZH01)
- Effective Date:
- 1 May 2004
- Netherlands (ZN01)
- Effective Date:
- 1 Jul 2004
- Portugal (ZP01)
- Effective Date:
- 1 May 2004
- Denmark (ZS01)
- Effective Date:
- 1 Jul 2007
- Norway (ZT01)
- Effective Date:
- 1 Nov 2011
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5310-01-455-8291
- Part Number
- Manufacturer
- Status
- 9235390-13
- Manufacturer
- 98747 - Ogden Air Logistics Center (Active)
- Source Control
- Source Control
- 42FLW720
- 56878 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-455-8291
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Hardness Rating [CQFM]
- 40.0 Rockwell C Maximum
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.4375 Inches
- Nut Style [ACTA]
- Double Hexagon
- Locking Feature [AAUM]
- Free-Running All Metal Design
- Lubrication [ABAJ]
- Dry Film Lubricant
- Material Document And Classification [MDCL]
- Ams 6280 Assn Std Single Material Response Overall Or Ms 6300 Assn Std Single Material Response Overall Or Ams 6322 Assn Std Single Material Response Overall
- Overall Height [ABKW]
- 0.496 Inches Minimum And 0.516 Inches Maximum
- Thread Series [BZRR]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 20
- Washer Outside Diameter [AAVX]
- 0.713 Inches Minimum And 0.763 Inches Maximum
- Washer Thickness [ADEM]
- 0.059 Inches Minimum And 0.079 Inches Maximum
- Width Across Flats [ASDB]
- 0.533 Inches Minimum And 0.564 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416, Ty I, Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-01-455-8291
DLA Procurement Analysis 5310-01-455-8291
- Last Stock Position:
- 7715 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-455-8291
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5310-01-455-8291
Freight Information 5310-01-455-8291
5310-01-455-8291 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-01-455-8291 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-01-455-8291 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-01-455-8291 is not classified as a special type of cargo when transported by water. 5310-01-455-8291 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
