5310-01-413-0481

Hexagon Self-Locking Nut

5310014130481 014130481 89NTU-1409 803-6397262-9 8100-1251-0308- PC NO 104 RSC VOL 32 PG 92 PC NO 24 89NTU1409 803-6397269 PC103 59-FA-1409 D-10424-A PC NO 24 5310PL1283840

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 4 May 1995

Data Last Changed
November 2023

NATO Update Count
23

NATO Data Quality

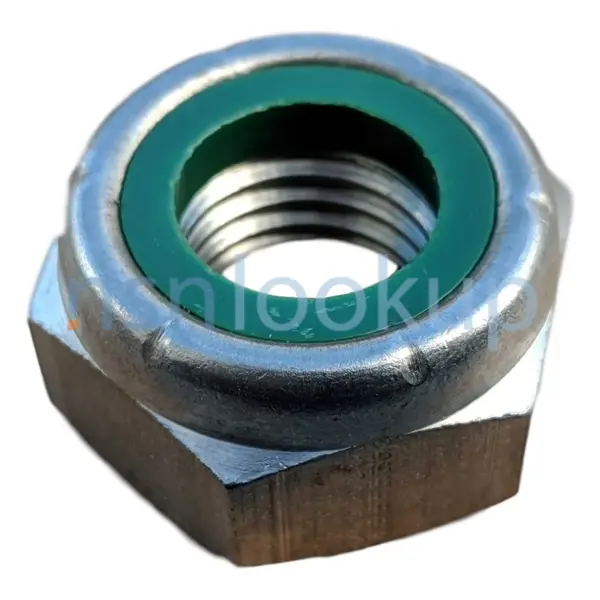

5310-01-413-0481 NUT,SELF-LOCKING,HEXAGON 5310014130481 014130481 1/2 — 5310-01-413-0481 Photo 1/2

ACTA Style A12 for 5310-01-413-0481 2/2 — NSN 5310-01-413-0481 (Identification) 2/2

Marketplace 5310-01-413-0481

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

803-6397262-9 NUT,SELF-LOCKING,HEXAGON 6895 EA NS

Subscribe to View Vendor Details...

89NTU-1409 NUT,SELF-LOCKING,HEXAGON 103 EA NS

Subscribe to View Vendor Details...

89NTU1409 NUT,SELF-LOCKING,HEXAGON 295 EA NS

Subscribe to View Vendor Details...

89NTU1409 NUT,SELF-LOCKING,HEXAGON 3 EA NS

Subscribe to View Vendor Details...

89NTU-1409 NUT 4 EA NS

89NTU-1409 NUT 3 EA NS

89NTU1409 NUT 2 EA NS

Subscribe to View Vendor Details...

803-6397262-9 NUT,SELF-LOCKING,HEXAGON 84 EA NS

Subscribe to View Vendor Details...

6397262-9 NUT,SELF-LOCKING,HEXAGON 8 EA NS

Updated Every Day

5310-01-413-0481 RQST NE

Updated Every Day

5310-01-413-0481 RQST

Updated Every Day

5310-01-413-0481 RQST NE

Restrictions 5310-01-413-0481

5310-01-413-0481 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-01-413-0481

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-01-413-0481

US Army (A919)
Effective Date:: 1 Mar 2009
Supplementary Receivers:: AZ; AMC 3 AMSC C IMC Z IMCACTY AZ

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 3 AMSC C

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTHD; AMC 3 AMSC C IMC Z IMCACTY HD

Poland (WP01)
Effective Date:: 1 Oct 2004

Spain (YB01)
Effective Date:: 1 Sep 1999

Malaysia (YW01)
Effective Date:: 1 Sep 1999

Australia (ZA01)
Effective Date:: 1 Mar 1997

Greece (ZU01)
Effective Date:: 1 Jun 2005

Turkey (ZW01)
Effective Date:: 1 Sep 1999

Approved Sources 5310-01-413-0481

Part Number
Manufacturer
Status
89NTU-1409: 27687 - Greer Stop Nut Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
803-6397262-9: 00360 - Apollo Aerospace Components Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
803-6397262-9: 1V757 - Wesco Aircraft Hardware Corp. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
8100-1251-0308- PC NO 104: 70876 - Bath Iron Works Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
RSC VOL 32 PG 92 PC NO 24: 86700 - Railway Specialties Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
89NTU1409: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
803-6397269 PC103: 53711 - Naval Sea Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
59-FA-1409: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
89NTU1409: 53711 - Naval Sea Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
D-10424-A PC NO 24: 86700 - Railway Specialties Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310PL1283840: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
803-6397262-9: 53711 - Naval Sea Systems Command (Active); Vendor Drawing; RNCC 7 RNVC 2 DAC 5

Datasheet 5310-01-413-0481

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Type [CRTM]: Chamfered
Material [MATT]: Plastic Polyamide Locking Insert
Material [MATT]: Steel Comp 316 Nut
Nominal Thread Size [CQJX]: 0.875 Inches
Nut Style [ACTA]: Hexagon
Nut Height [ADEA]: 0.786 Inches Minimum And 0.796 Inches Maximum
Locking Feature [AAUM]: Prevailing Torque With Nonmetallic Insert
Material Document And Classification [MDCL]: Astm D4066, Cl 1, Group 1 Assn Std Single Material Response Locking Insert
Thread Series [BZRR]: Unjc
Thread Quantity Per Inch [CMLP]: 9
Width Across Flats [ASDB]: 1.428 Inches Minimum And 1.444 Inches Maximum
Temp Rating [AZKQ]: 250.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand

Weapon Systems (WSDC) 5310-01-413-0481

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-01-413-0481

Last Stock Position:: 6739 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-01-413-0481

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe
Oct 2021: US Coast Guard (GP); EA; Subscribe
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe
Feb 2020: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5310-01-413-0481

Freight Information 5310-01-413-0481

5310-01-413-0481 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-413-0481 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-413-0481 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-413-0481 is not classified as a special type of cargo when transported by water. 5310-01-413-0481 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-01-413-0481

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5310-01-413-0481 31 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE5EY19F0127P00001: 03 Oct 2018; Subscribe; 2016; Subscribe; Subscribe
SPE5EY18F364R: 23 Aug 2018; Subscribe; 2945; Subscribe; Subscribe
SPE5EY18F9890: 26 Apr 2018; Subscribe; 2873; Subscribe; Subscribe
SPE5EY14D05020507: 10 Sep 2017; Subscribe; 2996; Subscribe; Subscribe
SPE5EY14D0502047402: 03 Aug 2017; Subscribe; 3896; Subscribe; Subscribe
SPE5EY14D05020452: 29 Jun 2017; Subscribe; 2711; Subscribe; Subscribe
SPE5EY14D05020435: 31 May 2017; Subscribe; 2507; Subscribe; Subscribe
SPE5EY14D05020413: 27 Apr 2017; Subscribe; 1735; Subscribe; Subscribe
SPE5EY14D05020387: 01 Mar 2017; Subscribe; 2843; Subscribe; Subscribe
SPE5EY14D05020302: 18 Aug 2016; Subscribe; 1895; Subscribe; Subscribe
SPE5EY14D05020281: 16 Jun 2016; Subscribe; 102; Subscribe; Subscribe
SPE5EY14D05020280: 14 Jun 2016; Subscribe; 116; Subscribe; Subscribe
SPE5EY14D05020279: 12 Jun 2016; Subscribe; 13; Subscribe; Subscribe
SPE5EY14D05020278: 10 Jun 2016; Subscribe; 10; Subscribe; Subscribe
SPE5EY14D05020277: 09 Jun 2016; Subscribe; 10; Subscribe; Subscribe
SPE5EY14D05020276: 08 Jun 2016; Subscribe; 13; Subscribe; Subscribe
SPE5EY14D05020275: 07 Jun 2016; Subscribe; 13; Subscribe; Subscribe
SPE5EY14D05020273: 05 Jun 2016; Subscribe; 13; Subscribe; Subscribe
SPE5EY14D05020269: 02 Jun 2016; Subscribe; 650; Subscribe; Subscribe
SPE5EY14D05020265: 01 Jun 2016; Subscribe; 902; Subscribe; Subscribe
SPM5AY10D00960031: 29 Aug 2014; Subscribe; 2041; Subscribe; Subscribe
SPM5AY10D00960030: 12 Aug 2014; Subscribe; 1746; Subscribe; Subscribe
SPM5AY10D00960029: 06 Jul 2014; Subscribe; 938; Subscribe; Subscribe
SPM5AY10D00960024: 12 Dec 2013; Subscribe; 4769; Subscribe; Subscribe
SPM5AY10D00960022: 28 Aug 2013; Subscribe; 5814; Subscribe; Subscribe
SPM5AY10D00960020: 31 Jul 2013; Subscribe; 2214; Subscribe; Subscribe
SPM5AY10D00960018: 03 Jul 2013; Subscribe; 1897; Subscribe; Subscribe
SPM5AY10D00960017: 05 Jun 2013; Subscribe; 4340; Subscribe; Subscribe
SPM5AY10D00960016: 01 May 2013; Subscribe; 1803; Subscribe; Subscribe
SPM5AY10D00960015: 25 Mar 2013; Subscribe; 9492; Subscribe; Subscribe
SPM5AY10D00960014: 27 Feb 2013; Subscribe; 1223; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-01-413-0481 April 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
