5310-01-406-7441
Blind Rivet Plain Nut
5310014067441 014067441 F003118S125V 1339AS762-3 S31-125CS1
A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE. View more Blind Rivet Plain Nut
November 2023
7
Marketplace 5310-01-406-7441
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-406-7441 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5310-01-406-7441 RQST NE Updated Every Day 5310-01-406-7441 RQST
Updated Every Day 5310-01-406-7441 RQST NE Related Documents 5310-01-406-7441 1+ Documents ( More...
Restrictions 5310-01-406-7441
5310-01-406-7441 is a Blind Rivet Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-406-7441
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-406-7441
- US Marine Corps (MC47)
- Effective Date:
- 1 May 2011
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Supplementary Collaborators:
- GTHD
Approved Sources 5310-01-406-7441
- Part Number
- Manufacturer
- Status
- F003118S125V
- Manufacturer
- 30279 - Urania Engineering Co., Inc. (Active)
- Primary Buy
- Primary Buy
- S31-125CS1
- 03481 - Bfgoodrich Co The Aerospace Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1339AS762-3
- 30003 - Naval Air Systems Command Managed (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5310-01-406-7441
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Nut Grip Range [ADEY]
- +0.030 To 0.125 Inches

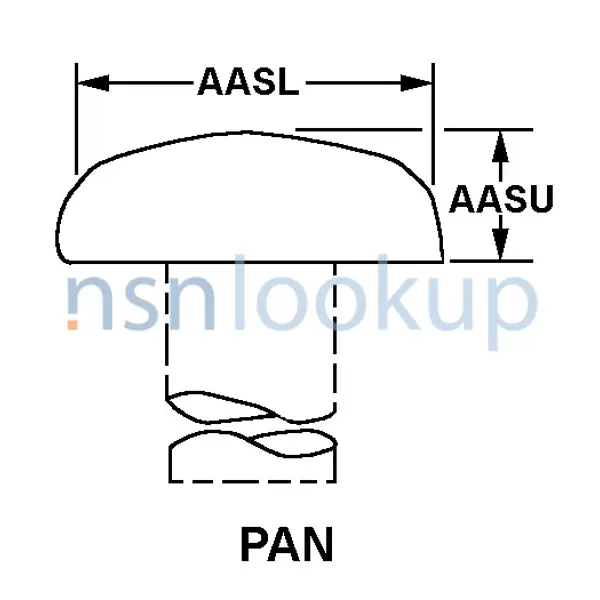

- Head Height [AASU]
- 0.062 Inches Nominal
- Head Diameter [AASL]
- 0.650 Inches Minimum And 0.680 Inches Maximum
- Head Style [AASK]
- Pan
- Material Document And Classification [MDCL]
- Qq-S-633 Fed Spec All Material Responses Overall
- Material [MATT]
- Steel Comp 1108 Overall Or Steel Comp 1110 Overall
- Nominal Thread Size [CQJX]
- 0.312 Inches
- Nut Diameter [ACTD]
- 0.409 Inches Minimum And 0.413 Inches Maximum
- Nut Length [ACVN]
- 0.735 Inches Minimum And 0.765 Inches Maximum
- Nut Style [ACTA]
- Blind Rivet W/Smooth Round Shank
- Shank End Type [ADFN]
- Closed
- Thread Series [BZRR]
- Unc
- Thread Quantity Per Inch [CMLP]
- 18
- Surface Treatment Document And Classification [STDC]
- Qq-P-416, Cl2, Ty2 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-01-406-7441
DLA Procurement Analysis 5310-01-406-7441
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-406-7441
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5310-01-406-7441
Freight Information 5310-01-406-7441
5310-01-406-7441 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-406-7441 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-406-7441 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-406-7441 is not classified as a special type of cargo when transported by water. 5310-01-406-7441 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
