5310-01-406-1672

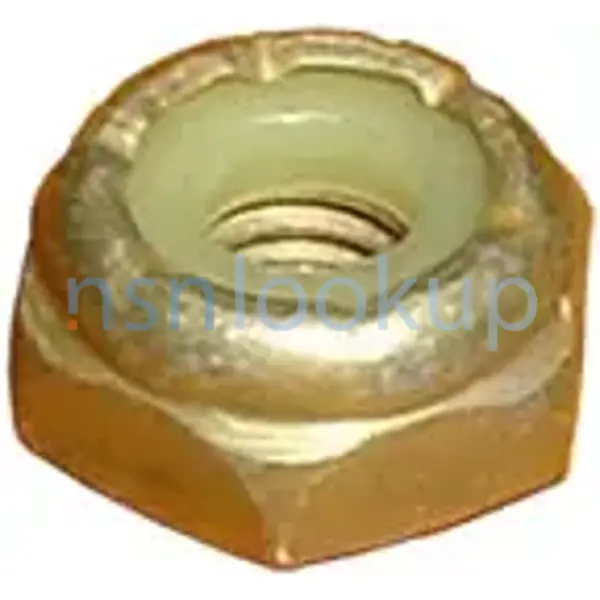

Hexagon Self-Locking Nut
5310014061672 014061672 MS21083N3 21NTE102 88-21930-4
A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut
Managed by United States
NSN Created on 22 Dec 1994
Data Last Changed
September 2024
September 2024
NATO Update Count
8
8
NATO Data Quality
Marketplace 5310-01-406-1672
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-406-1672 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-53/fsc-5310/us
/fsg-53/fsc-5310/us
5310-01-406-1672 Hexagon Self-Locking Nut 5310014061672
MS21083N3 21NTE102 88-21930-4 A nut having a flat bottom and 6 sides.
NUT 550 HD NS Request Quotation 88-21930-4 NUT 100 HD NS Request Quotation 88-21930-4 NUT 180 HD NS
MS21083N3 NUT,SELF-LOCKING,HEXAGON 20 HD NS Request Quotation Updated Every Day 5310-01-406-1672 RQST
NUT 550 HD NS Request Quotation 88-21930-4 NUT 100 HD NS Request Quotation 88-21930-4 NUT 180 HD NS
MS21083N3 NUT,SELF-LOCKING,HEXAGON 20 HD NS Request Quotation Updated Every Day 5310-01-406-1672 RQST
https//www.nsnlookup.com
/fsg-53/fsc-5310/us
/fsg-53/fsc-5310/us
5310-00-366-3241 Hexagon Self-Locking Nut 5310003663241
MS21083N3 NUT,SELF-LOCKING,HEXAGON 253 EA NS Request Quotation Subscribe to View Vendor Details...
MS21083N3 NUT,SELF-LOCKING,HEXAGON 5 EA NS Request Quotation Subscribe to View Vendor Details...
MS21083N3 NUT,SELF-LOCKING,HEXAGON 38 EA NS Request Quotation Subscribe to View Vendor Details...
MS21083N3 NUT,SELF-LOCKING,HEXAGON 5 EA NS Request Quotation Subscribe to View Vendor Details...
MS21083N3 NUT,SELF-LOCKING,HEXAGON 38 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com
/fsg-53/fsc-5310/us
/fsg-53/fsc-5310/us
5310-00-570-5959 Hexagon Self-Locking Nut 5310005705959
MS21083N3 NUT,SELF-LOCKING,HEXAGON 253 EA NS Request Quotation Subscribe to View Vendor Details...
MS21083N3 NUT,SELF-LOCKING,HEXAGON 2 EA NS Request Quotation 10525 NUT,SELF-LOCKING,HEXAGON 15 EA NS
MS21083N3 NUT,SELF-LOCKING,HEXAGON 106 EA NS Request Quotation MS20364-1032 NUT,SELF-LOCKING,HEXAGON
MS21083N3 NUT,SELF-LOCKING,HEXAGON 2 EA NS Request Quotation 10525 NUT,SELF-LOCKING,HEXAGON 15 EA NS
MS21083N3 NUT,SELF-LOCKING,HEXAGON 106 EA NS Request Quotation MS20364-1032 NUT,SELF-LOCKING,HEXAGON
https//www.nsnlookup.com
/fsg-53/fsc-5310/au
/fsg-53/fsc-5310/au
5310-66-088-3954 Hexagon Self-Locking Nut 5310660883954
541-0031 5310-00-579-1780 5310-20-000-0446 5310-00-877-5797 5310-14-497-2669 5310-01-466-4813 5310-01-406-1672
https//www.nsnlookup.com
/fsg-53/fsc-5310/us
/fsg-53/fsc-5310/us
5310-01-609-0081 Hexagon Self-Locking Nut 5310016090081
541-0031 5310-00-579-1780 5310-20-000-0446 5310-00-877-5797 5310-14-497-2669 5310-01-466-4813 5310-01-406-1672
Restrictions 5310-01-406-1672
5310-01-406-1672 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-406-1672
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-406-1672
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDKE
- Spain (YB01)
- Effective Date:
- 1 Dec 1996
- New Zealand (ZE01)
- Effective Date:
- 1 Sep 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1997
Approved Sources 5310-01-406-1672
- Part Number
- Manufacturer
- Status
- MS21083N3
- Manufacturer
- 08928 - Abbott-Interfast Corp (Active)
- Primary Buy
- Primary Buy
- 21NTE102
- 08928 - Abbott-Interfast Corp (Active)
- Secondary Buy
- Secondary Buy
- 88-21930-4
- 30554 - Department Of Defense Project (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5310-01-406-1672
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Bearing Surface Type [CRTM]
- Chamfered Or Washer Faced
- Material [MATT]
- Plastic Polyamide Locking Insert
- Material [MATT]
- Steel Nut
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Nut Height [ADEA]
- 0.188 Inches Nominal
- Nut Style [ACTA]
- Hexagon
- Locking Feature [AAUM]
- Prevailing Torque With Nonmetallic Insert
- Thread Series [BZRR]
- Unf
- Thread Quantity Per Inch [CMLP]
- 32
- Width Across Flats [ASDB]
- 0.359 Inches Minimum And 0.375 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Astm B633 Assn Std Single Treatment Response Nut
- Surface Treatment [SFTT]
- Zinc Nut And Chromate Nut
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-01-406-1672
DLA Procurement Analysis 5310-01-406-1672
- Last Stock Position:
- 41600 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-406-1672
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-01-406-1672
Freight Information 5310-01-406-1672
5310-01-406-1672 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-406-1672 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-406-1672 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-406-1672 is not classified as a special type of cargo when transported by water. 5310-01-406-1672 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-406-1672
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-01-406-1672 2 Records
Contracting Technical Data File (CTDF) 5310-01-406-1672 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
