5310-01-397-3362
Plate Plain Nut
5310013973362 013973362 3341112-5
A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding, intergral prongs or by bonding. View more Plate Plain Nut
May 2023
2
Marketplace 5310-01-397-3362
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-397-3362 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5310-01-397-3362 RQST NE Updated Every Day 5310-01-397-3362 RQST
Updated Every Day 5310-01-397-3362 RQST NE Related Documents 5310-01-397-3362 1+ Documents ( More...
Restrictions 5310-01-397-3362
5310-01-397-3362 is a Plate Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-397-3362
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-397-3362
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5310-01-397-3362
- Part Number
- Manufacturer
- Status
- 3341112-5
- Manufacturer
- 98897 - Lockheed Martin Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-397-3362
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Distance From Mounting Hole Center To Base [ADFV]
- 0.200 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Width [ADFX]
- 1.080 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 1.950 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-250/4 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 2024 Overall

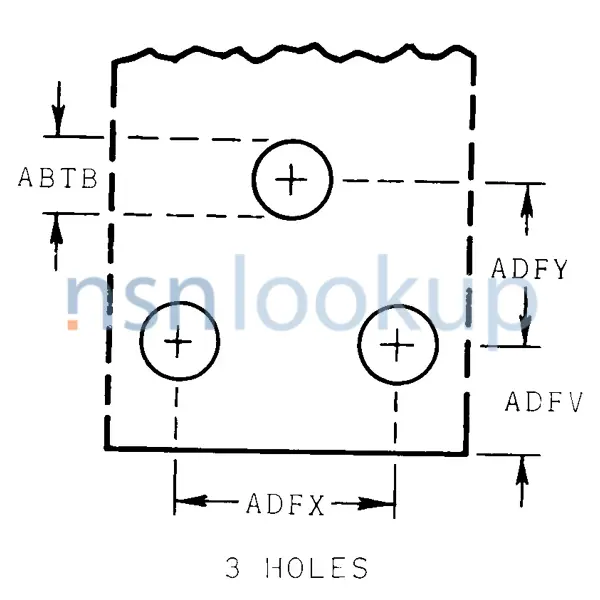

- Mounting Hole Arrangement Style [ADFU]
- 3 Holes
- Mounting Hole Diameter [ABTB]
- 0.143 Inches Minimum And 0.149 Inches Maximum
- Nut Length [ACVN]
- 2.350 Inches Nominal
- Nut Mounting Provision [ADFP]
- Straight Holes
- Plate Width [ADEC]
- 1.500 Inches Nominal
DLA Procurement Analysis 5310-01-397-3362
Management Data 5310-01-397-3362
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5310-01-397-3362
Freight Information 5310-01-397-3362
5310-01-397-3362 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-397-3362 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-397-3362 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-01-397-3362 is not classified as a special type of cargo when transported by water. 5310-01-397-3362 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5310-01-397-3362 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
