Premium Information is available for this item - Upgrade for $1 a day

5310-01-369-3332

Hexagon Self-Locking Nut

5310013693332 013693332 ISO 7042-M8X1.25A20D J10109 DIN980VM8X1,25 10-A2D 12414315-006 12414315

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 22 Dec 1992

Data Last Changed
November 2023

NATO Update Count
15

NATO Data Quality

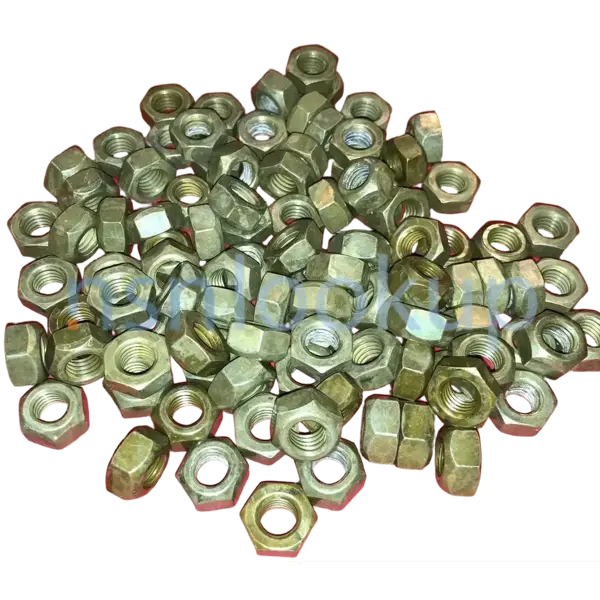

5310-01-369-3332 NUT,SELF-LOCKING,HEXAGON 5310013693332 013693332 1/1 — NSN 5310-01-369-3332 (Generic Image) 1/1

Marketplace 5310-01-369-3332

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

12414315-006 NUT,SELF-LOCKING,HEXAGON 10000 EA NS

Subscribe to View Vendor Details...

12414.315.006 NUT,SELF-LOCKING,HEXAGON 5800 EA NS

Subscribe to View Vendor Details...

12414315-006 NUT,SELF-LOCKING,HEXAGON 1 EA NS

Updated Every Day

5310-01-369-3332 RQST NE

Updated Every Day

5310-01-369-3332 RQST

Updated Every Day

5310-01-369-3332 RQST NE

Restrictions 5310-01-369-3332

5310-01-369-3332 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-01-369-3332

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-01-369-3332

US Army (A919)
Effective Date:: 1 Jun 2005
Former MOE Rule:: A187
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY AZ

US Marine Corps (MC47)
Effective Date:: 1 Jun 2005
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC G IMC Z IMCACTY GH

New Zealand (ZE01)
Effective Date:: 1 Feb 2007

Greece (ZU01)
Effective Date:: 1 May 2006

Approved Sources 5310-01-369-3332

Part Number
Manufacturer
Status
12414315-006: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
ISO 7042-M8X1.25A20D: I9008 - International Organization For (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
J10109: 7041B - Uro Vehiculos Especiales Sa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
DIN980VM8X1,25 10-A2D: D8286 - Din Deutsches Institut Fur Normung (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
12414315-006: 076M6 - Bae Systems Land & Armaments L.P. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
12414315-006: 0FW39 - Bae Systems Tactical Vehicle Systems (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
12414315: 19207 - U S Army Tank Automotive Command (Active); Informational Drawing; RNCC D RNVC 9 MEDALS DAC 1

Datasheet 5310-01-369-3332

Characteristic
Specifications
FIIG: A021A0
Nominal Thread Size [CQJX]: 8.0 Millimeters
Thread Direction [AAJF]: Right-Hand
Material [MATT]: Steel Property Class 10.9 Overall
Surface Treatment [SFTT]: Zinc Overall
Nut Height [ADEA]: 6.5 Millimeters Nominal
Width Across Flats [ASDB]: 13.0 Millimeters Nominal
Bearing Surface Type [CRTM]: Washer Faced
Locking Feature [AAUM]: Prevailing Torque All Metal Design
End Item Identification [AGAV]: Mrap - Common Nsn - Used On 3 Mrap Variants And 1 Other Weapon System

Weapon Systems (WSDC) 5310-01-369-3332

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-01-369-3332

Last Stock Position:: 2630 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-01-369-3332

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe
Oct 2021: Department of the Army (DA); EA; Subscribe
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe
Oct 2019: Department of the Army (DA); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-01-369-3332

Freight Information 5310-01-369-3332

5310-01-369-3332 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-369-3332 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-369-3332 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-369-3332 is not classified as a special type of cargo when transported by water. 5310-01-369-3332 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-01-369-3332

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-01-369-3332 1 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623V131F: 11 Apr 2023; Subscribe; 1246; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-01-369-3332 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
