5310-01-357-7666
Double Hexagon Extended Washer Self-Locking Nut
5310013577666 013577666 9235390-03 42FLW820 42FLW-820
A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Double Hexagon Extended Washer Self-Locking Nut
November 2023
16
Marketplace 5310-01-357-7666
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5310-01-357-7666 5+ Documents (More...)

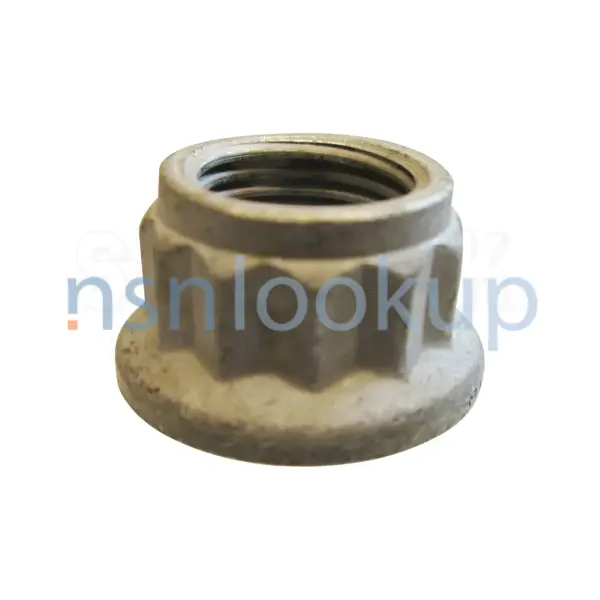

Photo 1/2 NSN 5310-01-357-7666 (Identification) 2/2 - - 1.
United States (US) 4. 5310-01-357-7666 Marketplace Restrictions Approved Sources Datasheet Management
5310013577666 013577666,9235390-03 357-7666Double Hexagon Extended Washer Self-Locking Nut5310013577666
013577666 9235390-03 42FLW820 42FLW-820 SELF-LOCKING,DOUBLE HEXAGON 97 EA NS Request Quotation https
9235390-03 42FLW820 JavaScript in your web browser . 5310-01-702-4156Double https//www.nsnlookup.com
https// https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-357-7666 5310013577666 013577666,9235390
NUT,SELF-LOCKING,DOUBLE HEXAGON 99 EA NS Request Quotation Subscribe to View Vendor Details... 42FLW820
NUT,SELF-LOCKING,DOUBLE HEXAGON 24 EA NS Request Quotation Subscribe to View Vendor Details... 42FLW820
Restrictions 5310-01-357-7666
5310-01-357-7666 is a Double Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-357-7666
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-357-7666
- US Air Force (FUGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FUKZ
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Australia (ZA01)
- Effective Date:
- 1 Jan 2014
- Netherlands (ZN01)
- Effective Date:
- 1 Mar 2011
- Italy (ZR01)
- Effective Date:
- 1 Jan 2007
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5310-01-357-7666
- Part Number
- Manufacturer
- Status
- 9235390-03
- Manufacturer
- 98747 - Ogden Air Logistics Center (Active)
- Source Control
- Source Control
- 42FLW820
- 56878 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- 42FLW-820
- A0170 - Leonardo Spa Aerostructure Division (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5310-01-357-7666
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Criticality Code Justification [CRTL]
- Spcl
- Hardness Rating [CQFM]
- 34.0 Rockwell C Minimum And 43.0 Rockwell C Maximum
- Material Document And Classification [MDCL]
- Ms6280 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.500 Inches
- Nut Style [ACTA]
- Double Hexagon
- Locking Feature [AAUM]
- Free-Running All Metal Design
- Overall Height [ABKW]
- 0.539 Inches Minimum And 0.559 Inches Maximum
- Special Features [FEAT]
- Used On (25500) 5002371-4 Wheel Assy's Of A-10 Mlg Acft
- Thread Series [BZRR]
- Unjf
- Washer Thickness [ADEM]
- 0.064 Inches Minimum And 0.084 Inches Maximum
- Washer Outside Diameter [AAVX]
- 0.813 Inches Minimum And 0.833 Inches Maximum
- Width Across Flats [ASDB]
- 0.616 Inches Minimum And 0.627 Inches Maximum
- Special Test Features [SPCL]
- Must Be Qualified In Accordance With Applicable Oem Wheel Qualification Specification
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Temp Rating [AZKQ]
- 450.0 Deg Fahrenheit Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3B
- Thread Quantity Per Inch [CMLP]
- 20
Weapon Systems (WSDC) 5310-01-357-7666
DLA Procurement Analysis 5310-01-357-7666
- Last Stock Position:
- 5346 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-357-7666
Similar Supply Items to 5310-01-357-7666
Freight Information 5310-01-357-7666
5310-01-357-7666 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-357-7666 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-357-7666 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-01-357-7666 is not classified as a special type of cargo when transported by water. 5310-01-357-7666 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-357-7666
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5310-01-357-7666 15 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623FB4NN
- 11 Jul 2023
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB4NN
- 11 Jul 2023
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- SPE4A623PG720
- 27 Mar 2023
- Subscribe
- 204
- Subscribe
- Subscribe
- Subscribe
- SPE4A722P1501
- 28 Oct 2021
- Subscribe
- 1985
- Subscribe
- Subscribe
- Subscribe
- SPE4A721PB284
- 30 Jun 2021
- Subscribe
- 813
- Subscribe
- Subscribe
- Subscribe
- SPE4A721P6182
- 27 Feb 2021
- Subscribe
- 1267
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F010Y
- 08 May 2018
- Subscribe
- 7667
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F3651
- 05 Jan 2018
- Subscribe
- 5376
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F1949
- 21 Nov 2017
- Subscribe
- 3433
- Subscribe
- Subscribe
- Subscribe
- SPE4A417VA064P00001
- 22 Sep 2017
- Subscribe
- 3356
- Subscribe
- Subscribe
- Subscribe
- SPE4A717PD859
- 18 Aug 2017
- Subscribe
- 4747
- Subscribe
- Subscribe
- Subscribe
- SPE4A717V1496
- 24 May 2017
- Subscribe
- 3975
- Subscribe
- Subscribe
- Subscribe
- SPE5E017V2250
- 15 Feb 2017
- Subscribe
- 3750
- Subscribe
- Subscribe
- Subscribe
- SPE5E816V6764
- 04 Aug 2016
- Subscribe
- 2775
- Subscribe
- Subscribe
- Subscribe
- SPE5E814V4484
- 14 Apr 2014
- Subscribe
- 2570
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5310-01-357-7666 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
