5310-01-345-1813
Plate Self-Locking Nut
5310013451813 013451813 MS21075L08A MS21075-L08 NAS1068A08 MS21075L08N 5310PL1694698 5310PL0576957
A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member. View more Plate Self-Locking Nut
Managed by United States
NSN Created on 13 Sep 1991
Data Last Changed
November 2023
November 2023
NATO Update Count
41
41
NATO Data Quality
Marketplace 5310-01-345-1813
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
MS21075L08 NUT,SELF-LOCKING,PLATE 1 EA NS
MS21075L08N NUT,SELF-LOCKING,PLATE 15 EA NS
NAS1068A08 NUT,SELF-LOCKING,PLATE 63 EA NS
MS21075L08 NUT,SELF-LOCKING,PLATE 170 EA NS
MS21075L08N NUT,SELF-LOCKING,PLATE 2577 EA NS
NAS1068A08 NUT,SELF-LOCKING,PLATE 170 EA NS
Updated Every Day 5310-01-345-1813 RQST NE
Updated Every Day 5310-01-345-1813 RQST
Updated Every Day 5310-01-345-1813 RQST NE
Related Documents 5310-01-345-1813 5+ Documents (More...)
MS21075L08A MS21075-L08 NAS1068A08 MS21075L08N 5310PL1694698 5310PL0576957 A nut with a flanged base

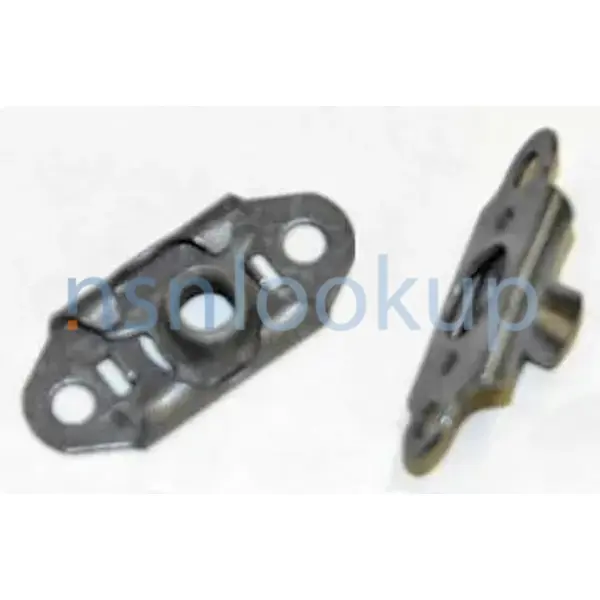

Photo 1/3 NSN 5310-01-345-1813 (Identification) 2/3 NSN 5310-01-345-1813 (Identification) 3/3 -
MS21075L08N NUT 141 EA NS Request Quotation MS21075L08N NUT 1 EA NS Request Quotation Subscribe to View
Photo 1/3 NSN 5310-01-345-1813 (Identification) 2/3 NSN 5310-01-345-1813 (Identification) 3/3 -
MS21075L08N NUT 141 EA NS Request Quotation MS21075L08N NUT 1 EA NS Request Quotation Subscribe to View
NAS1068A08 NUT,SELF-LOCKING,PLATE 68 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 36 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 36 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 68 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 36 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 36 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 68 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 36 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 36 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 68 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 3 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 2 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1068A08 NUT,SELF-LOCKING,PLATE 3 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5310-01-345-1813
5310-01-345-1813 is a Plate Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-345-1813
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-345-1813
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEJBHD
- Hungary (WH01)
- Effective Date:
- 1 Aug 2008
- Slovenia (WL01)
- Effective Date:
- 1 Jan 2007
- Poland (WP01)
- Effective Date:
- 1 Oct 2004
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Jun 1999
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Feb 2001
- Malaysia (YW01)
- Effective Date:
- 1 Nov 2007
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Jan 2002
- Canada (ZC01)
- Effective Date:
- 1 Oct 2011
- South Africa (ZD01)
- Effective Date:
- 1 Oct 2013
- New Zealand (ZE01)
- Effective Date:
- 1 Nov 2003
- France (ZF01)
- Effective Date:
- 1 Oct 2007
- Germany (ZG01)
- Effective Date:
- 1 Aug 2001
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2000
- United Kingdom (ZK01)
- Effective Date:
- 1 Mar 1999
- Netherlands (ZN01)
- Effective Date:
- 1 May 2002
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2007
- Italy (ZR01)
- Effective Date:
- 1 Dec 2014
- Denmark (ZS01)
- Effective Date:
- 1 Sep 2014
- Norway (ZT01)
- Effective Date:
- 1 Sep 1994
- Greece (ZU01)
- Effective Date:
- 1 May 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5310-01-345-1813
- Part Number
- Manufacturer
- Status
- MS21075L08N
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS21075L08N
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310PL1694698
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5310PL0576957
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- MS21075L08A
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
- MS21075-L08
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
- NAS1068A08
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5310-01-345-1813
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Distance From Aperture Center To Mounting Hole Center [ADFW]
- 0.229 Inches Minimum And 0.239 Inches Maximum
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 0.463 Inches Minimum And 0.473 Inches Maximum
- Features Provided [CBBL]
- Floating Nut
- Hardness Rating [CQFM]
- 49.0 Rockwell C Maximum
- Material [MATT]
- Steel Overall
- Mounting Hole Arrangement Style [ADFU]
- 2 Holes
- Mounting Hole Diameter [ABTB]
- 0.098 Inches Minimum And 0.103 Inches Maximum
- Nominal Thread Size [CQJX]
- 0.164 Inches
- Nut Height [ADEA]
- 0.250 Inches Maximum
- Nut Length [ACVN]
- 0.707 Inches Maximum
- Nut Mounting Provision [ADFP]
- Straight Holes
- Nut Style [ACTA]
- Plate
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design
- Lubrication [ABAJ]
- Dry Film Lubricant
- Plate Thickness [ADEB]
- 0.140 Inches Maximum
- Plate Width [ADEC]
- 0.290 Inches Minimum And 0.367 Inches Maximum
- Thread Series [BZRR]
- Unjc
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Temp Rating [AZKQ]
- 450.0 Deg Fahrenheit Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3B
- Thread Quantity Per Inch [CMLP]
- 32
Weapon Systems (WSDC) 5310-01-345-1813
DLA Procurement Analysis 5310-01-345-1813
- Last Stock Position:
- 11296 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-345-1813
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Sep 2021
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5310-00-772-3721
- 0
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-01-345-1813
Freight Information 5310-01-345-1813
5310-01-345-1813 has freight characteristics managed by Australia.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-345-1813 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-345-1813 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-345-1813 is not classified as a special type of cargo when transported by water. 5310-01-345-1813 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-345-1813
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-01-345-1813 1 Records
Contracting Technical Data File (CTDF) 5310-01-345-1813 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
