5310-01-320-8628

Welding Plain Nut

5310013208628 013208628 N0235P00020 N235P20

A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted. View more Welding Plain Nut

5310-01-320-8628 NUT,PLAIN,WELDING 5310013208628 013208628

Managed by United States
NSN Created on 5 Jun 1990
Data Last Changed
May 2023
NATO Update Count
7
NATO Data Quality

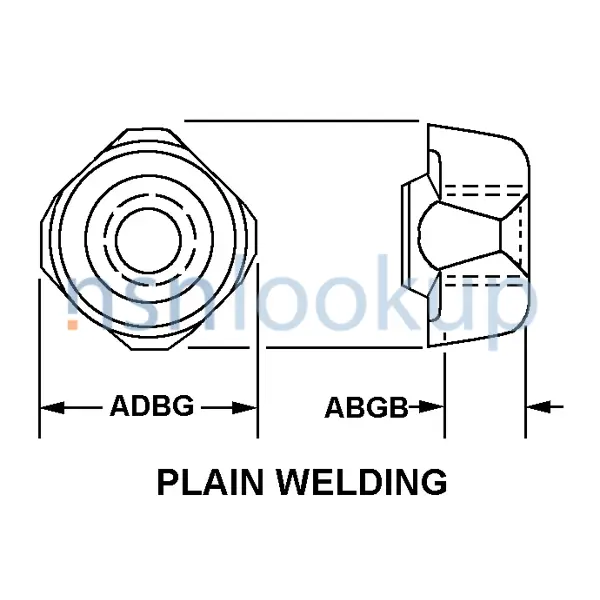

ACTA Style A242 for 5310-01-320-8628 1/1
NSN 5310-01-320-8628 (Identification) 1/1

5310-01-320-8628 Stock and Availability Marketplace 5310-01-320-8628

Need Help?
Request a Quotation from participating marketplace vendors
eBay Updated Every Day
5310-01-320-8628 RQST NE eBay
eBay Updated Every Day
5310-01-320-8628 RQST eBay
Amazon Updated Every Day
5310-01-320-8628 RQST NE Amazon

5310-01-320-8628 Related Documents Related Documents 5310-01-320-8628 1+ Documents (More...)

N0235P00020 N235P20 A nut with projection(s) that is/are designed to localize heating, during welding
United States (US) 4. 5310-01-320-8628 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5310-01-320-8628 RQST Updated Every Day 5310-01-320-8628 RQST NE Related Documents

5310-01-320-8628 Demil Restrictions 5310-01-320-8628

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5310-01-320-8628 is a Welding Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5310-01-320-8628 HTS and ScheduleB Import and Export 5310-01-320-8628

5310-01-320-8628 End Users End Users 5310-01-320-8628

US Navy (N9BZ)
Effective Date:
1 Mar 2006
Former MOE Rule:
N9ZD
Supplementary Collaborators:
HD
Spain (YB01)
Effective Date:
1 Feb 1994

5310-01-320-8628 Manufacturers Approved Sources 5310-01-320-8628

5310-01-320-8628 Technical Data Datasheet 5310-01-320-8628

Characteristic
Specifications
FIIG
A021A0
Thread Series [BZRR]
Unf
Nominal Thread Size [CQJX]
0.250 Inches
Thread Quantity Per Inch [CMLP]
28
Thread Class [AAJD]
2B
Thread Direction [AAJF]
Right-Hand
Material [MATT]
Steel Comp 1108 Overall
Nut Style [ACTA]
Plain Welding
Width Across Corners [ABGB]
0.156 Inches Nominal
Nut Thickness [ADBG]
0.625 Inches Nominal
Countersink Angle [CRSQ]
90.0 Degrees Nominal Second End

5310-01-320-8628 Stock, Inventory and Procurement DLA Procurement Analysis 5310-01-320-8628

DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

5310-01-320-8628 Management Data Management Data 5310-01-320-8628

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Navy (DN)
EA
Subscribe
1
Oct 2021
Department of the Navy (DN)
EA
Subscribe
1
Oct 2020
Department of the Navy (DN)
EA
Subscribe
1
Oct 2019
Department of the Navy (DN)
EA
Subscribe

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

5310-01-320-8628 Related Items NATO Stock Numbers Related to 5310-01-320-8628

5310-01-320-8628 Freight Data Freight Information 5310-01-320-8628

5310-01-320-8628 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-320-8628 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-320-8628 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-320-8628 is not classified as a special type of cargo when transported by water. 5310-01-320-8628 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

5310-01-320-8628 Packaging Data Packaging Data 5310-01-320-8628

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Bare Metal Item
2lb or less, one dimension 2" or less, other dimensions less than 24"
Above 110G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
--
--
--
Physical Protection
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
No Requirement
No Requirement
No Requirement
Not Applicable
Any Suitable Container
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
--

5310-01-320-8628 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 5310-01-320-8628 February 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
