5310-01-307-0675
Recessed Washer
5310013070675 013070675 2-103-039-01
A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED. View more Recessed Washer
November 2023
14
Marketplace 5310-01-307-0675
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-307-0675 1+ Documents (More...)
WASEHR 3 EA NS Request Quotation Updated Every Day 5310-01-307-0675 RQST NE Updated Every Day 5310
-01-307-0675 RQST Updated Every Day 5310-01-307-0675 RQST NE Related Documents 5310-01-307-0675 1+ Documents
Restrictions 5310-01-307-0675
5310-01-307-0675 is a Recessed Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-307-0675
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-307-0675
- US Army (A919)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CLCT
- Spain (YB01)
- Effective Date:
- 1 Oct 2009
- Malaysia (YW01)
- Effective Date:
- 1 May 2000
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Sep 2001
- Netherlands (ZN01)
- Effective Date:
- 1 Nov 2001
Approved Sources 5310-01-307-0675
- Part Number
- Manufacturer
- Status
- 2-103-039-01
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 2-103-039-01
- A0189 - Piaggio Aero Industries Spa (Active)
- Secondary Buy
- Secondary Buy

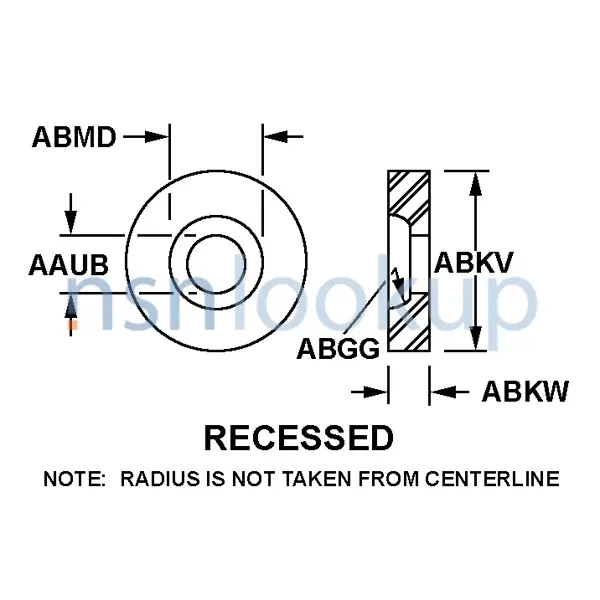

Datasheet 5310-01-307-0675
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Hole Diameter [AAUB]
- 0.443 Inches Minimum And 0.449 Inches Maximum
- Material [MATT]
- Nickel Alloy 718 Overall
- Outside Diameter [ABKV]
- 0.715 Inches Minimum And 0.725 Inches Maximum
- Material Document And Classification [MDCL]
- Ams5663 Assn Std Single Material Response Overall
- Recess Diameter [ABMD]
- 0.559 Inches Minimum And 0.569 Inches Maximum
- Overall Height [ABKW]
- 0.090 Inches Minimum And 0.110 Inches Maximum
- Style Designator [STYL]
- Recessed
Weapon Systems (WSDC) 5310-01-307-0675
DLA Procurement Analysis 5310-01-307-0675
- Last Stock Position:
- 4976 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-01-307-0675
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5310-01-307-0675
Freight Information 5310-01-307-0675
5310-01-307-0675 has freight characteristics managed by Canada.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-307-0675 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-307-0675 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5310-01-307-0675 is not classified as a special type of cargo when transported by water. 5310-01-307-0675 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-307-0675
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 5310-01-307-0675 3 Records
Contracting Technical Data File (CTDF) 5310-01-307-0675 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
