5310-01-281-5645
Clip-On Nut
5310012815645 012815645 1204-37 C31368-1420
An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means. View more Clip-On Nut
August 2023
4
Marketplace 5310-01-281-5645
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-281-5645 1+ Documents (More...)
Quotation FedMall Updated Every 15 Minutes 5310-01-281-5645 BUY NE FedMall Updated Every Day 5310-01
-281-5645 RQST NE Updated Every Day 5310-01-281-5645 RQST Updated Every Day 5310-01-281-5645 RQST NE
Restrictions 5310-01-281-5645
5310-01-281-5645 is a Clip-On Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-281-5645
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-281-5645
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5310-01-281-5645
- Part Number
- Manufacturer
- Status
- 1204-37
- Manufacturer
- 81495 - Koehring Cranes, Inc (Active)
- Primary Buy
- Primary Buy
- C31368-1420
- 78553 - Tinnerman Palnut Engineered (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5310-01-281-5645
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0

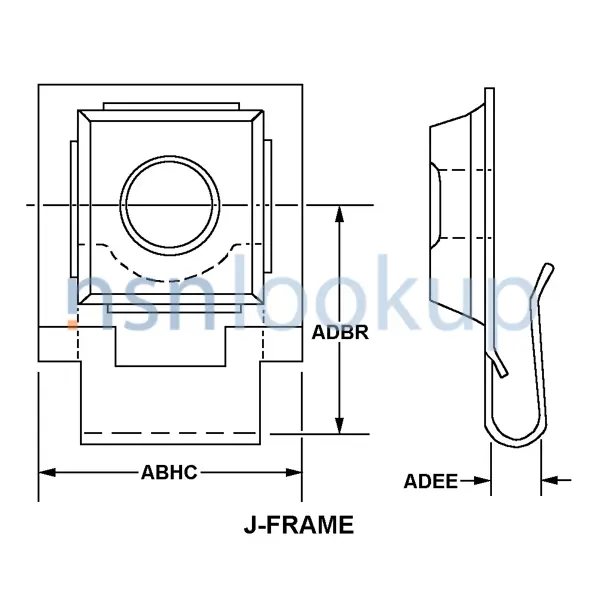

- Distance From Base To Center Of Aperture [ADBR]
- 0.840 Inches Maximum
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Nut Style [ACTA]
- J-Frame
- Lubrication [ABAJ]
- Soluble Lubricant
- Overall Width [ABHC]
- 0.750 Inches Nominal
- Panel Thickness [ADEE]
- 0.120 Inches Minimum And 0.130 Inches Maximum
- Thread Series [BZRR]
- Unc
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2B
- Thread Quantity Per Inch [CMLP]
- 20
Weapon Systems (WSDC) 5310-01-281-5645
DLA Procurement Analysis 5310-01-281-5645
Management Data 5310-01-281-5645
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-01-281-5645
Freight Information 5310-01-281-5645
5310-01-281-5645 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-281-5645 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-281-5645 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5310-01-281-5645 is not classified as a special type of cargo when transported by water. 5310-01-281-5645 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-281-5645
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
