5310-01-270-3708
Sleeve Nut
5310012703708 012703708 74D111355-2105
An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY. View more Sleeve Nut
August 2023
4
Marketplace 5310-01-270-3708
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-270-3708 1+ Documents (More...)
RQST NE Updated Every Day 5310-01-270-3708 RQST Updated Every Day 5310-01-270-3708 RQST NE Related Documents
5310-01-270-3708 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-270-3708
Restrictions 5310-01-270-3708
5310-01-270-3708 is a Sleeve Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-270-3708
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-270-3708
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Spain (YB01)
- Effective Date:
- 1 Jul 2002
- Australia (ZA01)
- Effective Date:
- 1 Apr 2013
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-01-270-3708
- Part Number
- Manufacturer
- Status
- 74D111355-2105
- Manufacturer
- 76301 - The Boeing Company (Active)
- Primary Buy
- Primary Buy

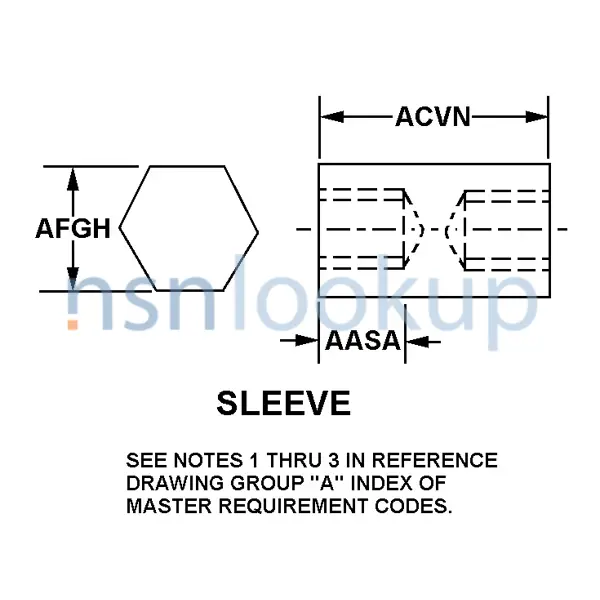

Datasheet 5310-01-270-3708
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Counterbore Diameter [AAWY]
- 0.265 Inches Minimum Second End And 0.295 Inches Maximum Second End
- Countersink Angle [CRSQ]
- 89.0 Degrees Minimum Second End And 91.0 Degrees Maximum Second End
- Cross-Sectional Shape [ANLR]
- Round Nut
- Hardness Rating [CQFM]
- 35.0 Rockwell C Maximum
- Material [MATT]
- Steel Comp 416 Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Nut Length [ACVN]
- 0.750 Inches Nominal
- Nut Style [ACTA]
- Sleeve
- Nut Width Across Flats [AFGH]
- 0.500 Inches Nominal
- Material Document And Classification [MDCL]
- Ams 5610 Assn Std Single Material Response Overall
- Thread Series [BZRR]
- Unjf
- Temp Rating [AZKQ]
- 1000.0 Deg Fahrenheit Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3B
- Thread Length [AASA]
- 0.380 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 28
Weapon Systems (WSDC) 5310-01-270-3708
DLA Procurement Analysis 5310-01-270-3708
Management Data 5310-01-270-3708
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5310-01-270-3708
Freight Information 5310-01-270-3708
5310-01-270-3708 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-270-3708 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-270-3708 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-270-3708 is not classified as a special type of cargo when transported by water. 5310-01-270-3708 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-270-3708
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-01-270-3708 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E718V0964
- 28 Nov 2017
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE5E417V2241
- 07 Dec 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE5E716V3918
- 28 Jun 2016
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPM5E714MQ007
- 09 Oct 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM5E713MQ199
- 17 Sep 2013
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5310-01-270-3708 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
