5310-01-150-4003

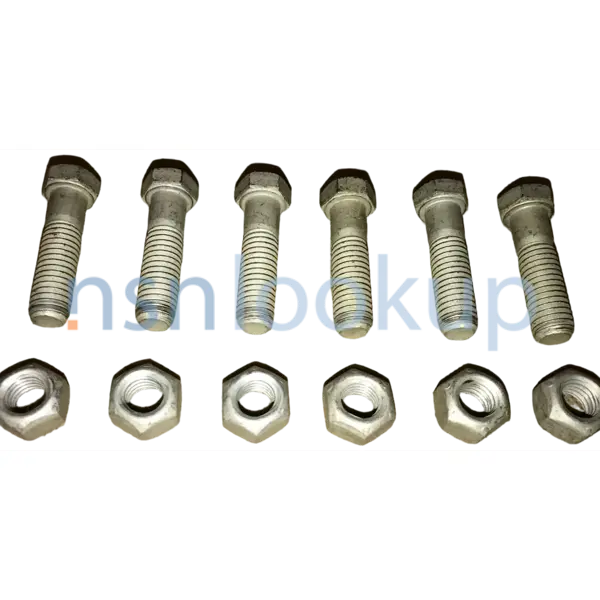

Hexagon Self-Locking Nut

5310011504003 011504003 9442901 5590580 9422299 5310PL0647801

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 4 Apr 1983

Data Last Changed
November 2023

NATO Update Count
22

NATO Data Quality

ACTA Style A12 for 5310-01-150-4003 1/1 — NSN 5310-01-150-4003 (Identification) 1/1

Marketplace 5310-01-150-4003

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5310-01-150-4003 NUT,SELF-LOCKING,HEXAGON 90 EA NS

Subscribe to View Vendor Details...

9422299 NUT,SELF-LOCKING,HEXAGON 2 EA NS

Subscribe to View Vendor Details...

9422299 NUT SELF-LOCKING HEXAGON 4600 EA NS

9422299 NUT, SELF LOCKING 50 EA NS

Subscribe to View Vendor Details...

NUTSELFLOCKINGCUCV NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

9422299 NUT,SELF-LOCKING,HEXAGON 276 EA NS

Subscribe to View Vendor Details...

011504003.5310 NUT,SELF-LOCKING,HEXAGON 193 EA NS

5310-01-150-4003 RQST NE

Updated Every Day

5310-01-150-4003 RQST

Updated Every Day

5310-01-150-4003 RQST NE

Restrictions 5310-01-150-4003

5310-01-150-4003 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-01-150-4003

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-01-150-4003

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTBDAZ; AMC 1 AMSC P IMC Z IMCACTY AZ

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC P IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC P IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC P IMC Z IMCACTY GH

Lithuania (WI01)
Effective Date:: 1 Jul 2000

Slovenia (WL01)
Effective Date:: 1 Oct 2008

Poland (WP01)
Effective Date:: 1 Apr 2012

Spain (YB01)
Effective Date:: 1 Jun 2003

Denmark (ZS01)
Effective Date:: 1 Aug 1997

Greece (ZU01)
Effective Date:: 1 Apr 2006

Turkey (ZW01)
Effective Date:: 1 Mar 2005

Approved Sources 5310-01-150-4003

Part Number
Manufacturer
Status
9442901: 7X677 - General Motors Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
5590580: 34623 - Am General Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
9422299: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
9422299: 7X677 - General Motors Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
9422299: 11862 - General Motors Corp Chevrolet Motor (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
5310PL0647801: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5310-01-150-4003

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Type [CRTM]: Chamfered
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.438 Inches
Nut Height [ADEA]: 0.365 Inches Minimum And 0.385 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Material Document And Classification [MDCL]: Gm 301-M,Fscm 11862 Mfr Ref Single Material Response Overall
Width Across Flats [ASDB]: 0.6695 Inches Minimum And 0.6750 Inches Maximum
Surface Treatment Document And Classification [STDC]: Gm 4341-M(Code 20U32),Fscm 11862 Mfr Ref Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Thread Class [AAJD]: 2B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unc
Thread Quantity Per Inch [CMLP]: 14

Weapon Systems (WSDC) 5310-01-150-4003

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-01-150-4003

Last Stock Position:: 391112 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-01-150-4003

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe
Oct 2019: Department of the Air Force (DF); EA; Subscribe

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-01-193-6884

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-01-150-4003

5310-99-464-1164 5310-99-105-5300 5310-66-139-6386 5310-14-572-9383 5310-99-137-7019 5310-14-010-0678 5310-15-181-3119 5310-14-553-7547 5310-99-795-2566 5310-99-887-3853 5310-33-200-6844 5310-15-008-0903 5310-14-515-2624 5310-27-015-8542 5310-13-117-8192 5310-15-111-8076 5310-15-111-0803 5310-14-254-5116

Freight Information 5310-01-150-4003

5310-01-150-4003 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-150-4003 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-150-4003 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-150-4003 is not classified as a special type of cargo when transported by water. 5310-01-150-4003 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-01-150-4003

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Contracting Technical Data File (CTDF) 5310-01-150-4003 February 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: L

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
