5310-01-126-4219
Key Washer
5310011264219 011264219 L23350-40ACL
A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer. View more Key Washer
January 2023
10
Marketplace 5310-01-126-4219
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-126-4219 2+ Documents (More...)
Every Day 5310-01-126-4219 RQST Updated Every Day 5310-01-126-4219 RQST NE Related Documents 5310-01
Every Day 5310-01-126-4219 RQST Updated Every Day 5310-01-126-4219 RQST NE Restrictions 5310-01-126-
Key Washer 5310011264219 011264219 Upgrade for $1 a day Upgrade your Account Upgrade 5310-01-126
-4219Key Washer5310011264219 011264219 L23350-40ACL https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310
Restrictions 5310-01-126-4219
5310-01-126-4219 is a Key Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-126-4219
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-126-4219
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ)
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-01-126-4219
- Part Number
- Manufacturer
- Status
- L23350-40ACL
- Manufacturer
- 43999 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- L23350-40ACL
- F0111 - Bureau Normalisation Aeronautique (Active)
- Secondary Buy
- Secondary Buy

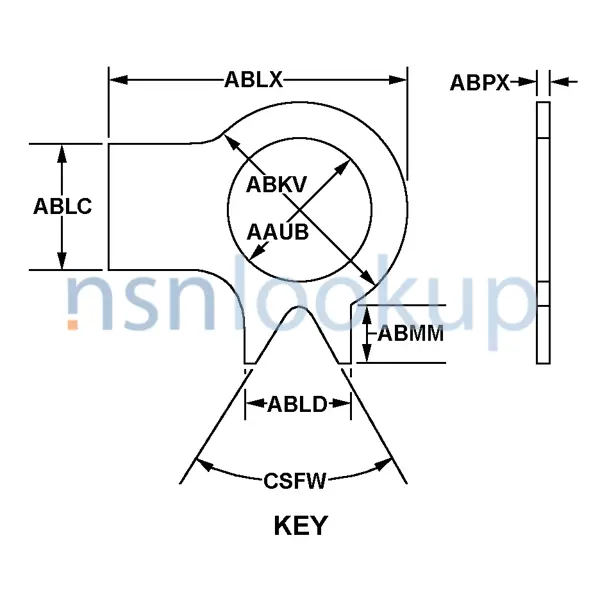

Datasheet 5310-01-126-4219
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Angle Between External Keys [CSFW]
- 45.0 Degrees Nominal
- External Straight Key Width [ABLC]
- 0.167 Inches Nominal
- External Tapered Key Width [ABLD]
- 0.156 Inches Nominal
- Hole Diameter [AAUB]
- 0.156 Inches Nominal
- Material Thickness [ABPX]
- 0.027 Inches Nominal
- Outside Diameter [ABKV]
- 0.282 Inches Nominal
- Material [MATT]
- Steel Overall
- Overall Distance Including Keys [ABLX]
- 0.460 Inches Nominal
- Split Key Length [ABMM]
- 0.125 Inches Nominal
- Style Designator [STYL]
- Key
- Surface Treatment [SFTT]
- Cadmium Overall
Similar Supply Items to 5310-01-126-4219
Freight Information 5310-01-126-4219
5310-01-126-4219 has freight characteristics.. 5310-01-126-4219 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
