5310-01-095-4634
Saddle Washer
5310010954634 010954634 70400-01601-101
A washer with one surface shaped to fit a similarly curved surface, the other surface of the washer being either parallel with the shaped surface or in the form of raised boss having either a flat bearing surface or a recess designed for holding a nut. Excludes WASHER (1), CONCAVE and WASHER (1), CONVEX. View more Saddle Washer
Managed by United States
NSN Created on 30 May 1980
Data Last Changed
November 2023
November 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 5310-01-095-4634
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-095-4634 1+ Documents (More...)
70400-01601-101 A washer with one surface shaped to fit a similarly curved surface, the other surface
WASHER,SADDLE 1 EA NS Request Quotation Subscribe to View Vendor Details... 70400-01601-101 WASHER
,SADDLE 1 EA NS Request Quotation Updated Every Day 5310-01-095-4634 RQST NE Updated Every Day 5310-01
WASHER,SADDLE 1 EA NS Request Quotation Subscribe to View Vendor Details... 70400-01601-101 WASHER
,SADDLE 1 EA NS Request Quotation Updated Every Day 5310-01-095-4634 RQST NE Updated Every Day 5310-01
Restrictions 5310-01-095-4634
5310-01-095-4634 is a Saddle Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-095-4634
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-095-4634
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Coast Guard (C918)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5310-01-095-4634
- Part Number
- Manufacturer
- Status
- 70400-01601-101
- Manufacturer
- 78286 - Sikorsky Aircraft Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-095-4634
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Hardness Rating [CQFM]
- 34.0 Rockwell C Minimum And 38.0 Rockwell C Maximum
- Hole Diameter [AAUB]
- 0.280 Inches Minimum And 0.290 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-6758 Mil Spec Single Material Response Overall
- Material [MATT]
- Steel Comp 4130 Overall
- Radius [ABGG]
- 0.625 Inches Minimum And 0.627 Inches Maximum
- Overall Length [ABHP]
- 0.570 Inches Nominal
- Overall Width [ABMK]
- 0.570 Inches Nominal

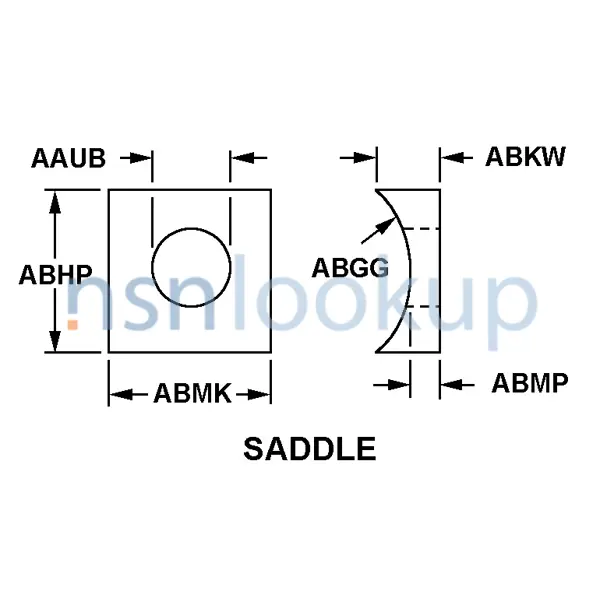

- Style Designator [STYL]
- Saddle
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thickness At Bolt Hole [ABMP]
- 0.030 Inches Minimum And 0.040 Inches Maximum
Weapon Systems (WSDC) 5310-01-095-4634
