5310-01-055-2028
Shouldered And Recessed Washer
5310010552028 010552028 42801A
A washer, round in shape, having a centrally located hole. One bearing surface is flat, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. Either or both of the bearing surfaces must be broken by a counterbore, countersink, or similar shaped recess. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING, SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers. View more Shouldered And Recessed Washer
May 2023
11
Marketplace 5310-01-055-2028
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-055-2028 1+ Documents (More...)
NS Request Quotation Updated Every Day 5310-01-055-2028 RQST NE Updated Every Day 5310-01-055-2028 RQST
Updated Every Day 5310-01-055-2028 RQST NE Related Documents 5310-01-055-2028 1+ Documents ( More...
Restrictions 5310-01-055-2028
5310-01-055-2028 is a Shouldered And Recessed Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-055-2028
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-055-2028
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
- Poland (WP01)
- Effective Date:
- 1 Jan 2007
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 2002
Approved Sources 5310-01-055-2028
- Part Number
- Manufacturer
- Status
- 42801A
- Manufacturer
- 73760 - Itt Aerospace Controls Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-055-2028
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0

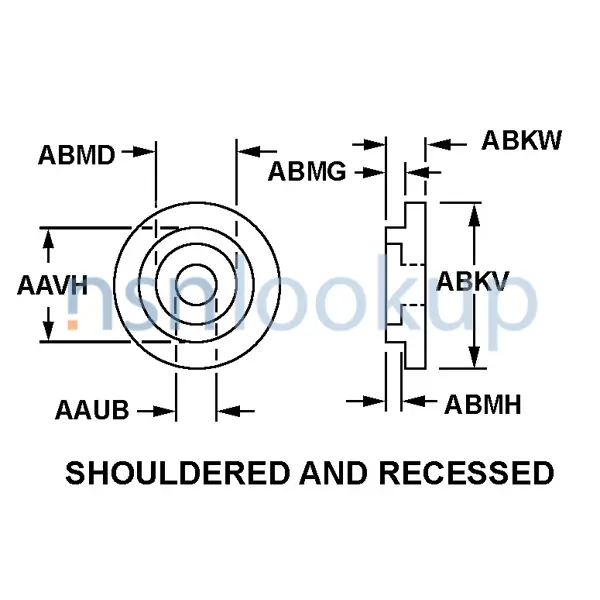

- Hole Diameter [AAUB]
- 0.665 Inches Minimum And 0.668 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-A-200/3 Fed Spec 1St Material Response Overall And Qq-A-225/6,T351 Fed Spec 2Nd Material Response Overall
- Material Thickness [ABPX]
- 0.449 Inches Minimum And 0.459 Inches Maximum
- Material [MATT]
- Aluminum Alloy 2024 Overall
- Outside Diameter [ABKV]
- 0.990 Inches Minimum And 0.991 Inches Maximum
- Recess Depth [ABMH]
- 0.443 Inches Minimum And 0.453 Inches Maximum
- Recess Diameter [ABMD]
- 0.825 Inches Minimum And 0.833 Inches Maximum
- Shoulder Diameter [AAVH]
- 0.964 Inches Minimum And 0.966 Inches Maximum
- Shoulder Height [ABMG]
- 0.060 Inches Minimum And 0.064 Inches Maximum
- Style Designator [STYL]
- Shouldered And Recessed
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625,Ty 2 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
