5310-01-047-0410
Welding Plain Nut
5310010470410 010470410 FFN836 MS27128-2
A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted. View more Welding Plain Nut
May 2023
4
Marketplace 5310-01-047-0410
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5310-01-047-0410 5+ Documents (More...)
FFN836 NUT,PLAIN,WELDING 103 EA NS Request Quotation FedMall Updated Every 15 Minutes 5310-01-047-0410
,WELDING 103 EA NS Request Quotation FedMall Updated Every 15 Minutes 5310-01-047-0410 FFN836.
FFN836. FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836.
FFN836. FFN836. FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836.
FFN836. FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836. FFN836.
FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836. FFN836. FFN836.
FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836. FFN836. FFN836.
FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836. FFN836. FFN836.
FFN836. FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836. FFN836.
FF-N836 NUT,PLAIN,CAP 226 EA NS Request Quotation FFN836. FFN836. FFN836. FFN836. FFN836. FFN836.
Restrictions 5310-01-047-0410
5310-01-047-0410 is a Welding Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-047-0410
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-047-0410
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HDKE
Approved Sources 5310-01-047-0410
- Part Number
- Manufacturer
- Status
- MS27128-2
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- FFN836
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5310-01-047-0410
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Material [MATT]
- Steel Comp 1005 Overall Or Steel Comp 1006 Overall Or Steel Comp 1008 Overall Or Steel Comp 1010 Overall Or Steel Comp 1011 Overall Or Steel Comp 1012 Overall Or Steel Comp 1013 Overall Or Steel Comp 1015 Overall Or Steel Comp 1016 Overall Or Steel Comp 1017 Overall Or Steel Comp 1018 Overall Or Steel Comp 1019 Overall Or Steel Comp 1020 Overall Or Steel Comp 1108 Overall Or Steel Comp 1109 Overall Or Steel Comp 1110 Overall
- Nominal Thread Size [CQJX]
- 0.164 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 8 Type And 20 Style

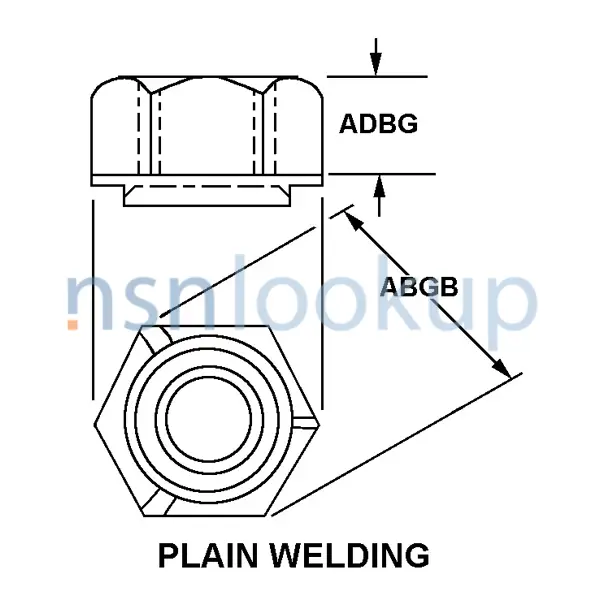

- Nut Style [ACTA]
- Plain Welding
- Nut Thickness [ADBG]
- 0.197 Inches Maximum
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Overall
- Width Across Corners [ABGB]
- 0.707 Inches Nominal
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series [BZRR]
- Unc
DLA Procurement Analysis 5310-01-047-0410
Management Data 5310-01-047-0410
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5310-01-047-0410
Freight Information 5310-01-047-0410
5310-01-047-0410 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-047-0410 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-01-047-0410 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-047-0410 is not classified as a special type of cargo when transported by water. 5310-01-047-0410 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-047-0410
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-01-047-0410 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
