5310-01-043-8070
Wing Plain Nut
5310010438070 010438070 11579077
A nut having wings designed for manual turning without driver or wrench. View more Wing Plain Nut
August 2023
9
Marketplace 5310-01-043-8070
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-043-8070 1+ Documents (More...)
/fsg-53/fsc-5310/us
United States (US) 4. 5310-01-043-8070 Marketplace Restrictions Approved Sources Datasheet Management
,WING RQST NS Request Quotation Updated Every Day 5310-01-043-8070 RQST NE Updated Every Day 5310-01-
Restrictions 5310-01-043-8070
5310-01-043-8070 is a Wing Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-01-043-8070
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-043-8070
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BFCN
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- United Kingdom (ZK01)
- Effective Date:
- 1 Feb 1995
Approved Sources 5310-01-043-8070
- Part Number
- Manufacturer
- Status
- 11579077
- Manufacturer
- 19206 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-01-043-8070
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0

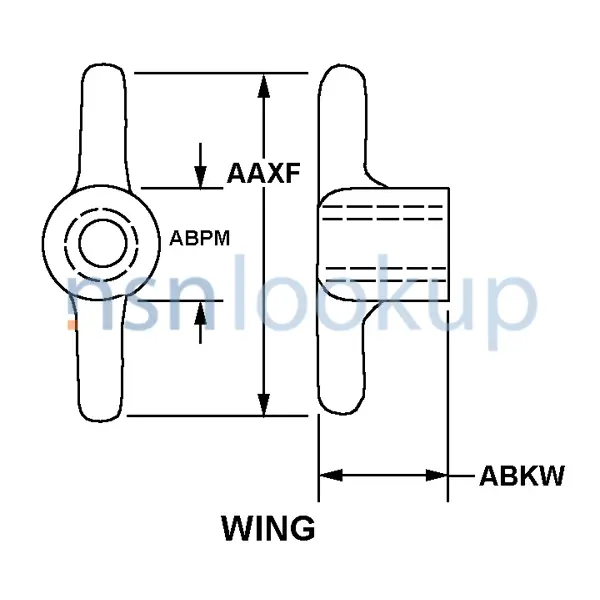

- Body Diameter [ABPM]
- 1.580 Nominal Inches
- Counterbore Diameter [AAWY]
- 1.330 Inches Minimum Nut And 1.350 Inches Maximum Nut
- Fabrication Method [AARN]
- Machined
- Material [MATT]
- Aluminum Alloy 7076 Overall Or Aluminum Alloy 7079 Overall
- Nominal Thread Size [CQJX]
- 1.312 Inches
- Nut Style [ACTA]
- Wing
- Overall Height [ABKW]
- 1.620 Inches Nominal
- Wing Spread Width [AAXF]
- 2.550 Inches Minimum And 2.610 Inches Maximum
- Surface Treatment [SFTT]
- Anodize Overall
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Series [BZRR]
- Un
Management Data 5310-01-043-8070
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 6H
- Individual and Crew-Served Weapons
Mortar, Light Weight, 60mm,M224, with Mount
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-01-043-8070
Freight Information 5310-01-043-8070
5310-01-043-8070 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-01-043-8070 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5310-01-043-8070 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-01-043-8070 is not classified as a special type of cargo when transported by water. 5310-01-043-8070 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-01-043-8070
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5310-01-043-8070 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
