5310-01-020-9659
Key Washer
5310010209659 010209659 93995
A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer. View more Key Washer
May 2023
8
Marketplace 5310-01-020-9659
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-020-9659 5+ Documents (More...)
Every Day 5310-01-020-9659 RQST NE Related Documents 5310-01-020-9659 5+ Documents ( More... ) https
//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-020-9659 Key Washer 5310010209659 010209659,93995 93995
Key Washer 5310010209659 010209659,93995 Updated Every Day 5310-01-020-9659 RQST Updated https/
enable JavaScript in your web browser . 6685-99-760 -9963Pressure Diff Gauge6685997609963 997609963GM-C-93995
Key Washer 5310010209659 010209659,93995 for $1 a day Upgrade your Account Upgrade 5310 https//
Account Upgrade 3040-01-301-8428Remote Control Lever3040013018428 0130184284538741-249603 070 33 21 93995
MILN6034 NUT,PLAIN,HEXAGON 560 HD NS Request Quotation Subscribe to View Vendor Details... 93995 NUT,
Restrictions 5310-00-931-8554 DEMIL: A | DEMILI https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-020-9659
MILN6034 NUT,PLAIN,HEXAGON 560 HD NS Request Quotation Subscribe to View Vendor Details... 93995 NUT,
Key Washer 5310010209659 010209659,93995 Upgrade for $1 a day Upgrade your Account Upgrade 5310
Restrictions 5310-01-020-9659
5310-01-020-9659 is a Key Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-020-9659
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-020-9659
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Poland (WP01)
- Effective Date:
- 1 Sep 2003
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Nov 1993
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5310-01-020-9659
- Part Number
- Manufacturer
- Status
- 93995
- Manufacturer
- 11599 - Triumph Engine Control Systems Llc (Active)
- Primary Buy
- Primary Buy

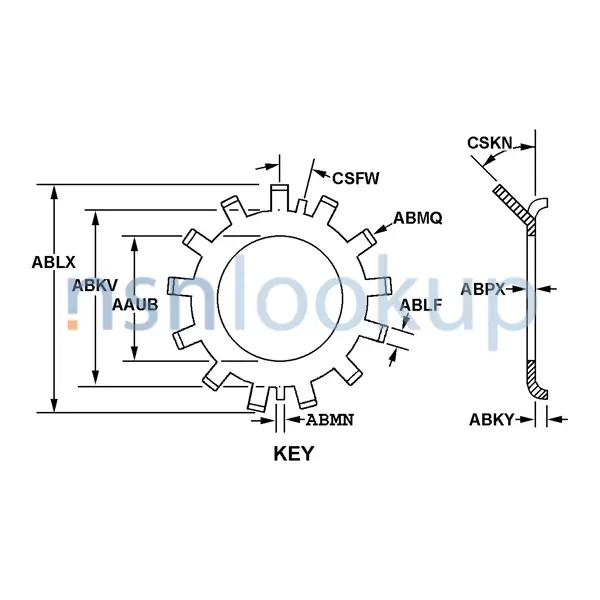

Datasheet 5310-01-020-9659
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Angle Between External Keys [CSFW]
- 90.0 Degrees Nominal
- External Key Quantity [ABMQ]
- 4
- External Prebent Key Angle [CSKN]
- 45.0 Degrees Nominal
- External Prebent Key Length [ABKY]
- 0.180 Inches Nominal
- External Prebent Key Width [ABLF]
- 0.225 Inches Minimum And 0.235 Inches Maximum
- Hardness Rating [CQFM]
- 46.0 Rockwell C Minimum And 53.0 Rockwell C Maximum
- Hole Diameter [AAUB]
- 1.205 Inches Minimum And 1.215 Inches Maximum
- Material Thickness [ABPX]
- 0.057 Inches Minimum And 0.063 Inches Maximum
- Outside Diameter [ABKV]
- 1.585 Inches Minimum And 1.595 Inches Maximum
- Material [MATT]
- Steel Comp 631 Overall
- Material Document And Classification [MDCL]
- Ams 5529 Assn Std Single Material Response Overall
- Small External Prebent Key Width [ABMN]
- 0.160 Inches Minimum And 0.170 Inches Maximum
- Overall Distance Including Keys [ABLX]
- 1.860 Inches Nominal
- Style Designator [STYL]
- Key
DLA Procurement Analysis 5310-01-020-9659
Management Data 5310-01-020-9659
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5310-01-020-9659
Freight Information 5310-01-020-9659
5310-01-020-9659 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-01-020-9659 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-01-020-9659 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-01-020-9659 is not classified as a special type of cargo when transported by water. 5310-01-020-9659 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
