5310-01-011-7511
Assembled Washer Plain Nut
5310010117511 010117511 F3724C65
A plain nut on which has been assembled a nonremovable washer. View more Assembled Washer Plain Nut
January 2023
7
Marketplace 5310-01-011-7511
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-011-7511 1+ Documents (More...)
Assembled Washer Plain Nut 5310010117511 F3724C65 A plain nut on which has been assembled a nonremovable
RQST NE Updated Every Day 5310-01-011-7511 RQST Updated Every Day 5310-01-011-7511 RQST NE Restrictions
Restrictions 5310-01-011-7511
5310-01-011-7511 is a Assembled Washer Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-011-7511
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-011-7511
- France (ZF01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-01-011-7511
- Part Number
- Manufacturer
- Status
- F3724C65
- Manufacturer
- 73484 - Jacobson Mfg Co Inc (Active)
- Primary Buy
- Primary Buy

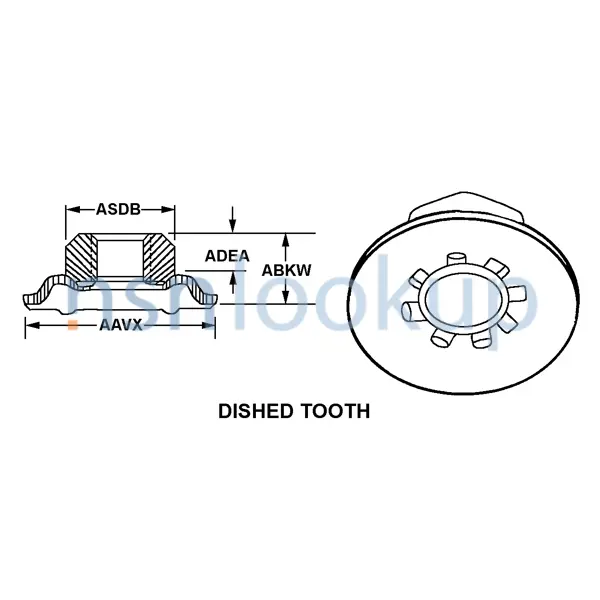

Datasheet 5310-01-011-7511
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Nut Style [ACTA]
- Dished Tooth
- Overall Height [ABKW]
- 0.437 Inches Nominal
- Special Features [FEAT]
- Washer Has A Specially Developed Sealent Adhered To Underside
- Washer Outside Diameter [AAVX]
- 0.656 Inches Nominal
- Width Across Flats [ASDB]
- 0.562 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Overall
- Temp Rating [AZKQ]
- -60.0 Deg Fahrenheit Minimum And 220.0 Deg Fahrenheit Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series [BZRR]
- Unf
NATO Stock Numbers Related to 5310-01-011-7511
Freight Information 5310-01-011-7511
5310-01-011-7511 has freight characteristics.. 5310-01-011-7511 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
