5310-01-004-0925
Knurled Plain Nut
5310010040925 010040925 2297F2372
A nut, round in shape, having all or part of its outer surface knurled. It may have provisions for external wrenching. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, ROUND. (When height or thickness, and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). View more Knurled Plain Nut
May 2023
8
Marketplace 5310-01-004-0925
Request a Quotation from participating marketplace vendors
Related Documents 5310-01-004-0925 2+ Documents (More...)
United States (US) 4. 5310-01-004-0925 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 2297F2372 RQST NE Updated Every Day 5310-01-004-0925 RQST NE Updated
Request a Quotation from participating marketplace vendors Request Updated Every Day A2-2297F2372 RQST
www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-351-2580 Actuator And Bolt Assembly 2530003512580 A2-2297F2372
Restrictions 5310-01-004-0925
5310-01-004-0925 is a Knurled Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-01-004-0925
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-01-004-0925
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Supplementary Receivers:
- AZBD
- United States of America (ZZ)
Approved Sources 5310-01-004-0925
- Part Number
- Manufacturer
- Status
- 2297F2372
- Manufacturer
- 78500 - Meritor Heavy Vehicle Systems, Llc (Active)
- Primary Buy
- Primary Buy
- 2297F2372
- 3D6E9 - Meritor Industrial Products, Llc (Active)
- Primary Buy
- Primary Buy

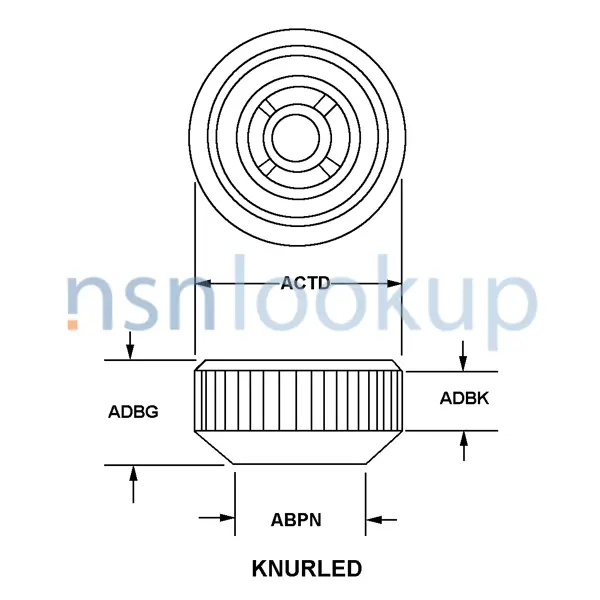

Datasheet 5310-01-004-0925
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.875 Inches
- Nut Diameter [ACTD]
- 1.125 Inches Nominal
- Nut Style [ACTA]
- Knurled
- Nut Thickness [ADBG]
- 1.250 Inches Nominal
- Knurl Width [ADBK]
- 1.000 Nominal Inches
- Small End Diameter [ABPH]
- 1.000 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 14
- Thread Series [BZRR]
- Unf
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-01-004-0925
DLA Procurement Analysis 5310-01-004-0925
Management Data 5310-01-004-0925
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2530
- X
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5310-01-004-0925
Freight Information 5310-01-004-0925
5310-01-004-0925 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 018400. A Sub NMFC of X. It has a NMFC Description of AUTO BRAKES/SHOES R PADS ETC. 5310-01-004-0925 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08480 which rates the freight between FCL and LCL. 5310-01-004-0925 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 5310-01-004-0925 is not classified as a special type of cargo when transported by water. 5310-01-004-0925 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5310-01-004-0925 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
