5310-00-982-6796
Stamped Nut
5310009826796 009826796 MS27151-6 RM832
A nut formed from sheet spring material, usually steel, into various shapes, having the external appearance of a solid nut, and having an aperture with suitable bosses, lugs, notches, and/or slits capable of securely gripping a mating threaded member. See also NUT (1), SHEET SPRING. View more Stamped Nut
Managed by United States
NSN Created on 1 Jan 1960
Data Last Changed
August 2023
August 2023
NATO Update Count
25
25
NATO Data Quality
Marketplace 5310-00-982-6796
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-982-6796 3+ Documents (More...)
MS27151-6 RM832 A nut formed from sheet spring material, usually steel, into various shapes, having
MS27151-6 NUT,STAMPED 18 EA NS Request Quotation Subscribe to View Vendor Details...
MS27151-6 NUT,STAMPED 500 EA NS Request Quotation Subscribe to View Vendor Details...
MS27151-6 NUT,STAMPED 18 EA NS Request Quotation Subscribe to View Vendor Details...
MS27151-6 NUT,STAMPED 500 EA NS Request Quotation Subscribe to View Vendor Details...
MS27151-6 NUT,STAMPED 18 HD NS Request Quotation Subscribe to View Vendor Details...
MS27151-6 NUT,STAMPED 500 HD NS Request Quotation Subscribe to View Vendor Details...
MS27151-6 NUT,STAMPED 18 HD NS Request Quotation Updated Every Day 5310-00-638-1071 RQST Updated Every
MS27151-6 NUT,STAMPED 500 HD NS Request Quotation Subscribe to View Vendor Details...
MS27151-6 NUT,STAMPED 18 HD NS Request Quotation Updated Every Day 5310-00-638-1071 RQST Updated Every
enable JavaScript in your web browser . 5820-66-139-3919Radio Cassette Reco5820661393919 661393919 RM832
www.nsnlookup.com /fsg-58/fsc-5820/au 5820-66-139-3919 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-982-6796
Stamped Nut 5310009826796 009826796 $1 a day Upgrade your Account Upgrade 5310-00-982-6796Stamped
www.nsnlookup.com /fsg-58/fsc-5820/au 5820-66-139-3919 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-982-6796
Stamped Nut 5310009826796 009826796 $1 a day Upgrade your Account Upgrade 5310-00-982-6796Stamped
Restrictions 5310-00-982-6796
5310-00-982-6796 is a Stamped Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-00-982-6796
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-982-6796
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5310-00-982-6796
- Part Number
- Manufacturer
- Status
- MS27151-6
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- RM832
- 77122 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete

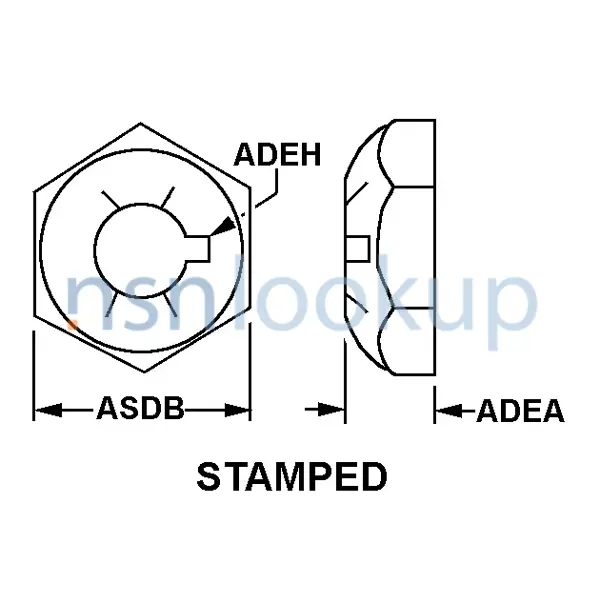

Datasheet 5310-00-982-6796
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Gripping Notch Quantity [ADEH]
- 1
- Material [MATT]
- Steel Comp 1050 Overall Or Steel Comp 1551 Overall Or Steel Comp 1552 Overall Or Steel Comp 1053 Overall Or Steel Comp 1055 Overall Or Steel Comp 1059 Overall Or Steel Comp 1060 Overall Or Steel Comp 1561 Overall Or Steel Comp 1064 Overall Or Steel Comp 1065 Overall Or Steel Comp 1566 Overall
- Mating Member Diameter Accommodated [ACSZ]
- 0.164 Inches Nominal
- Nut Height [ADEA]
- 0.089 Inches Minimum And 0.109 Inches Maximum
- Nut Style [ACTA]
- Stamped
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Overall
- Width Across Flats [ASDB]
- 0.332 Inches Minimum And 0.343 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
DLA Procurement Analysis 5310-00-982-6796
Management Data 5310-00-982-6796
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To S004493576
- S004493576
- R
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5310-00-982-6796
5310-21-866-9610 5310-00-652-6460 5310-99-638-0765 5310-12-156-4679 5310-21-897-8123 5310-00-058-4241 5310-00-685-2219 5310-14-470-2673 5310-14-431-3844 5310-14-412-6085 5310-15-110-9958 5310-15-113-3021 5310-14-395-8898 5310-14-388-2240 5310-15-113-3018 5310-14-329-0566 5310-14-476-2163 5310-00-558-9869
Freight Information 5310-00-982-6796
5310-00-982-6796 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-982-6796 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-982-6796 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-982-6796 is not classified as a special type of cargo when transported by water. 5310-00-982-6796 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-982-6796
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-00-982-6796 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
