5310-00-962-1476

Welding Self-Locking Nut

5310009621476 009621476 ZL2808-4-02 327B496P2

A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the item is mounted. An integral feature is incorporated for locking on the threads of a mating member. View more Welding Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
August 2023

NATO Update Count
25

NATO Data Quality

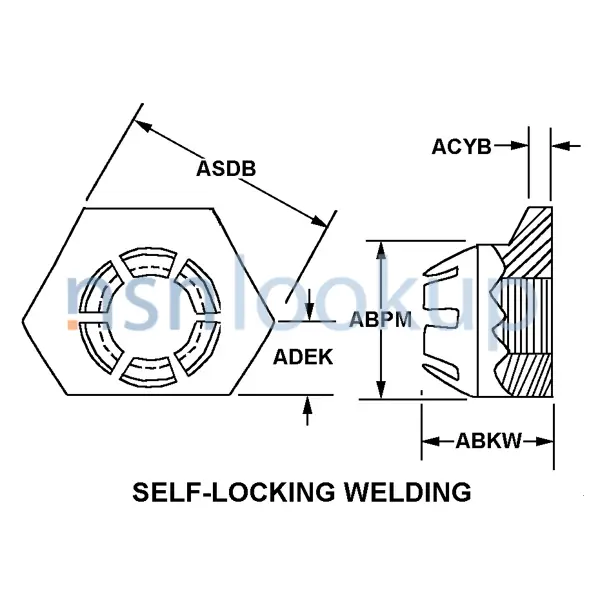

ACTA Style A255 for 5310-00-962-1476 1/1 — NSN 5310-00-962-1476 (Identification) 1/1

Marketplace 5310-00-962-1476

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5310-00-962-1476 RQST NE

Updated Every Day

5310-00-962-1476 RQST

Updated Every Day

5310-00-962-1476 RQST NE

Related Documents 5310-00-962-1476 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-53/fsc-5310/us

5310-00-962-1476 Welding Self-Locking Nut 5310009621476

ZL2808-4-02 327B496P2 A nut with projection(s) that is/are designed to localize heating, during welding
RQST NE Updated Every Day 5310-00-962-1476 RQST Updated Every Day 5310-00-962-1476 RQST NE Related Documents
5310-00-962-1476 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-962-1476

https//www.nsnlookup.com
/fsg-53/fsc-5310/us

5310-00-766-0346 Welding Self-Locking Nut 5310007660346

www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-167-4063 Welding Self-Locking Nut 5310011674063 5310-00-962-1476
Restrictions 5310-01-167-4063 DEMIL: A | DEMILI https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-962-1476
Welding Self-Locking Nut 5310009621476 5310-27-014-2924 5310-14-522-5788 5310-00-962-1476 https

https//www.nsnlookup.com
/fsg-53/fsc-5310/us

5310-00-673-8845 Welding Self-Locking Nut 5310006738845

Welding Self-Locking Nut 5310145225785 Welding Self-Locking Nut 5310270142924 Self-Locking Nut 5310009621476
Welding Self-Locking Nut 5310145225787 5310-27-014-2924 Welding Self-Locking Nut 5310270142924 5310009621476
522-5785 5310-14-522-5787 5310-27-014-2924 Self-Locking Nut 5310007660346 Nut 5310006738845 us 5310-00-962-1476

https//www.nsnlookup.com
/fsg-53/fsc-5310/tr

5310-27-014-2924 Welding Self-Locking Nut 5310270142924

5310/tr 5310-27-014-2924 Welding Self-Locking Nut 5310270142924 -1476 Welding Self-Locking Nut 5310009621476
Welding Self-Locking Nut 5310145225785 Welding Self-Locking Nut 5310270142924 Self-Locking Nut 5310009621476
5310-14-522-5787 Welding Self-Locking Nut 5310145225787 Welding Self-Locking Nut 5310270142924 5310009621476

https//www.nsnlookup.com
/fsg-53/fsc-5310/fr

5310-14-522-5785 Welding Self-Locking Nut 5310145225785

5310/fr 5310-14-522-5785 Welding Self-Locking Nut 5310145225785 5310270142924 Self-Locking Nut 5310009621476
Welding Self-Locking Nut 5310145225785 Welding Self-Locking Nut 5310270142924 Self-Locking Nut 5310009621476
235-2050 5310-21-810-4369 5310-14-522-5785 5310-14-522-5787 5310-27-014-2924 5310-14-522-5788 5310-00-962-1476

Restrictions 5310-00-962-1476

5310-00-962-1476 is a Welding Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item contains Silver.

Import and Export 5310-00-962-1476

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-962-1476

US Air Force (FXGI)
Effective Date:: 1 Mar 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC C IMC Z IMCACTY SX

US Navy (N9BZ)
Effective Date:: 1 Mar 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: KE; AMC 1 AMSC C IMC Z IMCACTY KE

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 5310-00-962-1476

Part Number
Manufacturer
Status
ZL2808-4-02: 03350 - General Electric Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC 3
ZL2808-4-02: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
327B496P2: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 5310-00-962-1476

Characteristic
Specifications
FIIG: A021A0
Base Thickness [ACYB]: 0.092 Inches Nominal
Body Diameter [ABPM]: 0.255 Nominal Inches
Cutoff Edge To Center Distance [ADEK]: 0.217 Inches Nominal
Material [MATT]: Steel Comp 303 Overall Or Steel Comp 303Se Overall Or Steel Comp 303 Plus X Overall
Nominal Thread Size [CQJX]: 0.190 Inches
Nut Style [ACTA]: Self-Locking Welding
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Precious Material And Location [PMLC]: Overall Silver
Precious Material [PRMT]: Silver
Overall Height [ABKW]: 0.310 Inches Minimum And 0.322 Inches Maximum
Width Across Flats [ASDB]: 0.295 Inches Nominal
Surface Treatment Document And Classification [STDC]: Ams 2410 Assn Std Single Treatment Response Overall Or Ams 2411 Assn Std Single Treatment Response Overall
Surface Treatment [SFTT]: Silver Overall
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unf
Thread Quantity Per Inch [CMLP]: 32

Subscribe
View Data

DLA Procurement Analysis 5310-00-962-1476

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-962-1476

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5310-00-962-1476

Freight Information 5310-00-962-1476

5310-00-962-1476 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013540. A Sub NMFC of X. It has a NMFC Description of ALUM NUTS. 5310-00-962-1476 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05680 which rates the freight between FCL and LCL. 5310-00-962-1476 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-962-1476 is not classified as a special type of cargo when transported by water. 5310-00-962-1476 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-962-1476

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking
