5310-00-959-1488

Hexagon Self-Locking Nut

5310009591488 009591488 MIL-DTL-45913/2 10325 1DD750 500613-1 039-90010-49 9411981 MS 51922-21 M45913/2-6FG5C MS51922-21 10399531 5310PL0890470

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
February 2024

NATO Update Count
76

NATO Data Quality

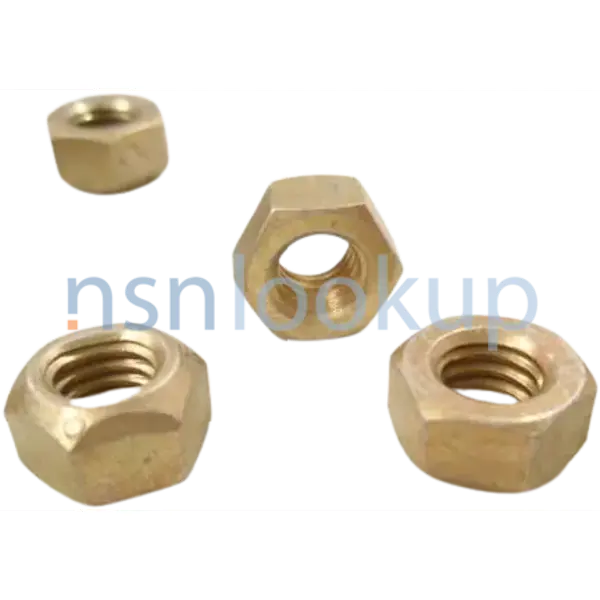

5310-00-959-1488 NUT,SELF-LOCKING,HEXAGON 5310009591488 009591488 1/2 — 5310-00-959-1488 Photo 1/2

ACTA Style A12 for 5310-00-959-1488 2/2 — NSN 5310-00-959-1488 (Identification) 2/2

Marketplace 5310-00-959-1488

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS51922-21 NUT,SELF-LOCKING,HEXAGON 50 HD NS

Subscribe to View Vendor Details...

MS51922-21 NUT,SELF-LOCKING,HEXAGON 199 HD NS

Subscribe to View Vendor Details...

MIL-DTL-45913/2 NUT,SELF-LOCKING,HEXAGON 36 HD NS

10325 NUT,SELF-LOCKING,HEXAGON 3 HD NS

MS51922-21 NUT,SELF-LOCKING,HEXAGON 2708 HD NS

Subscribe to View Vendor Details...

500613-1 NUT,SELF-LOCKING,HEXAGON 496 HD NS

Subscribe to View Vendor Details...

MS51922-21 NUT,SELF-LOCKING,HEXAGON RQST NS

MIL-DTL-45913/2 NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

1DD750 NUT,SELF-LOCKING,HEXAGON 3 HD NS

Subscribe to View Vendor Details...

MS51922-21 NUT,SELF-LOCKING,HEXAGON 6580 HD NS

Subscribe to View Vendor Details...

5310-00-959-1488 NUT, 3/8 UNF 19 HD NS

Subscribe to View Vendor Details...

MS51922-21 NUT,SELF-LOCKING,HEXAGON 101 HD NS

Subscribe to View Vendor Details...

MS51922-21 NUT,SELF-LOCKING,HEXAGON 300 HD NS

Subscribe to View Vendor Details...

039-90010-49 NUT,SELF-LOCKING,HEXAGON 200 HD NS

M459132-6FG5C NUT,SELF-LOCKING,HEXAGON 200 HD NS

MIL-DTL-459132 NUT,SELF-LOCKING,HEXAGON 202 HD NS

10325 NUT,SELF-LOCKING,HEXAGON 100 HD NS

MS51922-21 NUT,SELF-LOCKING,HEXAGON 297 HD NS

Subscribe to View Vendor Details...

009591488.5310 NUT,SELF-LOCKING,HEXAGON 3069 HD NS

Updated Every Day

5310-00-959-1488 RQST NE

Updated Every Day

5310-00-959-1488 RQST

Updated Every Day

5310-00-959-1488 RQST NE

Restrictions 5310-00-959-1488

5310-00-959-1488 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-959-1488

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-959-1488

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZCTCLBFBD; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Mar 2016

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 May 2005

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Oct 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5310-00-959-1488

Part Number
Manufacturer
Status
M45913/2-6FG5C: 81349 - Military Specifications (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-DTL-45913/2: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
10325: 019L2 - Esna, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
MS51922-21: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5310009591488: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
1DD750: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10325: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS51922-21: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
10399531: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0890470: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
1DD750: 75Q65 - Oshkosh Defense Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
500613-1: 97271 - Dana Light Axle Products, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
039-90010-49: 59556 - Kovatch Corp. (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
9411981: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS 51922-21: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5310-00-959-1488

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered
Criticality Code Justification [CRTL]: Feat
Material Document And Classification [MDCL]: Sae J995, Gr 5 Assn Std Single Material Response Overall
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.375 Inches
Nut Height [ADEA]: 0.320 Inches Minimum And 0.415 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Special Features [FEAT]: Weapon System Essential
Width Across Flats [ASDB]: 0.551 Inches Minimum And 0.564 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416, Ty 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall And Chromate Overall
Thread Class [AAJD]: 2B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unf
Thread Quantity Per Inch [CMLP]: 24

Weapon Systems (WSDC) 5310-00-959-1488

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-959-1488

Last Stock Position:: 1841800 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-959-1488

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: US Marine Corps (DM); HD; Subscribe; 1
Oct 2021: US Marine Corps (DM); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-01-044-0769

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-959-1488

Freight Information 5310-00-959-1488

5310-00-959-1488 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-959-1488 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-959-1488 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-959-1488 is not classified as a special type of cargo when transported by water. 5310-00-959-1488 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-959-1488

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Contracting Technical Data File (CTDF) 5310-00-959-1488 February 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
