5310-00-950-0039

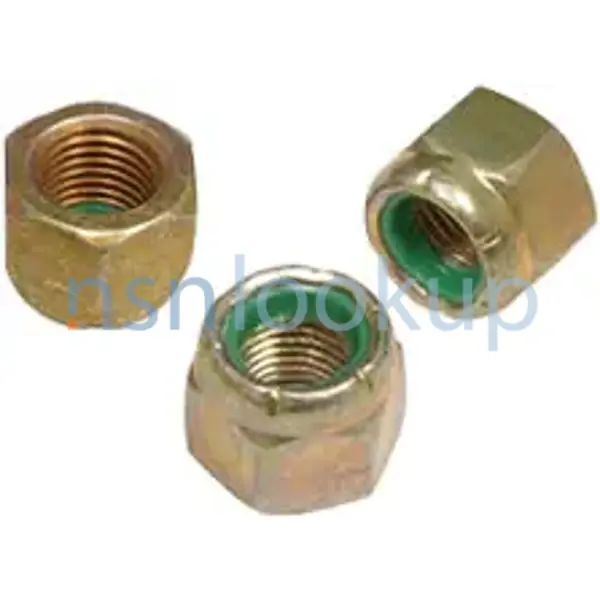

Hexagon Self-Locking Nut

5310009500039 009500039 905153 MS21044-N6 64-17780CPIECE 525-628-90457 2F8616 525-62890457 387-831 MS20365-624 NUT654 0.375UNF MS20365-624A A125J 800996 MS21044N6 938.07.17.607 F52E064 NEE3410-064 SP06199 F52NE-624 890625-624 AN365624 870127-00 AN365-624 5310PL0530873 5310PL0826967

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
June 2025

NATO Update Count
86

NATO Data Quality

5310-00-950-0039 NUT,SELF-LOCKING,HEXAGON 5310009500039 009500039 1/2 — 5310-00-950-0039 Photo 1/2

ACTA Style A12 for 5310-00-950-0039 2/2 — NSN 5310-00-950-0039 (Identification) 2/2

Product Information 5310-00-950-0039

The MS21044N6 is a self-locking nut commonly used in aerospace and other demanding applications where secure fastening is critical.

Here are some key characteristics of the MS21044N6 nut:

Type: Self-locking, hexagonal nut.
Locking Mechanism: Features a nylon collar (fiber insert) that provides a friction grip on the bolt threads, preventing loosening due to vibration and thermal expansion.
Material: Steel, cadmium-plated in accordance with QQ-P-416, Type II, Class 2.
Thread: Fine thread with 24 threads per inch (3/8-24).
Thread Type: UNJF (fine thread with external controlled root radius).
Thread Class: 3B.
Temperature Rating: Up to 250° F.
Dimensions: Height: 0.318 to 0.469 inches; Width Across Flat: 0.553 to 0.564 inches.
Finish: Cadmium.
Applications: Suitable for structural applications and helicopter engines.
Supersedes: Part numbers 404-890, 406-684, 52E064, AN365-624, and MS20365-624C.
Approvals: FAA-PC Approved.

Marketplace 5310-00-950-0039

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

F52NE-624 NUT,SELF-LOCKING,HEXAGON 100 HD NS

Subscribe to View Vendor Details...

F52NE-624 NUT,SELF-LOCKING,HEXAGON 20550 HD NS

MS21044N6 NUT,SELF-LOCKING,HEXAGON 476 HD NS

Subscribe to View Vendor Details...

MS20365-624A NUT,SELF-LOCKING,HEXAGON 403 HD NS

AN365-624 NUT,SELF-LOCKING,HEXAGON 65 HD NS

Subscribe to View Vendor Details...

MS21318-7 NUT,SELF-LOCKING,HEXAGON 99 HD NS

MS21044-N6 NUT,SELF-LOCKING,HEXAGON 4 HD NS

Subscribe to View Vendor Details...

MS20365-624 NUT,SELF-LOCKING,HEXAGON 340 HD NS

MS21044N6 NUT,SELF-LOCKING,HEXAGON 1376 HD NS

Subscribe to View Vendor Details...

5310-00-950-0039 NUT,SELF-LOCKING,HEXAGON 150 HD NS

Subscribe to View Vendor Details...

MS20365-624A NUT,SELF-LOCKING,HEXAGON 77 HD NS

Subscribe to View Vendor Details...

MS21044N6 NUT,SELF-LOCKING,HEXAGON 2034 HD NS

MS20365-624 NUT,SELF-LOCKING,HEXAGON 1802 HD NS

MS20365-624A NUT,SELF-LOCKING,HEXAGON 1802 HD NS

Subscribe to View Vendor Details...

MS21044N6 NUT,SELF-LOCKING,HEXAGON 200 HD NS

Subscribe to View Vendor Details...

MS21044N6 NUT,SELF-LOCKING,HEXAGON 85 HD NS

5310-00-950-0039 NUT,SELF-LOCKING,HEXAGON 85 HD NS

Subscribe to View Vendor Details...

MS21044N6 NUT,SELF-LOCKING,HEXAGON 9 HD NS

Subscribe to View Vendor Details...

MS21044N6 NUT,SELF-LOCKING,HEXAGON 4564 HD NS

Subscribe to View Vendor Details...

5310-00-950-0039 NUT, SELF-LOCKING 130 HD NS

Subscribe to View Vendor Details...

890625624 NUT,SELF-LOCKING,HEXAGON 19 HD NS

Subscribe to View Vendor Details...

MS21044N6 NUT,SELF-LOCKING,HEXAGON 34 HD NS

Subscribe to View Vendor Details...

MS21044-N6 NUT,SELF-LOCKING,HEXAGON 23 HD NS

MS21044N6 NUT,SELF-LOCKING,HEXAGON 100 HD NS

A125J NUT,SELF-LOCKING,HEXAGON 6 HD NS

Subscribe to View Vendor Details...

MS21044N6 NUT,SELF-LOCKING,HEXAGON 5354 HD NS

F52NE-624 NUT,SELF-LOCKING,HEXAGON 10300 HD NS

Updated Every Day

5310-00-950-0039 RQST NE

Updated Every Day

5310-00-950-0039 RQST

Updated Every Day

5310-00-950-0039 RQST NE

Restrictions 5310-00-950-0039

5310-00-950-0039 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-950-0039

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-950-0039

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G170)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G800)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJSJFJBHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Jun 2005

Slovakia (WS01)
Effective Date:: 1 Jul 2016

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Oct 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-950-0039

Part Number
Manufacturer
Status
MS21044N6: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
905153: A274N - Scandinavian Manufacturing Scama Ab (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
MS21044-N6: 06UL7 - Pioneer Aerospace Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
800996: 19203 - Combat Capabilities Development (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
MS21044N6: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
938.07.17.607: S4080 - Pilatus Aircraft Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
5310009500039: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
SP06199: 8346B - Servicios Y Proyectos Avanzados S.A. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
F52NE-624: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
890625-624: 83298 - Allied Signal Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
AN365624: 81352 - Air Force-Navy Aeronautical (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
870127-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
AN365-624: 81352 - Air Force-Navy Aeronautical (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21044N6: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310PL0530873: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0826967: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL2066694: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
64-17780CPIECE: 66935 - Johnson Controls Navy Systems, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
525-628-90457: 99193 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2F8616: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
525-62890457: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
387-831: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS20365-624: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
NUT654: 93232 - Curtiss-Wright Electro-Mechanical (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 6
0.375UNF: K2158 - European Industrial Services Ltd T/A (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 5
MS20365-624A: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
A125J: K2158 - European Industrial Services Ltd T/A (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 5
F52E064: 72962 - Harvard Industries Inc (Replaced); Transferred; RNCC E RNVC 8 DAC 5
NEE3410-064: 019L2 - Esna, Llc (Active); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 5310-00-950-0039

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Countersink Angle [CRSQ]: 88.0 Degrees Nominal Nut
Material [MATT]: Steel Comp 1006 Nut Or Steel Comp 1008 Nut Or Steel Comp 1009 Nut Or Steel Comp 1010 Nut Or Steel Comp 1015 Nut Or Steel Comp 1018 Nut Or Steel Comp 1035 Nut Or Steel Comp 11L37 Nut Or Steel Comp 1213 Nut Or Steel Comp 12L14 Nut
Nominal Thread Size [CQJX]: 0.375 Inches
Nut Height [ADEA]: 0.318 Inches Minimum And 0.469 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque With Nonmetallic Insert
Lubrication [ABAJ]: Soluble Lubricant
Thread Quantity Per Inch [CMLP]: 24
Thread Series [BZRR]: Unjf
Width Across Flats [ASDB]: 0.553 Inches Minimum And 0.564 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall Except Insert
Surface Treatment [SFTT]: Cadmium Overall Except Insert
Temp Rating [AZKQ]: 250.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand

Weapon Systems (WSDC) 5310-00-950-0039

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-950-0039

Last Stock Position:: 172400 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-950-0039

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: US Marine Corps (DM); HD; Subscribe; 1
Oct 2021: US Marine Corps (DM); HD; Subscribe; 1
Apr 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: US Marine Corps (DM); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Air Force (DF): F; R; Refer To Approved For Faa Use; APPROVED FOR FAA USE
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-050-3353
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-058-7343
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-188-1975
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-198-4741
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-263-2875
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-275-2087
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-275-2090
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-297-3724
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-623-7175

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-950-0039

5310-99-464-1164 5310-99-105-5300 5310-66-139-6386 5310-14-572-9383 5310-99-137-7019 5310-14-010-0678 5310-15-181-3119 5310-14-553-7547 5310-99-795-2566 5310-99-887-3853 5310-33-200-6844 5310-15-008-0903 5310-14-515-2624 5310-27-015-8542 5310-13-117-8192 5310-15-111-8076 5310-15-111-0803 5310-14-254-5116

Freight Information 5310-00-950-0039

5310-00-950-0039 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-950-0039 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-950-0039 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-950-0039 is not classified as a special type of cargo when transported by water. 5310-00-950-0039 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-950-0039

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-950-0039 41 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7MX24F1247: 30 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F1165: 25 Oct 2023; Subscribe; 2; Subscribe; Subscribe
SPE7MX24F1176: 25 Oct 2023; Subscribe; 2; Subscribe; Subscribe
SPE7MX24F0969: 19 Oct 2023; Subscribe; 10; Subscribe; Subscribe
SPE7MX24F0903: 18 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0830: 16 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0788: 13 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0788: 13 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0491: 11 Oct 2023; Subscribe; 2; Subscribe; Subscribe
SPE7MX24F0488: 11 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0495: 11 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0491: 11 Oct 2023; Subscribe; 2; Subscribe; Subscribe
SPE7MX24F0495: 11 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0488: 11 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0439: 10 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0438: 10 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0460: 10 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0439: 10 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0438: 10 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE7MX24F0460: 10 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623FBTYA: 09 Sep 2023; Subscribe; 41; Subscribe; Subscribe
SPE4A623FBTYA: 09 Sep 2023; Subscribe; 41; Subscribe; Subscribe
SPE4A623FB3SG: 10 Jul 2023; Subscribe; 7; Subscribe; Subscribe
SPE4A623FB3SJ: 10 Jul 2023; Subscribe; 248; Subscribe; Subscribe
SPE4A623FB3SH: 10 Jul 2023; Subscribe; 240; Subscribe; Subscribe
SPE4A623FB3SG: 10 Jul 2023; Subscribe; 7; Subscribe; Subscribe
SPE4A623FB3SJ: 10 Jul 2023; Subscribe; 248; Subscribe; Subscribe
SPE4A623FB3SH: 10 Jul 2023; Subscribe; 240; Subscribe; Subscribe
SPE5E319V0489: 12 Oct 2018; Subscribe; 14; Subscribe; Subscribe
SPE5E318V9134: 24 Sep 2018; Subscribe; 1; Subscribe; Subscribe
SPE5E318V8253: 27 Aug 2018; Subscribe; 25; Subscribe; Subscribe
SPE5E318V7962: 13 Aug 2018; Subscribe; 38; Subscribe; Subscribe
SPE5E318V7598: 31 Jul 2018; Subscribe; 3; Subscribe; Subscribe
SPE5E318V7307: 19 Jul 2018; Subscribe; 33; Subscribe; Subscribe
SPE5E318V6185: 07 Jun 2018; Subscribe; 141; Subscribe; Subscribe
SPE5E318V5764: 24 May 2018; Subscribe; 1; Subscribe; Subscribe
SPE5E318V4571: 03 Apr 2018; Subscribe; 219; Subscribe; Subscribe
SPE5E318V3461: 16 Feb 2018; Subscribe; 12; Subscribe; Subscribe
SPE5E317V1485: 11 Apr 2017; Subscribe; 174; Subscribe; Subscribe
SPE5E317V1098: 21 Mar 2017; Subscribe; 154; Subscribe; Subscribe
SPE5E715MQ116: 01 Jun 2015; Subscribe; 162; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-950-0039 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Product Information 5310-00-950-0039

Marketplace 5310-00-950-0039

Related Documents 5310-00-950-0039 5+ Documents (More...)

Restrictions 5310-00-950-0039

Import and Export 5310-00-950-0039

End Users 5310-00-950-0039

Approved Sources 5310-00-950-0039

Datasheet 5310-00-950-0039

Weapon Systems (WSDC) 5310-00-950-0039

DLA Procurement Analysis 5310-00-950-0039

Management Data 5310-00-950-0039

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-950-0039

Freight Information 5310-00-950-0039

Packaging Data 5310-00-950-0039

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-950-0039 41 Records

Contracting Technical Data File (CTDF) 5310-00-950-0039 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
