5310-00-935-9021

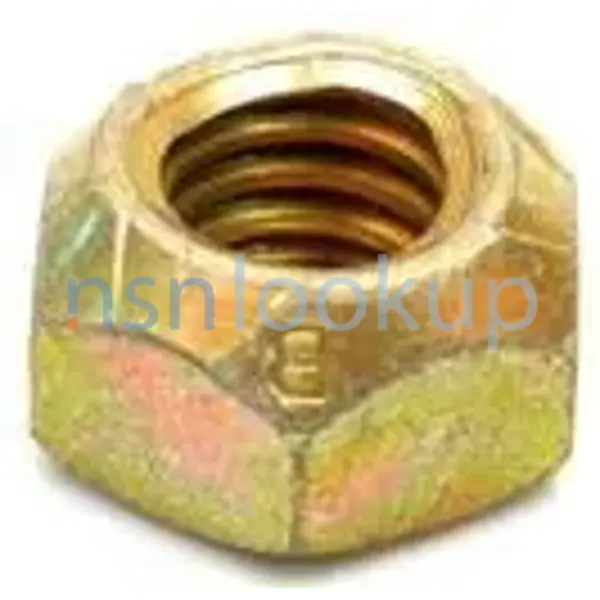

Hexagon Self-Locking Nut
5310009359021 009359021 TIP00029 8KP182 8100019 403416 0274993 52NU066 MS51943-35 5590234 10396618 5310PL0656698
A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut
Managed by United States
NSN Created on 5 Jun 1968
Data Last Changed
November 2023
November 2023
NATO Update Count
51
51
NATO Data Quality
Marketplace 5310-00-935-9021
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
MS51943-35 NUT 688 HD NS
5590234 NUT 35 HD NS
M45913/3-6CG8C NUT 640 HD NS
M45913/3-6CG8C NUT 401 HD NS
M45913/3-6CG8C NUT 696 HD NS
8100019 RQST NE
Updated Every Day 5310-00-935-9021 RQST NE
Updated Every Day 5310-00-935-9021 RQST
Updated Every Day 5310-00-935-9021 RQST NE
Related Documents 5310-00-935-9021 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-53/fsc-5310/us
/fsg-53/fsc-5310/us
5310-00-935-9021 Hexagon Self-Locking Nut 5310009359021
TIP00029 8KP182 8100019 403416 0274993 52NU066 MS51943-35 5590234 10396618 5310PL0656698 A nut having
MS51943-35 NUT,SELF-LOCKING,HEXAGON 98 HD NS Request Quotation Subscribe to View Vendor Details... 5310
MS51943-35 NUT,SELF-LOCKING,HEXAGON 333 HD NS Request Quotation 5310-00-935-9021 NUT,SELF-LOCKING,HEXAGON
MS51943-35 NUT,SELF-LOCKING,HEXAGON 98 HD NS Request Quotation Subscribe to View Vendor Details... 5310
MS51943-35 NUT,SELF-LOCKING,HEXAGON 333 HD NS Request Quotation 5310-00-935-9021 NUT,SELF-LOCKING,HEXAGON
https//www.nsnlookup.com
/fsg-53/fsc-5310/ca
/fsg-53/fsc-5310/ca
5310-21-619-5805 Hexagon Self-Locking Nut 5310216195805
5310-21-619-5805Hexagon Self-Locking Nut5310216195805 216195805 Cancelled - Replaced by NSN 5310-00-935-9021
vendors Request Restrictions 5310-21-619-5805 DEMIL https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-935-9021
Hexagon Self-Locking Nut 5310009359021 Quotation 5310-00-935-9021 NUT,SELF-LOCKING,HEXAGON https
vendors Request Restrictions 5310-21-619-5805 DEMIL https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-935-9021
Hexagon Self-Locking Nut 5310009359021 Quotation 5310-00-935-9021 NUT,SELF-LOCKING,HEXAGON https
enable JavaScript in your web browser . 5340-00-627-6147Male Assy Fastener5340006276147 006276147 8100019
/www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-627-6147 Male Assy Fastener 5340006276147006276147 8100019
your Account Upgrade 5340-00-008-2388Extension Drawer Slide5340000082388 000082388 CA6001-99-R001 8100019
/www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-627-6147 Male Assy Fastener 5340006276147006276147 8100019
your Account Upgrade 5340-00-008-2388Extension Drawer Slide5340000082388 000082388 CA6001-99-R001 8100019
https//www.nsnlookup.com
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
9999-99-609-2023 Hexagon Self-Locking Nut 9999996092023
ADPEC : 9999-99-609-2023 is a Hexagon Self-Locking Nut Similar Supply Items to 9999-99-609-2023 5310-00-935-9021
https//www.nsnlookup.com
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
9999-99-609-2655 Hexagon Self-Locking Nut 9999996092655
ADPEC : 9999-99-609-2655 is a Hexagon Self-Locking Nut Similar Supply Items to 9999-99-609-2655 5310-00-935-9021
Restrictions 5310-00-935-9021
5310-00-935-9021 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-935-9021
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-935-9021
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Supplementary Receivers:
- AZCLBFBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- GTHD
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Feb 2016
- Lithuania (WI)
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Slovenia (WL)
- Slovenia (WL01)
- Effective Date:
- 1 Nov 2008
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Singapore (YJ)
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP)
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN)
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS)
- Denmark (ZS01)
- Effective Date:
- 1 Sep 1996
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX)
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 5310-00-935-9021
- Part Number
- Manufacturer
- Status
- MS51943-35
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- TIP00029
- 97403 - Cecom Lr Center (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 5590234
- 34623 - Am General Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8KP182
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310009359021
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10396618
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5310PL0656698
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 8KP182
- 75Q65 - Oshkosh Defense Llc (Active)
- Advisory Reference
- Advisory Reference
- 8100019
- 15434 - Cummins Inc. (Active)
- Advisory Reference
- Advisory Reference
- 403416
- 5X050 - Crysteel Manufacturing, Inc (Active)
- Advisory Reference
- Advisory Reference
- 0274993
- 80195 - Ed Etnyre & Co (Active)
- Advisory Reference
- Advisory Reference
- 52NU066
- 27235 - Hardie-Tynes Co., Inc. (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5310-00-935-9021
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Bearing Surface Finish [CSXL]
- 110.0 Microinches
- Bearing Surface Type [CRTM]
- Chamfered Or Washer Faced
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum And 35.0 Rockwell C Maximum
- Material [MATT]
- Plastic Polyamide Locking Insert
- Material [MATT]
- Steel Nut
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Nut Height [ADEA]
- 0.469 Inches Maximum
- Nut Style [ACTA]
- Hexagon
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design Or Prevailing Torque With Nonmetallic Insert
- Lubrication [ABAJ]
- Dry Film Lubricant
- Width Across Flats [ASDB]
- 0.551 Inches Minimum And 0.564 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall Except Insert
- Surface Treatment [SFTT]
- Cadmium Overall Except Insert
- Temp Rating [AZKQ]
- 250.0 Deg Fahrenheit Nominal
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series [BZRR]
- Unc
- Thread Quantity Per Inch [CMLP]
- 16
DLA Procurement Analysis 5310-00-935-9021
Management Data 5310-00-935-9021
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Apr 2020
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- Z
- Discontinued-Use 5310-01-509-2488
- Z
- Department of the Navy (DN)
- N
- Z
- Discontinued-Use 5310-01-509-2488
- Z
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5310-01-509-2488
- Z
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-00-935-9021
Freight Information 5310-00-935-9021
5310-00-935-9021 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-935-9021 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-935-9021 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-935-9021 is not classified as a special type of cargo when transported by water. 5310-00-935-9021 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5310-00-935-9021 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
