5310-00-915-2065
Clinch Self-Locking Nut
5310009152065 009152065 F22NKCFM1-40 333-0983-00
A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking. View more Clinch Self-Locking Nut
May 2023
23
Marketplace 5310-00-915-2065
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-915-2065 3+ Documents (More...)
United States (US) 4. 5310-00-915-2065 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5310-00-915-2065 RQST Updated Every Day 5310-00-915-2065 RQST NE Related Documents
F22NKCFM1-40 NUT 30 EA NS Request Quotation Updated Every Day 5310-01-140-3748 RQST NE Updated Every
your Account Upgrade 5310-00-915-2065Clinch Self-Locking Nut5310009152065 009152065 333-0983-00 F22NKCFM1
Clinch Self-Locking Nut 5310009152065 your Account Upgrade 5310-00-915-2065Clinch Self-Locking
Nut5310009152065 009152065 333-0983-00 F22NKCFM1-40 //www.nsnlookup.com /fsg-53/fsc-5310/us 5310-01-140
Restrictions 5310-00-915-2065
5310-00-915-2065 is a Clinch Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-915-2065
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-915-2065
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Nov 2006
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 2010
Approved Sources 5310-00-915-2065
- Part Number
- Manufacturer
- Status
- F22NKCFM1-40
- Manufacturer
- 019L2 - Esna, Llc (Active)
- Primary Buy
- Primary Buy
- 333-0983-00
- 95105 - Rockwell Collins, Inc. (Active)
- Secondary Buy
- Secondary Buy
- F22NKCFM1-40
- 72962 - Harvard Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

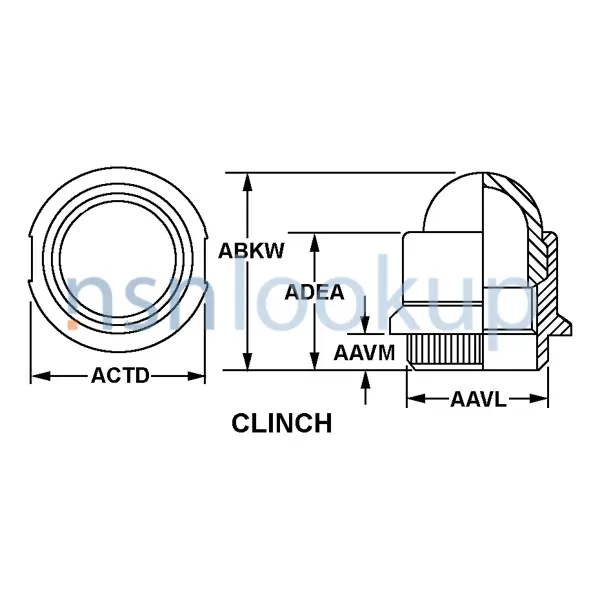

Datasheet 5310-00-915-2065
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Counterbore Diameter [AAWY]
- 0.128 Inches Minimum Nut And 0.133 Inches Maximum Nut
- Material Document And Classification [MDCL]
- Mil-M-20693 Mil Spec 2Nd Material Response Locking Insert
- Material Document And Classification [MDCL]
- Mil-M-20693 Mil Spec 3Rd Material Response Cap
- Material [MATT]
- Steel Comp 1212 Nut
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Nut Counterbore Depth [ADFK]
- 0.040 Inches Nominal Nut
- Nut Diameter [ACTD]
- 0.198 Inches Minimum And 0.208 Inches Maximum
- Nut Height [ADEA]
- 0.117 Inches Minimum And 0.143 Inches Maximum
- Nut Style [ACTA]
- Clinch
- Locking Feature [AAUM]
- Prevailing Torque With Nonmetallic Insert
- Material Document And Classification [MDCL]
- Ams 5010 Assn Std 1St Material Response Nut
- Overall Height [ABKW]
- 0.225 Inches Nominal
- Pilot Diameter [AAVL]
- 0.158 Inches Minimum And 0.162 Inches Maximum
- Pilot Length [AAVM]
- 0.037 Nominal Mils And 0.043 Nominal Centimeters
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec All Treatment Responses Nut
- Surface Treatment [SFTT]
- Cadmium Nut And Chromate Nut
- Temp Rating [AZKQ]
- 350.0 Deg Fahrenheit Maximum
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 40
- Thread Series [BZRR]
- Unc
Weapon Systems (WSDC) 5310-00-915-2065
DLA Procurement Analysis 5310-00-915-2065
Management Data 5310-00-915-2065
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5310-00-915-2065
Freight Information 5310-00-915-2065
5310-00-915-2065 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-915-2065 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-915-2065 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-915-2065 is not classified as a special type of cargo when transported by water. 5310-00-915-2065 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-915-2065
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-00-915-2065 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
