5310-00-880-9200
Saddle Washer
5310008809200 008809200 D4-140CADPLATEI 1481494-2 D4-140 CAD PLAT A 109605-2 D4-140CAD PLATE IRIDESCENT YELLO
A washer with one surface shaped to fit a similarly curved surface, the other surface of the washer being either parallel with the shaped surface or in the form of raised boss having either a flat bearing surface or a recess designed for holding a nut. Excludes WASHER (1), CONCAVE and WASHER (1), CONVEX. View more Saddle Washer
May 2023
18
Marketplace 5310-00-880-9200
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-880-9200 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5310-00-880-9200 RQST NE Updated Every Day 5310-00-880-9200 RQST
Updated Every Day 5310-00-880-9200 RQST NE Related Documents 5310-00-880-9200 3+ Documents ( More...
Saddle Washer 5310008809200 008809200 your Account Upgrade 5310-00-880-9200Saddle Washer5310008809200
008809200 D4-140CADPLATEI 1481494-2 D4-140 RQST NE Updated Every Day 5310-00-880-9200 RQST https//www.nsnlookup.com
Saddle Washer 5310008809200 008809200 your Account Upgrade 5310-00-880-9200Saddle Washer5310008809200
008809200 D4-140CADPLATEI 1481494-2 D4-140 FedMall Updated Every 15 Minutes 5310-01-381-2040 BUY https
Restrictions 5310-00-880-9200
5310-00-880-9200 is a Saddle Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-880-9200
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-880-9200
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
- US Marine Corps (MC47)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
Approved Sources 5310-00-880-9200
- Part Number
- Manufacturer
- Status
- 109605-2
- Manufacturer
- 37695 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- D4-140CAD PLATE IRIDESCENT YELLO
- 85480 - Brady United States (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- D4-140CADPLATEI
- 85480 - Brady United States (Active)
- Advisory Reference
- Advisory Reference
- 1481494-2
- 10001 - Navair And Navsea Managed Original (Active)
- Advisory Reference
- Advisory Reference
- D4-140 CAD PLAT A
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5310-00-880-9200
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Heat Treatment [HEAT]
- As Fabricated
- Hole Diameter [AAUB]
- 0.139 Inches Minimum And 0.143 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-S-698,Cond Crcq Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Overall
- Overall Height [ABKW]
- 0.078 Inches Minimum And 0.109 Inches Maximum
- Overall Length [ABHP]
- 0.391 Inches Minimum And 0.422 Inches Maximum
- Overall Width [ABMK]
- 0.417 Inches Minimum And 0.460 Inches Maximum

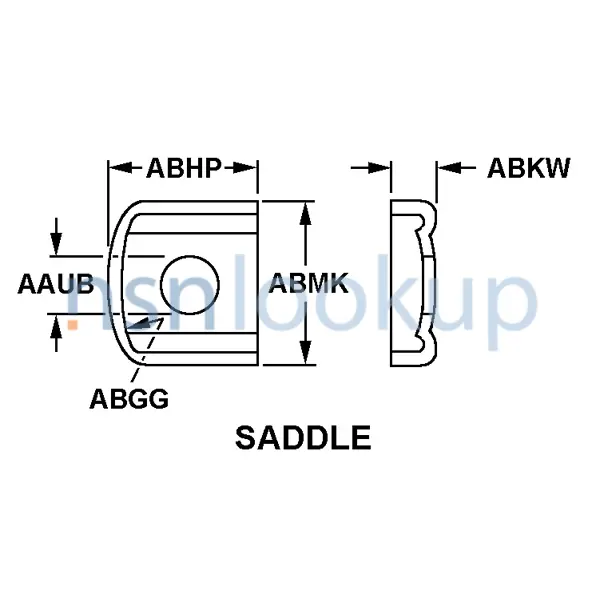

- Style Designator [STYL]
