5310-00-880-7010

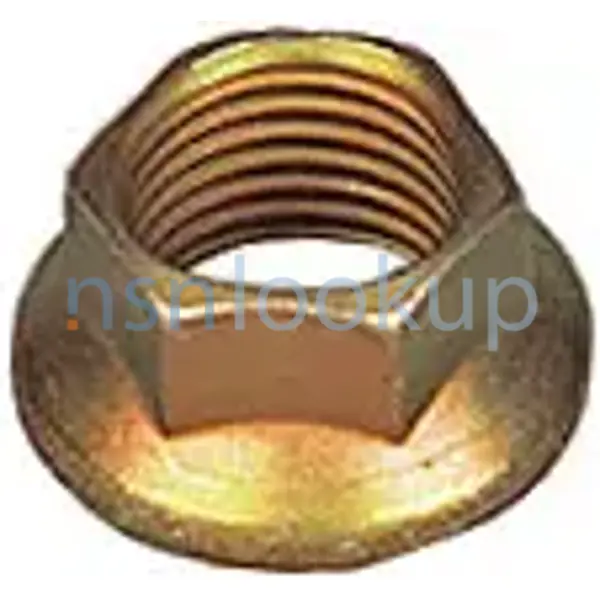

Hexagon Extended Washer Self-Locking Nut

5310008807010 008807010 H14L02 NAS1291-02 MS21042-L02 2500929-1 70-200510-3002 C11999-0009 MS21042L02 NAS1291-002 RM52LH3324-26 NAS1291-02M 5310PL0738192

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
September 2025

NATO Update Count
59

NATO Data Quality

5310-00-880-7010 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5310008807010 008807010 1/2 — 5310-00-880-7010 Photo 1/2

ACTA Style A294 for 5310-00-880-7010 2/2 — NSN 5310-00-880-7010 (Identification) 2/2

Marketplace 5310-00-880-7010

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 24 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 11 EA NS

Subscribe to View Vendor Details...

NAS1291-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 3 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 99 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 91 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 199 EA NS

H14L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 200 EA NS

Subscribe to View Vendor Details...

H14L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1719 EA NS

RM52LH3324-26 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2868 EA NS

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 89 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 32 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 4 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 75 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 179 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 60 EA NS

NAS129102 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5 EA NS

Subscribe to View Vendor Details...

MS21042L02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 33 EA NS

Updated Every Day

5310-00-880-7010 RQST NE

Updated Every Day

5310-00-880-7010 RQST

Updated Every Day

5310-00-880-7010 RQST NE

Restrictions 5310-00-880-7010

5310-00-880-7010 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-880-7010

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-880-7010

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: BDCTCLBF; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJVHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Poland (WP01)
Effective Date:: 1 Jun 2005

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-880-7010

Part Number
Manufacturer
Status
H14L02: 15653 - Howmet Global Fastening Systems Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 6
MS21042L02: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
70-200510-3002: 04655 - General Dynamics Mission Systems, (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
H14L02: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
C11999-0009: U8539 - Rosemount Aerospace Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L02: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
NAS1291-002: 80205 - National Aerospace Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14L02: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14L02: K6405 - Kaynar Microdot Aerospace (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
H14L02: F6033 - Tecnotec Sarl (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14L02: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
RM52LH3324-26: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21042L02: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
NAS1291-02M: 80205 - National Aerospace Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5310PL0738192: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
H14L02: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
H14L02: K1678 - Fairchild Fasteners Uk Ltd (Active); Advisory Reference; RNCC C RNVC 1 DAC 2
NAS1291-02: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS21042-L02: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2500929-1: 07187 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5310-00-880-7010

Characteristic
Specifications
FIIG: A021A0
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.086 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Dry Film Lubricant
Overall Height [ABKW]: 0.080 Inches Minimum And 0.100 Inches Maximum
Washer Outside Diameter [AAVX]: 0.167 Inches Maximum
Washer Thickness [ADEM]: 0.010 Inches Minimum
Width Across Flats [ASDB]: 0.122 Inches Minimum And 0.127 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Chromate Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 56
Thread Series [BZRR]: Unjc

Weapon Systems (WSDC) 5310-00-880-7010

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-880-7010

Last Stock Position:: 6370 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-880-7010

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: US Marine Corps (DM); EA; Subscribe
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe
Apr 2020: US Marine Corps (DM); EA; Subscribe
Oct 2019: Department of the Air Force (DF); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-880-7010

Freight Information 5310-00-880-7010

5310-00-880-7010 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-880-7010 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-880-7010 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-880-7010 is not classified as a special type of cargo when transported by water. 5310-00-880-7010 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-880-7010

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-880-7010 2 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE5E318V8604: 05 Sep 2018; Subscribe; 5000; Subscribe; Subscribe
SPE5E818V3835P00002: 21 Feb 2018; Subscribe; 11470; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-880-7010 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-880-7010

Related Documents 5310-00-880-7010 5+ Documents (More...)

Restrictions 5310-00-880-7010

Import and Export 5310-00-880-7010

End Users 5310-00-880-7010

Approved Sources 5310-00-880-7010

Datasheet 5310-00-880-7010

Weapon Systems (WSDC) 5310-00-880-7010

DLA Procurement Analysis 5310-00-880-7010

Management Data 5310-00-880-7010

Army

Navy

Marine Corps

Similar Supply Items to 5310-00-880-7010

Freight Information 5310-00-880-7010

Packaging Data 5310-00-880-7010

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-880-7010 2 Records

Contracting Technical Data File (CTDF) 5310-00-880-7010 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
