5310-00-877-5797

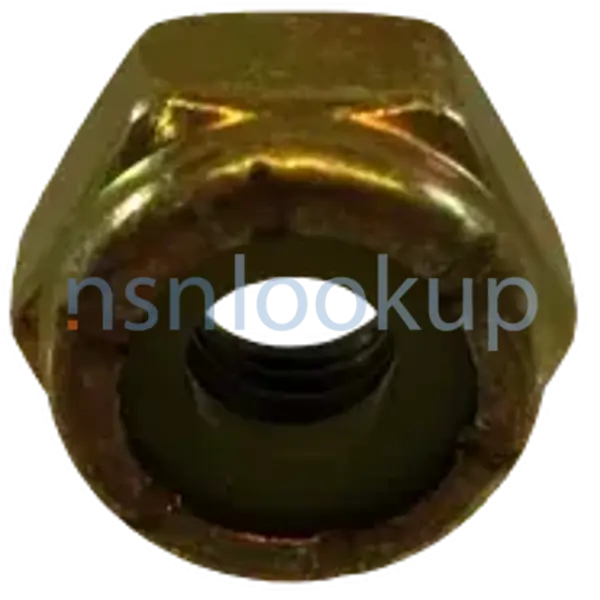

Hexagon Self-Locking Nut

5310008775797 008775797 122-6938615 PC 56 400227 C520019F000 188184 1900-32UNF-3B 525-628-90454 MS2144N3 AN365-1032 131-1405 1900-32UNJF-3B 25-00158-044 MS21044N3 DSR1197-13 MS21044N03 3125 66654 333-0385-000 NUT107 12Z2007-102 43-N-68015-1947 903272PC38 853926 MILN25027 200471 MS21044-N3

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
182

NATO Data Quality

ACTA Style A12 for 5310-00-877-5797 1/1 — NSN 5310-00-877-5797 (Identification) 1/1

Marketplace 5310-00-877-5797

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21044N3 NUT,SELF-LOCKING,HEXAGON 120 HD NS

Subscribe to View Vendor Details...

MS21044N3 NUT,SELF-LOCKING,HEXAGON 10 HD NS

AN365-1032 NUT,SELF-LOCKING,HEXAGON 84 HD NS

69510-79 NUT,SELF-LOCKING,HEXAGON 35 HD NS

MS21044-N3 NUT,SELF-LOCKING,HEXAGON 113 HD NS

Subscribe to View Vendor Details...

A1726 NUT,SELF-LOCKING,HEXAGON 6 HD NS

MIL-N-25027 NUT,SELF-LOCKING,HEXAGON 265 HD NS

F22NM-02 NUT,SELF-LOCKING,HEXAGON 8101 HD NS

MS 21044-N3 NUT,SELF-LOCKING,HEXAGON 380 HD NS

Subscribe to View Vendor Details...

A1726 NUT 50 HD NS

MS21044-N3 NUT 100 HD NS

MS21044-N3 NUT 1000 HD NS

MS21044-N3 NUT 100 HD NS

Subscribe to View Vendor Details...

NUTLOCK1032UNFM151 NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21044N3 NUT,SELF-LOCKING,HEXAGON 20701 HD NS

AN365-1032 NUT,SELF-LOCKING,HEXAGON 5384 HD NS

Subscribe to View Vendor Details...

5310-00-877-5797 NUT, NYLOC 2 HD NS

Updated Every Day

8599169-010 RQST NE

Updated Every Day

5310-00-877-5797 RQST NE

Updated Every Day

5310-00-877-5797 RQST

Updated Every Day

5310-00-877-5797 RQST NE

Restrictions 5310-00-877-5797

5310-00-877-5797 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5310-00-877-5797

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-877-5797

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

MOE Rule:: B031
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

MOE Rule:: BGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: BKZ1; AMC 1 AMSC G

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FGGI)
Effective Date:: 1 Feb 2009
Former MOE Rule:: FXGI; AMC 1 AMSC G IMC Z IMCACTY TG

NASA (G070)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC L

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJNJFJBHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

MOE Rule:: RGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: R478
Supplementary Collaborators:: TR; AMC 1 AMSC G

MOE Rule:: S911
Effective Date:: 1 Apr 2006
Former MOE Rule:: S006; AMC 1 AMSC G IMC Z IMCACTY XN

Sweden (VK01)
Effective Date:: 1 Feb 2017

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Feb 2008

Lithuania (WI01)
Effective Date:: 1 Mar 2001

Poland (WP01)
Effective Date:: 1 Jun 2005

Slovakia (WS01)
Effective Date:: 1 Jul 2016

Bulgaria (WU01)
Effective Date:: 1 Oct 2002

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

South Africa (ZD01)
Effective Date:: 1 Jun 2009

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-877-5797

Part Number
Manufacturer
Status
MS21044N3: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21044N3: 10001 - Navair And Navsea Managed Original (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
25-00158-044: K0268 - Raytheon Systems Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
MS21044N3: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
DSR1197-13: K1037 - Meggitt Aerospace Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
MS21044N03: K0668 - Leonardo Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS21044N3: 32345 - Defense Reduction Agency (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21044N3: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
333-0385-000: 95105 - Rockwell Collins, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
NUT107: 60532 - Trane U.S. Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
12Z2007-102: 10001 - Navair And Navsea Managed Original (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
43-N-68015-1947: 10001 - Navair And Navsea Managed Original (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
903272PC38: 10001 - Navair And Navsea Managed Original (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
853926: 18876 - Us Army Aviation And Missile Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MILN25027: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
200471: 02145 - Richards Imagery Interpretation (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21044-N3: 8K112 - Freundlich Supply Company, Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
F22NM1032: 27687 - Greer Stop Nut Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
808331: 19203 - Combat Capabilities Development (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
429949PC2: 10001 - Navair And Navsea Managed Original (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5692-6-13: 22888 - Fmc Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
20H1708D14: 27315 - Morris Material Handling, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5692-6-13: 81336 - Chief Of Engineers Dept Of Army (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
6693577 P/N 38: 43689 - Huntington Ingalls Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
P15C8148-4: 79500 - Westinghouse Electric Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
A067821: 58275 - Sasco Inc Canadian Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
A1726: 58275 - Sasco Inc Canadian Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
5951062: S0522 - Tadiran Ltd (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS20365-1032A: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
B4525-321-2: 60532 - Trane U.S. Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
870124: 19203 - Combat Capabilities Development (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
8599169-010: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310008775797: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
826B: 80218 - Phoenix Steel Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
853749-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
5692-6-13: 06350 - Asset Systems, Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
8223606-1: 98750 - San Antonio Air Logistics Center (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
422294-15: 94580 - Honeywell International Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
AN365-1032A: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
69510-79: 73030 - Hamilton Sundstrand Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS21044N03: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21044-3: 80205 - National Aerospace Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS21044N3: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
8599169-010: 99974 - Delco Electronics Corp Delco Systems (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
MS21044N3: 60144 - Unifab Industries Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
8908589: 18876 - Us Army Aviation And Missile Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
176526: 06848 - Honeywell International Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS21044-3: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10082631: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0574531: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL1935391: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
122-6938615 PC 56: 53711 - Naval Sea Systems Command (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
400227: 64959 - American Telephone And Telegraph Co (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 9
C520019F000: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
188184: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
1900-32UNF-3B: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
525-628-90454: 99193 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS2144N3: 96906 - Military Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
AN365-1032: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
131-1405: 10988 - Cnh Industrial America Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 9
1900-32UNJF-3B: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS21044-N3: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
6693577: 43689 - Huntington Ingalls Inc (Active); Informational Drawing; RNCC D RNVC 9 DAC A
3125: 13799 - H & E Venture, Llc (Active); Transferred; RNCC E RNVC 8 DAC 5
66654: 10237 - Cadillac Gage Textron Inc. (Active); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 5310-00-877-5797

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Countersink Angle [CRSQ]: 88.0 Degrees Nominal Nut
Material [MATT]: Steel Comp 1006 Nut Or Steel Comp 1008 Nut Or Steel Comp 1009 Nut Or Steel Comp 1010 Nut Or Steel Comp 1015 Nut Or Steel Comp 1018 Nut Or Steel Comp 1035 Nut Or Steel Comp 11L37 Nut Or Steel Comp 1213 Nut Or Steel Comp 12L14 Nut
Nominal Thread Size [CQJX]: 0.190 Inches
Nut Height [ADEA]: 0.208 Inches Minimum And 0.281 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque With Nonmetallic Insert
Lubrication [ABAJ]: Soluble Lubricant
Width Across Flats [ASDB]: 0.367 Inches Minimum And 0.376 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall Except Insert
Surface Treatment [SFTT]: Cadmium Overall Except Insert And Chromate Overall Except Insert
Temp Rating [AZKQ]: 250.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unjf
Thread Quantity Per Inch [CMLP]: 32

Weapon Systems (WSDC) 5310-00-877-5797

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-877-5797

Last Stock Position:: 700500 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-877-5797

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Mar 2020: Department of the Air Force (DF); HD; Subscribe; 1
Feb 2020: Department of the Army (DA); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Air Force (DF): F; R; Refer To Approved For Faa Use; APPROVED FOR FAA USE

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SO: SPECIAL OPERATIONAL FORCES (SOF) PECULIAR

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

NATO Stock Numbers Related to 5310-00-877-5797

5310-99-464-1164 5310-99-105-5300 5310-66-139-6386 5310-14-572-9383 5310-99-137-7019 5310-14-010-0678 5310-15-181-3119 5310-14-553-7547 5310-99-795-2566 5310-99-887-3853 5310-33-200-6844 5310-15-008-0903 5310-14-515-2624 5310-27-015-8542 5310-13-117-8192 5310-15-111-8076 5310-15-111-0803 5310-14-254-5116

Freight Information 5310-00-877-5797

5310-00-877-5797 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-877-5797 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-877-5797 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-877-5797 is not classified as a special type of cargo when transported by water. 5310-00-877-5797 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-877-5797

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5310-00-877-5797 34 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPM5EY13D05471066: 04 Sep 2017; Subscribe; 484; Subscribe; Subscribe
SPM5EY13D05471019: 01 Aug 2017; Subscribe; 687; Subscribe; Subscribe
SPM5EY13D05471018: 27 Jul 2017; Subscribe; 227; Subscribe; Subscribe
SPM5EY13D05471017: 27 Jul 2017; Subscribe; 19; Subscribe; Subscribe
SPM5EY13D05470961: 04 Jun 2017; Subscribe; 152; Subscribe; Subscribe
SPM5EY13D05470963: 04 Jun 2017; Subscribe; 946; Subscribe; Subscribe
SPM5EY13D05470959: 04 Jun 2017; Subscribe; 34; Subscribe; Subscribe
SPM5EY13D05470960: 04 Jun 2017; Subscribe; 49; Subscribe; Subscribe
SPM5EY13D05470915: 09 May 2017; Subscribe; 180; Subscribe; Subscribe
SPM5EY13D05470914: 08 May 2017; Subscribe; 48; Subscribe; Subscribe
SPM5EY13D05470913: 08 May 2017; Subscribe; 36; Subscribe; Subscribe
SPM5EY13D05470916: 08 May 2017; Subscribe; 2009; Subscribe; Subscribe
SPM5EY13D05470783: 08 Dec 2016; Subscribe; 220; Subscribe; Subscribe
SPM5EY13D05470781: 04 Dec 2016; Subscribe; 14; Subscribe; Subscribe
SPM5EY13D05470782: 04 Dec 2016; Subscribe; 48; Subscribe; Subscribe
SPM5EY13D05470784: 04 Dec 2016; Subscribe; 850; Subscribe; Subscribe
SPM5EY13D05470633: 13 Jun 2016; Subscribe; 1096; Subscribe; Subscribe
SPM5EY13D05470631: 12 Jun 2016; Subscribe; 174; Subscribe; Subscribe
SPM5EY13D05470632: 12 Jun 2016; Subscribe; 748; Subscribe; Subscribe
SPM5EY13D05470616: 08 Jun 2016; Subscribe; 25; Subscribe; Subscribe
SPM5EY13D05470618: 08 Jun 2016; Subscribe; 896; Subscribe; Subscribe
SPM5EY13D05470617: 06 Jun 2016; Subscribe; 77; Subscribe; Subscribe
SPM5EY13D05470615: 06 Jun 2016; Subscribe; 14; Subscribe; Subscribe
SPM5EY13D05470386: 15 Jul 2015; Subscribe; 476; Subscribe; Subscribe
SPM5EY13D05470385: 15 Jul 2015; Subscribe; 415; Subscribe; Subscribe
SPM5EY13D05470383: 14 Jun 2015; Subscribe; 6; Subscribe; Subscribe
SPM5EY13D05470384: 14 Jun 2015; Subscribe; 298; Subscribe; Subscribe
SPM5EY13D05470352: 18 May 2015; Subscribe; 149; Subscribe; Subscribe
SPM5EY13D05470353: 18 May 2015; Subscribe; 263; Subscribe; Subscribe
SPM5EY13D05470350: 05 May 2015; Subscribe; 9; Subscribe; Subscribe
SPM5EY13D05470351: 05 May 2015; Subscribe; 17; Subscribe; Subscribe
SPM5EY13D05470354: 05 May 2015; Subscribe; 1917; Subscribe; Subscribe
SPE5E415MQC34: 23 Apr 2015; Subscribe; 88; Subscribe; Subscribe
SPE5E114V2426: 30 Apr 2014; Subscribe; 1228; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-877-5797 April 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-877-5797

Related Documents 5310-00-877-5797 5+ Documents (More...)

Restrictions 5310-00-877-5797

Import and Export 5310-00-877-5797

End Users 5310-00-877-5797

Approved Sources 5310-00-877-5797

Datasheet 5310-00-877-5797

Weapon Systems (WSDC) 5310-00-877-5797

DLA Procurement Analysis 5310-00-877-5797

Management Data 5310-00-877-5797

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-877-5797

Freight Information 5310-00-877-5797

Packaging Data 5310-00-877-5797

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-877-5797 34 Records

Contracting Technical Data File (CTDF) 5310-00-877-5797 April 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
