5310-00-877-5796

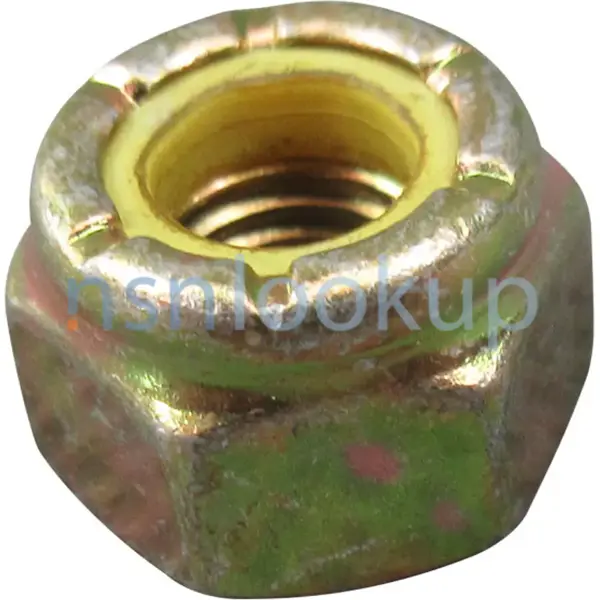

Hexagon Self-Locking Nut

5310008775796 008775796 525-628-90455 121FK4280 42NE-048 52-46-62 AN365-428 AN365-428A 91-32503-00 MS21044-N4 NASM21044-N4 F42NE-428 F52NE048 25-02-440 210298N4 F42NE0-48 MS21044N4 938.07.17.605 2332351-N14 906954 52N1610-048 870125 AN365-428H 30592 18D04 F42NE048 851713-00

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
January 2024

NATO Update Count
122

NATO Data Quality

5310-00-877-5796 NUT,SELF-LOCKING,HEXAGON 5310008775796 008775796 1/2 — 5310-00-877-5796 Photo 1/2

ACTA Style A12 for 5310-00-877-5796 2/2 — NSN 5310-00-877-5796 (Identification) 2/2

Marketplace 5310-00-877-5796

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

AN365-428 NUT,SELF-LOCKING,HEXAGON 22 HD NS

F42NE-048 NUT,SELF-LOCKING,HEXAGON 250 HD NS

MS20365-428 NUT,SELF-LOCKING,HEXAGON 2 HD NS

AN365-428A NUT,SELF-LOCKING,HEXAGON 30 HD NS

MS21044N4 NUT,SELF-LOCKING,HEXAGON 252 HD NS

Subscribe to View Vendor Details...

908998K1 NUT,SELF-LOCKING,HEXAGON 50 HD NS

MS21044N4 NUT,SELF-LOCKING,HEXAGON 460 HD NS

MS51922-5 NUT,SELF-LOCKING,HEXAGON 1126 HD NS

30592 NUT,SELF-LOCKING,HEXAGON 38 HD NS

F42NE-048 NUT,SELF-LOCKING,HEXAGON 1800 HD NS

Subscribe to View Vendor Details...

M151DEC7834P NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

42NE-048 NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21044N4 NUT,SELF-LOCKING,HEXAGON 148103 HD NS

MS20365-428 NUT,SELF-LOCKING,HEXAGON 131 HD NS

Subscribe to View Vendor Details...

5310-00-877-5796 NUT, 1/4 UNF, NYLOC 3 HD NS

Updated Every Day

5310-00-877-5796 RQST NE

Updated Every Day

5310-00-877-5796 RQST

Updated Every Day

5310-00-877-5796 RQST NE

Restrictions 5310-00-877-5796

5310-00-877-5796 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-877-5796

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-877-5796

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

MOE Rule:: B031
Effective Date:: 1 Apr 1991; AMC 1 AMSC G

MOE Rule:: BGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: BKZ1; AMC 1 AMSC G

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

National Security Agency (DGXK)
Effective Date:: 1 Apr 2006
Former MOE Rule:: DKZ2; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ
Supplementary Receivers:: SU; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJFJBHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Apr 2014

Lithuania (WI01)
Effective Date:: 1 Mar 2001

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Apr 2006

Slovakia (WS01)
Effective Date:: 1 Jul 2016

Bulgaria (WU01)
Effective Date:: 1 Oct 2002

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-877-5796

Part Number
Manufacturer
Status
MS21044N4: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
NASM21044-N4: 0NFB8 - Dialogic Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
F42NE-428: 27687 - Greer Stop Nut Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
F52NE048: 08928 - Abbott-Interfast Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
25-02-440: 3AB01 - Northern Airborne Technology Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
210298N4: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
F42NE0-48: 019L2 - Esna, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
F52NE048: 019L2 - Esna, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21044N4: K0668 - Leonardo Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
938.07.17.605: S4080 - Pilatus Aircraft Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
MS21044N4: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
2332351-N14: A274N - Scandinavian Manufacturing Scama Ab (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
906954: A274N - Scandinavian Manufacturing Scama Ab (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
870125: 19203 - Combat Capabilities Development (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
AN365-428H: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21044N4: 8K112 - Freundlich Supply Company, Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
30592: 13841 - Tiffin Parts, L.L.C. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
18D04: 12603 - Clark Equipment Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
F42NE048: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
F52NE048: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310008775796: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
851713-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
870125-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
908998K1: 06848 - Honeywell International Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
C4524-377-18: 60532 - Trane U.S. Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
MS51922-5: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS21044N4: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS20365-428: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
10370807: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0150622: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
525-628-90455: 99193 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
121FK4280: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
42NE-048: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
52-46-62: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
AN365-428: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
AN365-428A: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
91-32503-00: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS21044-N4: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
52N1610-048: 019L2 - Esna, Llc (Active); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 5310-00-877-5796

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Counterbore Diameter [AAWY]: 0.253 Inches Minimum Nut And 0.293 Inches Maximum Nut
Countersink Angle [CRSQ]: 88.0 Degrees Nominal Nut
Material [MATT]: Steel Comp 1006 Nut Or Steel Comp 1008 Nut Or Steel Comp 1009 Nut Or Steel Comp 1010 Nut Or Steel Comp 1015 Nut Or Steel Comp 1018 Nut Or Steel Comp 1035 Nut Or Steel Comp 11L37 Nut Or Steel Comp 1213 Nut Or Steel Comp 12L14 Nut
Nominal Thread Size [CQJX]: 0.250 Inches
Nut Height [ADEA]: 0.240 Inches Minimum And 0.360 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque With Nonmetallic Insert
Lubrication [ABAJ]: Soluble Lubricant
Width Across Flats [ASDB]: 0.430 Inches Minimum And 0.439 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Nut
Surface Treatment [SFTT]: Cadmium Nut And Chromate Nut
Temp Rating [AZKQ]: 250.0 Deg Fahrenheit Nominal
Thread Direction [AAJF]: Right-Hand
Thread Class [AAJD]: 3B
Thread Quantity Per Inch [CMLP]: 28
Thread Series [BZRR]: Unf

Weapon Systems (WSDC) 5310-00-877-5796

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-877-5796

Last Stock Position:: 1649500 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-877-5796

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Feb 2020: Department of the Army (DA); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-877-5796

5310-99-464-1164 5310-99-105-5300 5310-66-139-6386 5310-14-572-9383 5310-99-137-7019 5310-14-010-0678 5310-15-181-3119 5310-14-553-7547 5310-99-795-2566 5310-99-887-3853 5310-33-200-6844 5310-15-008-0903 5310-14-515-2624 5310-27-015-8542 5310-13-117-8192 5310-15-111-8076 5310-15-111-0803 5310-14-254-5116

Freight Information 5310-00-877-5796

5310-00-877-5796 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-877-5796 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-877-5796 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-877-5796 is not classified as a special type of cargo when transported by water. 5310-00-877-5796 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-877-5796

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5310-00-877-5796 13 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A722F7764: 06 Apr 2022; Subscribe; 448; Subscribe; Subscribe
SPE4A722F7764: 06 Apr 2022; Subscribe; 448; Subscribe; Subscribe
SPE4A718PA294: 21 May 2018; Subscribe; 64; Subscribe; Subscribe
SPE4A718P2619: 30 Nov 2017; Subscribe; 103; Subscribe; Subscribe
SPE4A718P0502: 13 Oct 2017; Subscribe; 15625; Subscribe; Subscribe
SPE4A717PB450P00001: 28 Jun 2017; Subscribe; 2104; Subscribe; Subscribe
SPE5EC17P0533P00004: 08 Jun 2017; Subscribe; 1054; Subscribe; Subscribe
SPE5EC16M0329: 08 Mar 2016; Subscribe; 10; Subscribe; Subscribe
SPE5EC15M0679: 30 Jun 2015; Subscribe; 45; Subscribe; Subscribe
SPE5EC15M0380: 20 Feb 2015; Subscribe; 67; Subscribe; Subscribe
SPE5EC14M0605: 06 Aug 2014; Subscribe; 4; Subscribe; Subscribe
SPE5EC14M0344: 29 Apr 2014; Subscribe; 12; Subscribe; Subscribe
SPM5EC13M0573: 20 Aug 2013; Subscribe; 1940; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-877-5796 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-877-5796

Related Documents 5310-00-877-5796 5+ Documents (More...)

Restrictions 5310-00-877-5796

Import and Export 5310-00-877-5796

End Users 5310-00-877-5796

Approved Sources 5310-00-877-5796

Datasheet 5310-00-877-5796

Weapon Systems (WSDC) 5310-00-877-5796

DLA Procurement Analysis 5310-00-877-5796

Management Data 5310-00-877-5796

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-877-5796

Freight Information 5310-00-877-5796

Packaging Data 5310-00-877-5796

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-877-5796 13 Records

Contracting Technical Data File (CTDF) 5310-00-877-5796 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
