5310-00-877-5795

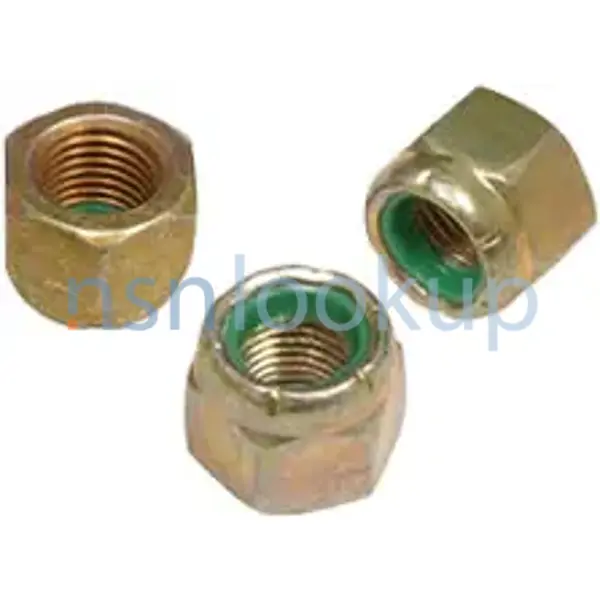

Hexagon Self-Locking Nut

5310008775795 008775795 901676 029NE080 2951304 29E-080 2M2570 MS51843-37 525-628-90459 MS21044-N8 MS21044N8 AN365-820A 853676-00 870129-00 18D08 88-159-84 2533408PC119 5310PL0890468 10082630

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
73

NATO Data Quality

ACTA Style A12 for 5310-00-877-5795 1/1 — NSN 5310-00-877-5795 (Identification) 1/1

Marketplace 5310-00-877-5795

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21044N8 NUT,SELF-LOCKING,HEXAGON 200 HD NS

Subscribe to View Vendor Details...

MS21044N8 NUT,SELF-LOCKING,HEXAGON 391 HD NS

Subscribe to View Vendor Details...

MS21044-N8 NUT,SELF-LOCKING,HEXAGON 2 HD NS

Subscribe to View Vendor Details...

MS21044N8 NUT,SELF-LOCKING,HEXAGON 330 HD NS

Subscribe to View Vendor Details...

MS21044N8 NUT 15 HD NS

MS21044-N8 NUT 3375 HD NS

Subscribe to View Vendor Details...

MS21044N8 NUT,SELF-LOCKING,HEXAGON 13103 HD NS

Subscribe to View Vendor Details...

MS21044-N8 NUT,SELF-LOCKING,HEXAGON 2871 HD NS

F52NE820 NUT,SELF-LOCKING,HEXAGON 2871 HD NS

Subscribe to View Vendor Details...

MS21044N8 NUT,SELF-LOCKING,HEXAGON 62 HD NS

Subscribe to View Vendor Details...

MS21044N8 NUT,SELF-LOCKING,HEXAGON 53 HD NS

Subscribe to View Vendor Details...

F52NE-080 NUT,SELF-LOCKING,HEXAGON 85 HD NS

AN365-820A NUT,SELF-LOCKING,HEXAGON 46 HD NS

Subscribe to View Vendor Details...

008775795.5310 NUT,SELF-LOCKING,HEXAGON 42 HD NS

Updated Every Day

5310-00-877-5795 RQST NE

Updated Every Day

5310-00-877-5795 RQST

Updated Every Day

5310-00-877-5795 RQST NE

Restrictions 5310-00-877-5795

5310-00-877-5795 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-877-5795

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-877-5795

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GGKEJVJFJBHXHSHDGT; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Feb 2008

Lithuania (WI01)
Effective Date:: 1 Mar 2001

Poland (WP01)
Effective Date:: 1 May 2005

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 May 2014

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-877-5795

Part Number
Manufacturer
Status
MS21044-N8: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
901676: A274N - Scandinavian Manufacturing Scama Ab (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
MS21044N8: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
AN365-820A: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5310008775795: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
853676-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
870129-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
18D08: 77237 - Dana Off Highway Products, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
88-159-84: 08786 - Taylor-Dunn Manufacturing, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
2533408PC119: 10001 - Navair And Navsea Managed Original (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
18D08: 12603 - Clark Equipment Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS21044-N8: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5310PL0890468: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10082630: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
029NE080: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2951304: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
29E-080: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2M2570: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS51843-37: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
525-628-90459: 99193 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS21044N8: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5310-00-877-5795

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Counterbore Diameter [AAWY]: 0.511 Inches Minimum Nut And 0.551 Inches Maximum Nut
Countersink Angle [CRSQ]: 88.0 Degrees Nominal Nut
End Item Identification [AGAV]: W/S:Support Equipment, B-52 Aircraft; Support Equipment, B-1 Aircraft; Elevators, Aircraft; Airborne Mobile Dir Air Spt Ctl (2Id), (02M Jul83)(An/Uyq-3A); Shipboard Material Handling Equipment (Mhe); Fire Pumps; L.P. Compressors; Close In Weapon System (Ciws-Phalanx); Aircraft (Ac-130H, Mc-130H, Ec-130E, Hc-130);Hiab Crane (Heavy Expanded Mobility Tactical Trucks)
Material [MATT]: Steel Comp 1006 Nut Or Steel Comp 1008 Nut Or Steel Comp 1009 Nut Or Steel Comp 1010 Nut Or Steel Comp 1015 Nut Or Steel Comp 1018 Nut Or Steel Comp 1035 Nut Or Steel Comp 11L37 Nut Or Steel Comp 1213 Nut Or Steel Comp 12L14 Nut
Nominal Thread Size [CQJX]: 0.500 Inches
Nut Height [ADEA]: 0.575 Inches Minimum And 0.610 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque With Nonmetallic Insert
Lubrication [ABAJ]: Soluble Lubricant
Width Across Flats [ASDB]: 0.741 Inches Minimum And 0.752 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Nut
Surface Treatment [SFTT]: Cadmium Nut And Chromate Nut
Temp Rating [AZKQ]: 250.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unf
Thread Quantity Per Inch [CMLP]: 20

Weapon Systems (WSDC) 5310-00-877-5795

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-877-5795

Last Stock Position:: 170400 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-877-5795

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-877-5795

5310-99-464-1164 5310-99-105-5300 5310-66-139-6386 5310-14-572-9383 5310-99-137-7019 5310-14-010-0678 5310-15-181-3119 5310-14-553-7547 5310-99-795-2566 5310-99-887-3853 5310-33-200-6844 5310-15-008-0903 5310-14-515-2624 5310-27-015-8542 5310-13-117-8192 5310-15-111-8076 5310-15-111-0803 5310-14-254-5116

Freight Information 5310-00-877-5795

5310-00-877-5795 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-877-5795 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-877-5795 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-877-5795 is not classified as a special type of cargo when transported by water. 5310-00-877-5795 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-877-5795

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-877-5795 5 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A522P7779: 22 Jun 2022; Subscribe; 147; Subscribe; Subscribe
SPE4A522V1861: 03 May 2022; Subscribe; 44; Subscribe; Subscribe
SPE4A522P6250: 19 Apr 2022; Subscribe; 29; Subscribe; Subscribe
SPE5E318V3524: 21 Feb 2018; Subscribe; 44; Subscribe; Subscribe
SPE5E317V4421: 07 Sep 2017; Subscribe; 942; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-877-5795 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-877-5795

Related Documents 5310-00-877-5795 5+ Documents (More...)

Restrictions 5310-00-877-5795

Import and Export 5310-00-877-5795

End Users 5310-00-877-5795

Approved Sources 5310-00-877-5795

Datasheet 5310-00-877-5795

Weapon Systems (WSDC) 5310-00-877-5795

DLA Procurement Analysis 5310-00-877-5795

Management Data 5310-00-877-5795

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-877-5795

Freight Information 5310-00-877-5795

Packaging Data 5310-00-877-5795

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-877-5795 5 Records

Contracting Technical Data File (CTDF) 5310-00-877-5795 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
