5310-00-864-9675
Wing Plain Nut
5310008649675 008649675 45958-506
A nut having wings designed for manual turning without driver or wrench. View more Wing Plain Nut
January 2023
9
Marketplace 5310-00-864-9675
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-864-9675 1+ Documents (More...)
/fsg-53/fsc-5310/us
United States (US) 4. 5310-00-864-9675 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5310-00-864-9675 RQST Updated Every Day 5310-00-864-9675 RQST NE Related Documents
Restrictions 5310-00-864-9675
5310-00-864-9675 is a Wing Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-864-9675
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-864-9675
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-864-9675
- Part Number
- Manufacturer
- Status
- 45958-506
- Manufacturer
- 94756 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-00-864-9675
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0

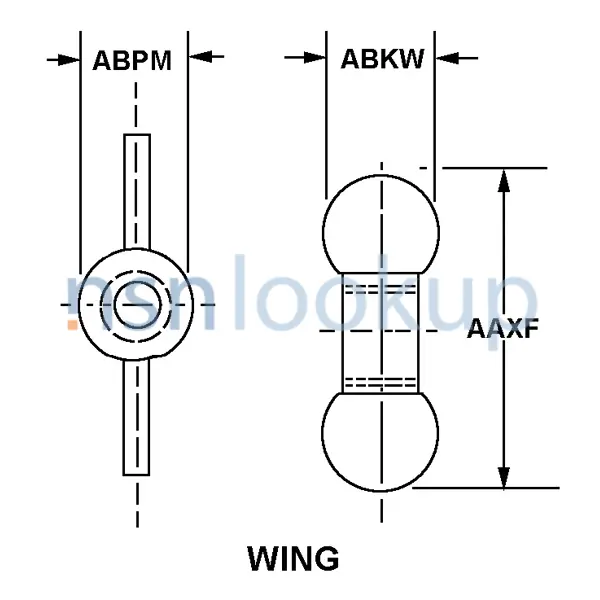

- Body Diameter [ABPM]
- 0.375 Nominal Inches
- Fabrication Method [AARN]
- Forged
- Material Document And Classification [MDCL]
- Mil-S-7720,Cond A Mil Spec Single Material Response Overall
- Material [MATT]
- Steel Comp 303 Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Nut Style [ACTA]
- Wing
- Overall Height [ABKW]
- 0.094 Inches Nominal
- Wing Spread Width [AAXF]
- 1.000 Inches Nominal
- Surface Treatment [SFTT]
- Enamel Overall
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series [BZRR]
- Unf
- Thread Quantity Per Inch [CMLP]
- 28
Similar Supply Items to 5310-00-864-9675
Freight Information 5310-00-864-9675
5310-00-864-9675 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-864-9675 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5310-00-864-9675 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-864-9675 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-864-9675 is not classified as a special type of cargo when transported by water. 5310-00-864-9675 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
