5310-00-825-9484
Hexagon Castellated Plain Nut
5310008259484 008259484 22FH-624 2016151 ITEM 5 22FH624
A nut having 6 flat sides, flat on the bottom and having a slotted cylindrical or dome shaped upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, SLOTTED, HEXAGON. View more Hexagon Castellated Plain Nut
November 2023
36
Marketplace 5310-00-825-9484
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-825-9484 5+ Documents (More...)

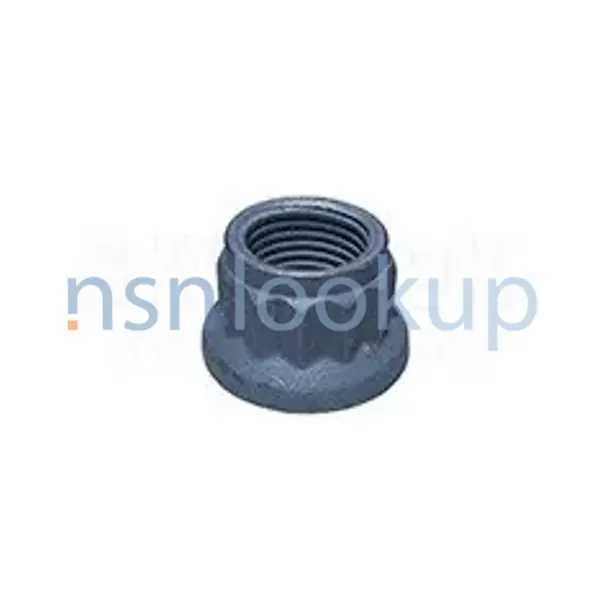

Photo 1/2 NSN 5310-00-825-9484 (Identification) 2/2 - - 1.
NS Request Quotation Updated Every Day 5310-00-825-9484 RQST NE Updated Every Day 5310-00-825-9484 RQST
/fsg-53/fsc-5310/us
AN363-624 NUT,SELF-LOCKING,HEXAGON 338 EA NS Request Quotation Subscribe to View Vendor Details... 22FH624
,HEXAGON 73 EA NS Request Quotation 286A1PC20 NUT,SELF-LOCKING,HEXAGON 73 EA NS Request Quotation 22FH624
/fsg-53/fsc-5310/us
AN363-624 NUT,SELF-LOCKING,HEXAGON 338 EA NS Request Quotation Subscribe to View Vendor Details... 22FH624
SELF-LOCKING,HEXAGON 73 EA NS Request Quotation 8537476 NUT,SELF-LOCKING,HEXAGON 73 EA NS Request Quotation 22FH624
/fsg-53/fsc-5310/us
AN363-624 NUT,SELF-LOCKING,HEXAGON 338 EA NS Request Quotation Subscribe to View Vendor Details... 22FH624
HEXAGON 73 EA NS Request Quotation AN363-624CADPLD NUT,SELF-LOCKING,HEXAGON 73 EA NS Request Quotation 22FH624
Restrictions 5310-00-825-9484
5310-00-825-9484 is a Hexagon Castellated Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-825-9484
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-825-9484
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Mar 2017
- Canada (ZC01)
- Effective Date:
- 1 Oct 2012
- New Zealand (ZE01)
- Effective Date:
- 1 Dec 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Norway (ZT01)
- Effective Date:
- 1 Jan 1994
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5310-00-825-9484
- Part Number
- Manufacturer
- Status
- 22FH-624
- Manufacturer
- 56878 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- 2016151 ITEM 5
- 56878 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 22FH624
- 25500 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 22FH624
- 73842 - Goodyear Tire And Rubber Co The (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2016151 ITEM 5
- 30003 - Naval Air Systems Command Managed (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5310-00-825-9484
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Bearing Surface Type [CRTM]
- Chamfered
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Nut Height [ADEA]
- 0.453 Inches Minimum And 0.462 Inches Maximum
- Nut Style [ACTA]
- Castellated, Hexagon
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series [BZRR]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 24
- Width Across Flats [ASDB]
- 0.553 Inches Minimum And 0.564 Inches Maximum
Weapon Systems (WSDC) 5310-00-825-9484
